Misumi: Single Axis Actuators LX4510-S1-MA4560-490
Misumi: Single Axis Actuators #LX4510-S1-MA4560-490

Alternate View

Price : $3,720.00


Availability: 8-12 weeks lead time
Order #: LX4510-S1-MA4560-490
Qty:

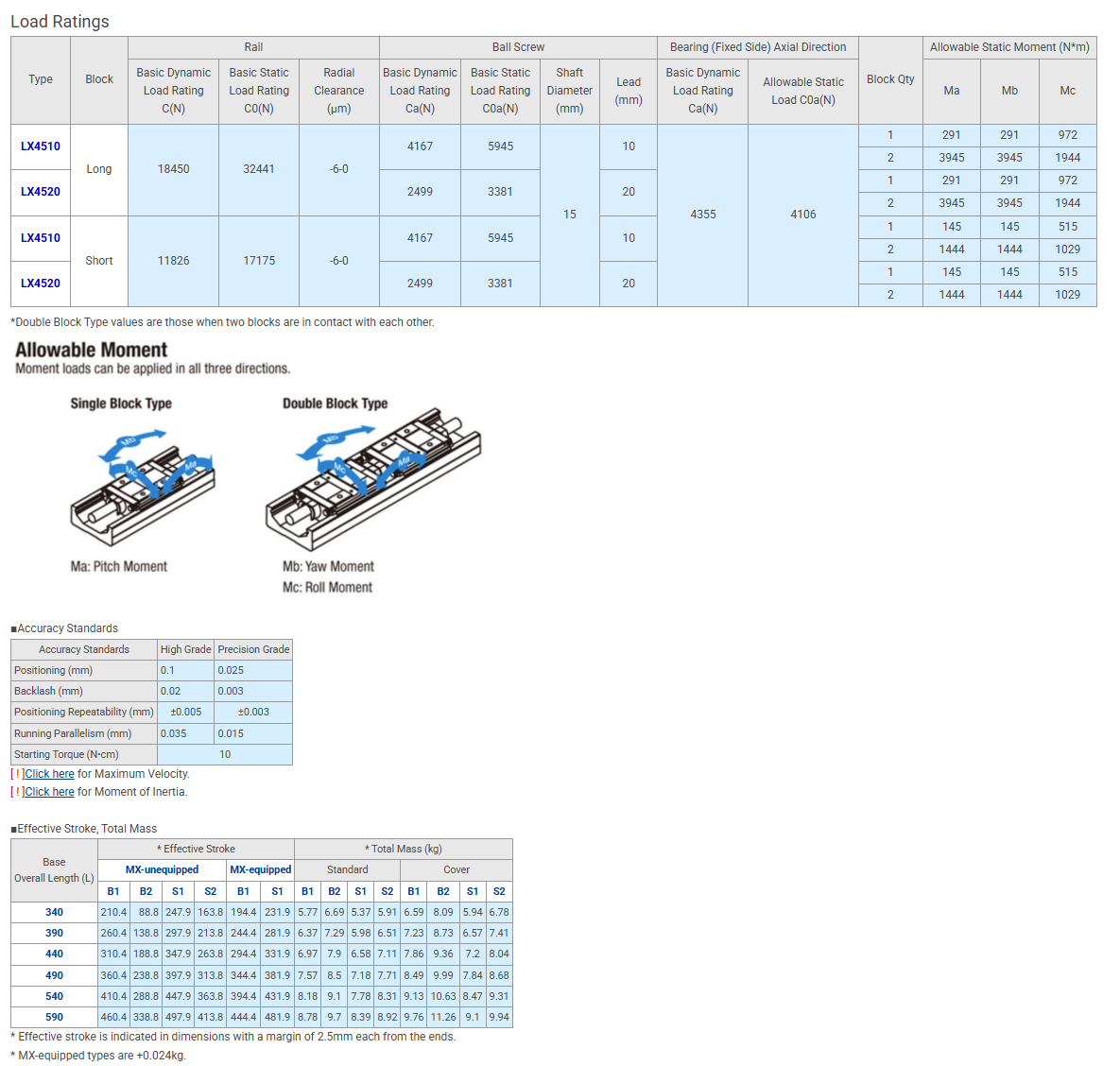

Description Ordering Information Specifications and Drawings


Misumi: Single Axis Actuators #LX4510-S1-MA4560-490

Specifications:

  • Main Body, Peripheral Components

  • Nominal (Height): 45

  • Precision: High Grade / Precision Grade

  • Table: Long 1 pc. / Long 2 pcs. / Short 1 pc. / Short 2 pcs

  • Lead(mm): 10～20

  • Motor Mounting Orientation: Straight

  • Cover: Not Provided / Included

  • Grease: Standard / Low Particle Generation

  • With or w/o Motors: Not Provided (Installed by customers)

  • With or w/o Lubricant Unit: Not Provided

  • Ball Screw Shaft Dia.(φ): 15

  • Table Length L1(mm): 43.5～81

  • Table Width W1(mm): 59.5～104
