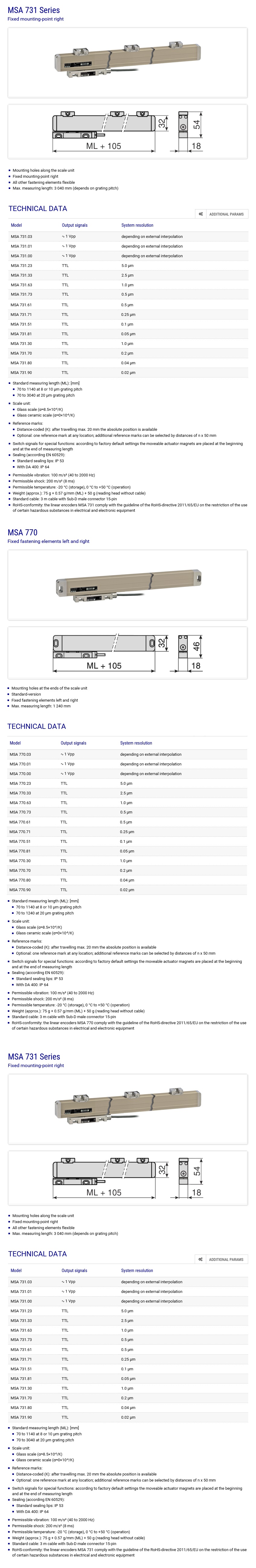

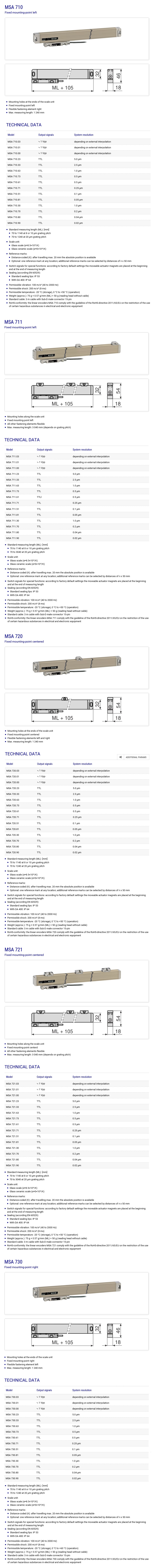

Description Specifications and Drawings


RSF ELEKTRONIK: Sealed Linear Encoders (MSA 7xx Series)

Sealed Linear Encoders with Fixed Connecting Cable

Sealed linear encoders are particularly predestined for applications in automation and production technology. They are ideally suited for metrology, printing and robotics, especially in applications where protection for the scale and reading head is required.


Fields of Application:

Enclosed Linear Encoders are particularly suitable for use in situations which demand a high level of precision and efficiency despite harsh ambient conditions including coolant and lubricant ingress or soiling by shavings, filings or dust.


Performance Characteristics:

  • Compact measuring unit with optical scanning

  • Scale and reading head are protected by aluminum housing and sealing lips from soiling

  • Simple assembly

  • Patented coupling system between scanning carriage and scanning head allows greater assembly tolerances - without compromising precision

  • Reproducible thermal performance

  • Detachable connection cable


Typical Applications:

  • Machine tools: Turning, milling and grinding machines, erosion machines, press brakes

  • Electronics manufacturing: Circuit board drilling and milling, screen-printing systems

  • Measurement technology: Microscope, measuring stage, presetting device

  • Linear units and drives

  • Rapid prototyping


Features:

  • System resolution: 0.02-5.0 µm

  • Small cross-sectional profile

  • Scale unit: glass, glass ceramic

  • Grating pitch: 8, 10, 20 µm

  • Standard with fixed connecting cable

  • Defined thermal behavior

  • Measuring length: up to 3040 mm

  • Various mechanical versions


Model No.: MSA 710.00, MSA 710.01, MSA 710.03, MSA 710.23, MSA 710.30, MSA 710.33, MSA 710.51, MSA 710.61, MSA 710.63, MSA 710.70, MSA 710.71, MSA 710.73, MSA 710.80, MSA 710.81, MSA 710.90, MSA 711.00, MSA 711.01, MSA 711.03, MSA 711.23, MSA 711.30, MSA 711.33, MSA 711.51, MSA 711.61, MSA 711.63, MSA 711.70, MSA 711.71, MSA 711.73, MSA 711.80, MSA 711.81, MSA 711.90, MSA 720.00, MSA 720.01, MSA 720.03, MSA 720.23, MSA 720.30, MSA 720.33, MSA 720.51, MSA 720.61, MSA 720.63, MSA 720.70, MSA 720.71, MSA 720.73, MSA 720.80, MSA 720.81, MSA 720.90, MSA 721.00, MSA 721.01, MSA 721.03, MSA 721.30, MSA 721.33, MSA 721.51, MSA 721.61, MSA 721.63, MSA 721.70, MSA 721.71, MSA 721.73, MSA 721.80, MSA 721.81, MSA 721.90, MSA 730.00, MSA 730.01, MSA 730.03, MSA 730.23, MSA 730.30, MSA 730.33, MSA 730.51, MSA 730.61, MSA 730.63, MSA 730.70, MSA 730.71, MSA 730.73, MSA 730.80, MSA 730.81, MSA 730.90, MSA 731.00, MSA 731.01, MSA 731.03, MSA 731.23, MSA 731.30, MSA 731.33, MSA 731.51, MSA 731.61, MSA 731.63, MSA 731.70, MSA 731.71, MSA 731.73, MSA 731.80, MSA 731.81, MSA 731.90, MSA 770.00, MSA 770.01, MSA 770.03, MSA 770.23, MSA 770.30, MSA 770.33, MSA 770.51, MSA 770.61, MSA 770.63, MSA 770.70, MSA 770.71, MSA 770.73, MSA 770.80, MSA 770.81, MSA 770.90, MSA 771.00, MSA 771.01, MSA 771.03, MSA 771.23, MSA 771.30, MSA 771.33, MSA 771.51, MSA 771.61, MSA 771.63, MSA 771.70, MSA 771.71, MSA 771.73, MSA 771.80, MSA 771.81, MSA 771.90
