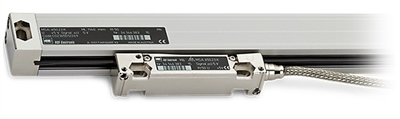

RSF ELEKTRONIK: Sealed Linear Encoders (MSA 65X Series)

Sealed Linear Encoders for Retrofitting Machine Tools
Sealed linear encoders are particularly predestined for applications in automation and production technology. They are ideally suited for metrology, printing and robotics, especially in applications where protection for the scale and reading head is required.


Features:

  • System resolution: 5.0-10.0 µm

  • Small cross-sectional profile

  • Retrofitting of machine tools

  • Scale unit: glass

  • Grating pitch: 20, 40 µm


MSA 650 Series

  • Max. measuring length: 1740 mm

  • Mounting holes on the extrusion ends

  • One additional center mounting hole for longer measuring lengths

  • Reference marks


MSA 651 Series

  • Max. measuring length: 2240 mm

  • Mounting via holes in the extrusion for improved vibration behavior

  • Reference marks


Model No.: MSA 650.23, MSA 650.24, MSA 650.63, MSA 650.64, MSA 650.73, MSA 651.23, MSA 651.24, MSA 651.63, MSA 651.64, MSA 651.73
