Delta: DMCNET Masters (MP1 Series)
Delta: DMCNET Masters (MP1 Series)



Call for Pricing

Price Quote Form


Order #: MP1-A10D
.

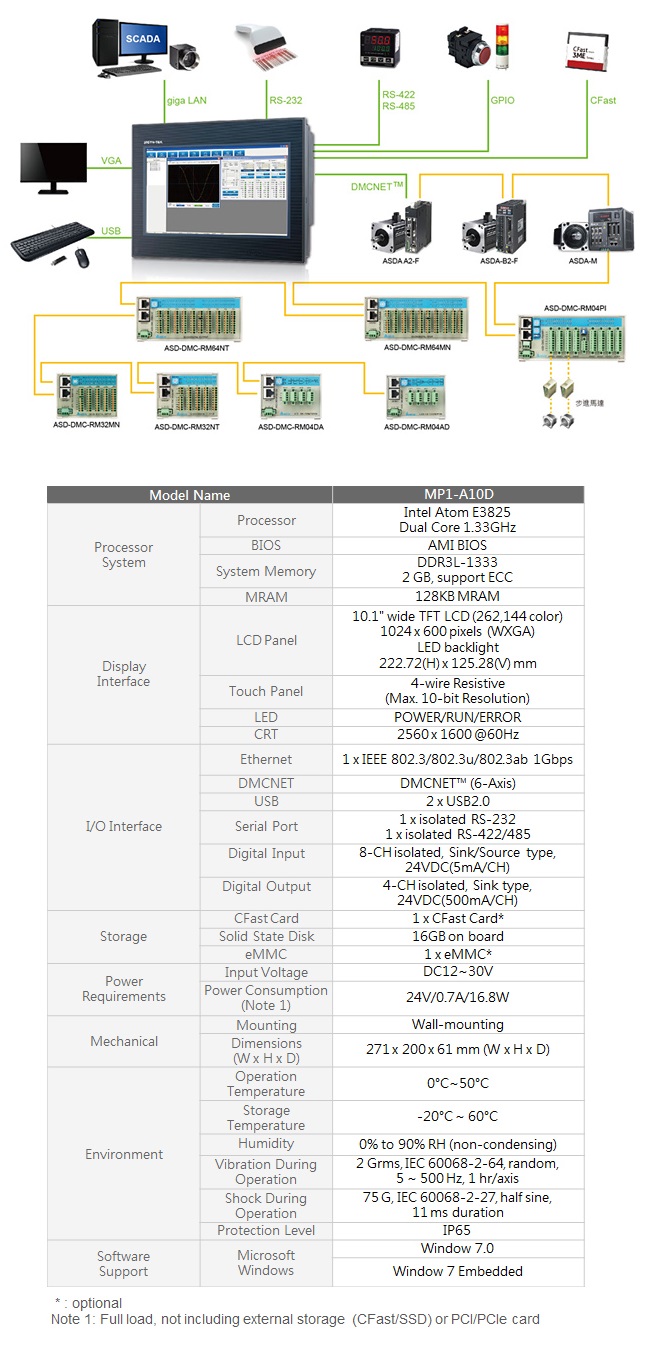

Description Specifications and Drawings


Delta: DMCNET Masters - Motion Control Panel PAC (MP1 Series)

DMCNET stands for Delta Motion Control Network. Delta's DMCNET is a high speed and real time communication system which supports the CANopen standard CiA 402, and provides a variety of motion control functions. DMCNET is the best integrated platform capable of providing high speed, high stability and high reliability for multi-axis and synchronous motion control in a wide range of industrial applications. It is also the ultimate solution that provides effortless wiring, enhanced stability, flexible extension ability and versatile operation for industry upgrading and adding value to products.

Motion Control Panel PAC

The MP1 Series provides touch screen and also supports Windows CE, Windows XP Embedded and Windows 7 Embedded operating systems. It also supports various software libraries for user selection.

Features:

  • Cable-less and fanless design for low power consumption

  • CFast and SSD Storage Interface

  • Built-in DMCNET motion control card functions

  • Connects to DMCNET / EtherCAT Slaves via PCI interfaces

  • Robust hardware with highly secured programming protection

  • Supports real-time RTX Runtime and non-real-time Windows CE 7, Windows XP/7 Embedded OS

  • Integrated motion control platform with domain know-how and literature

  • 16:9 widescreen adds viewing areas to display more information for more flexible operation
