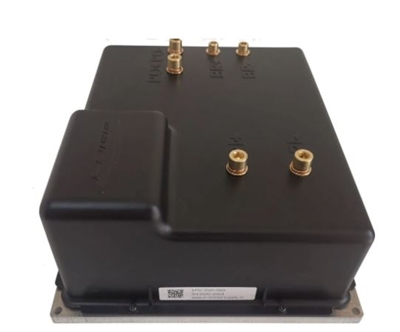

LUGE Circuit protector for AGV servo system LUGE-EPSPB-250-60
LUGE Circuit protector for AGV servo system LUGE-EPSPB-250-60



Price : $1,212.00


Availability: Usually Ships in 3 to 5 Business Days
Order #: LUGE-EPSPB-250-60
Qty:

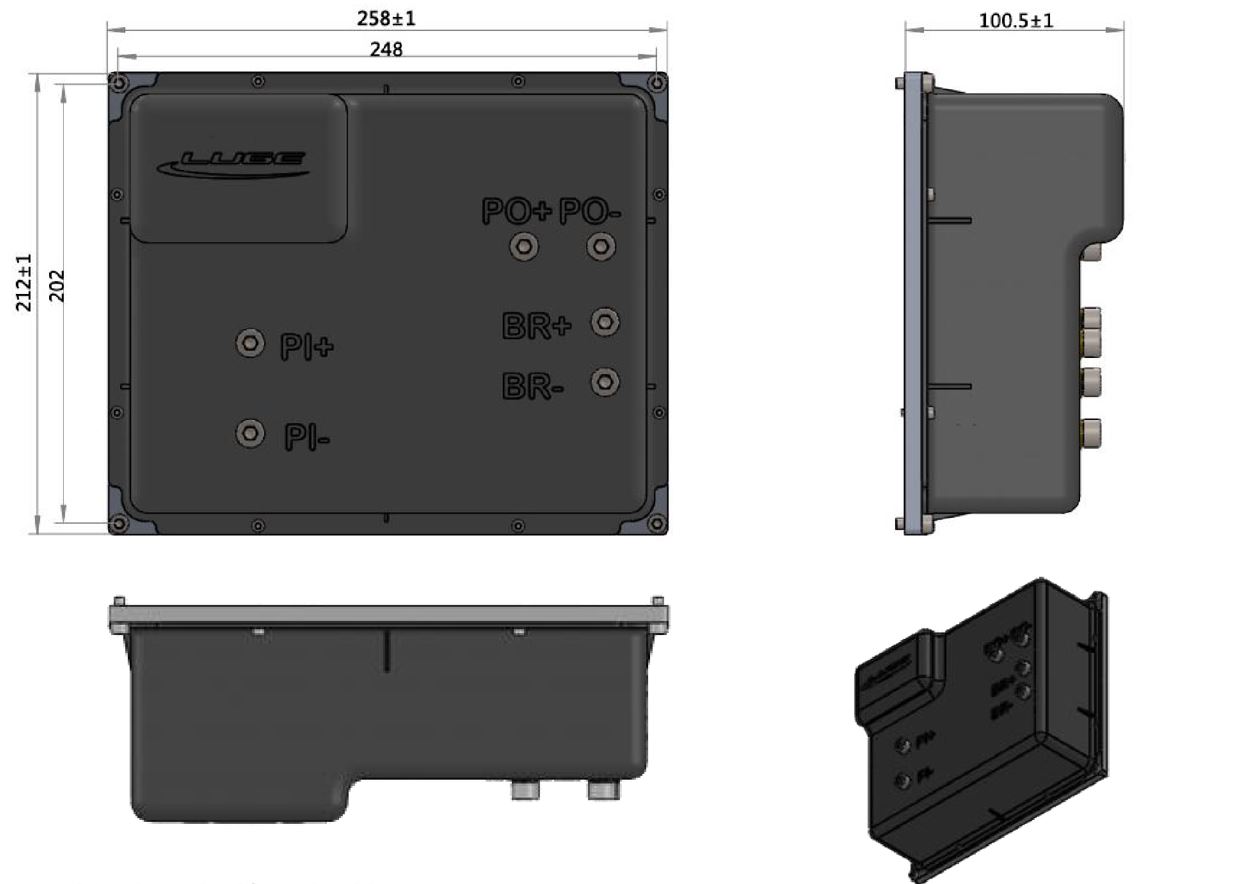

Description Specifications and Drawings

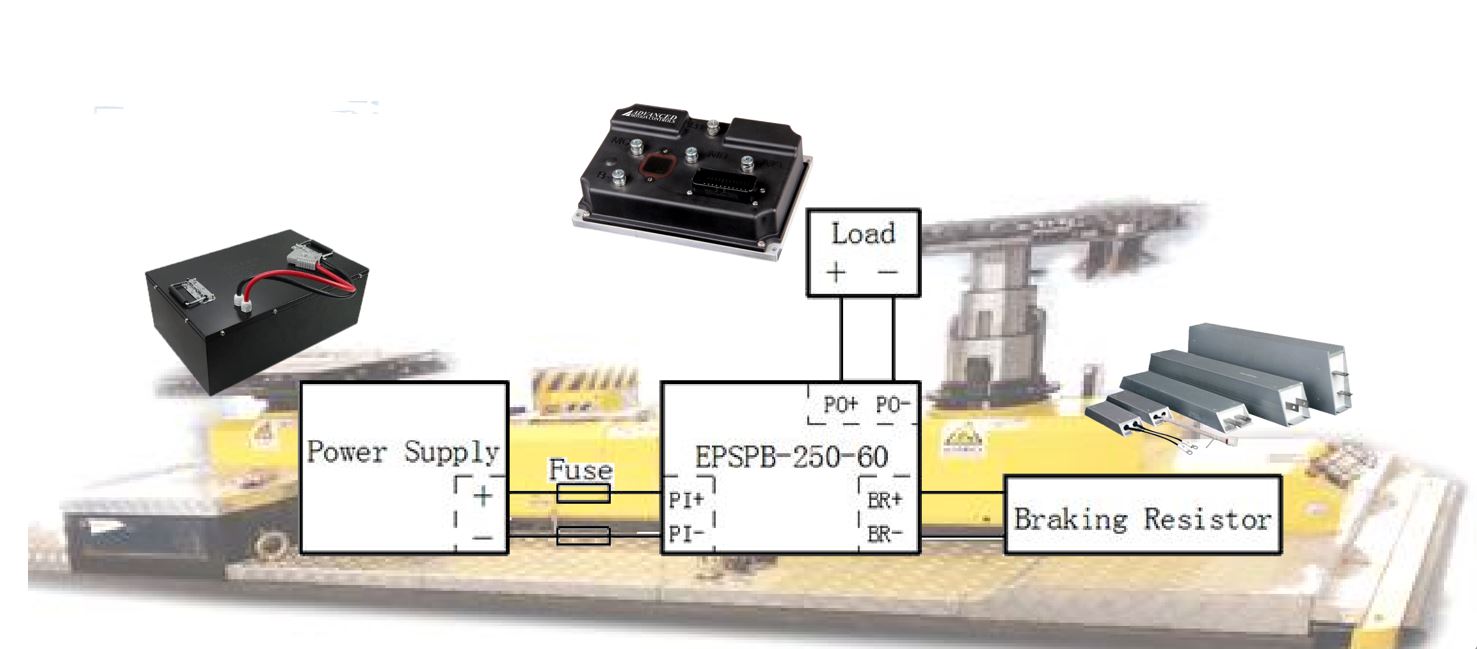

LUGE-EPSPB series circuit protector is designed and developed by E-MOTION AI Vehicle Division, and is specially used for the circuit protection module of DC power supply system,such as AGV,RGV,ect.
This module has two major functions:

1)Prevent the impact of surge voltage and current on the back-end equipment at the moment of power-on and damage to the DC power supply and battery.

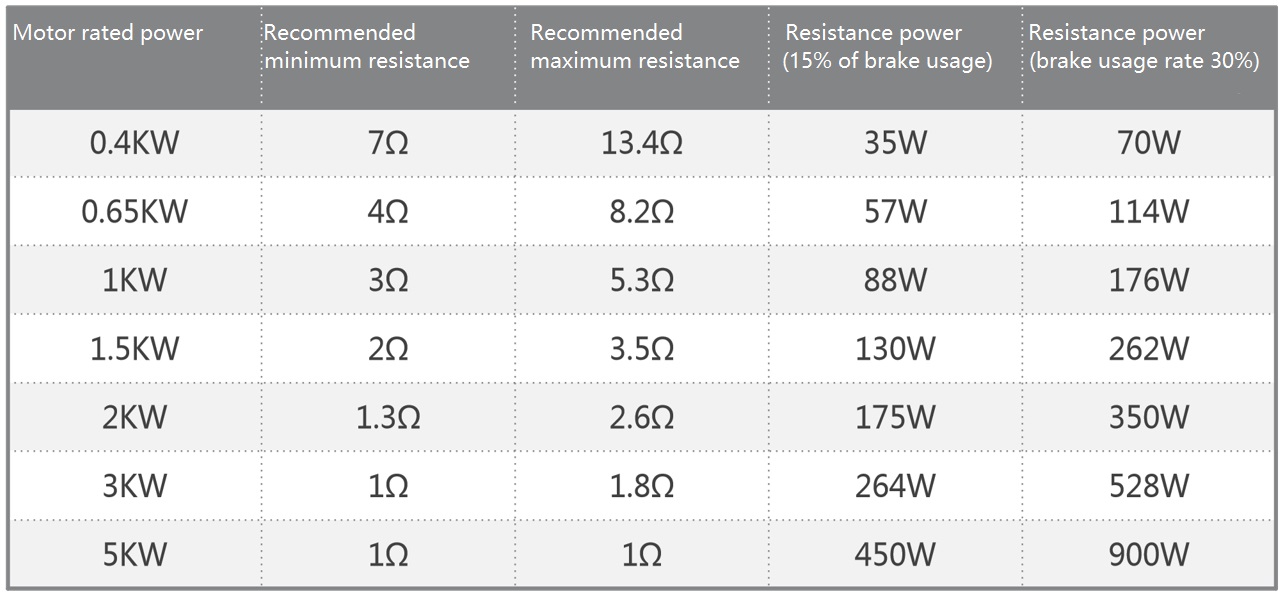

2)Absorb the momentary energy regenerated by the motor during high deceleration or emergency stop operation of consumer equipment under large inertia load. (If this energy is not recovered and consumed in time, it will cause the DC bus voltage to rise instantaneously and destroy the electrical equipment or even the DC power supply or battery in the system.)


Main circuit continuous current

Main circuit peak current

Main circuit closing time

Applicable voltage system

Bleeding circuit opening

voltage Internal bus capacitance

150 A

250 A(2min)

< 2s

48 VDC

56 VDC

4000 uF
