Komotek :30W 220VAC Brushless Motor Without Brake,With resolver,KANZ-A3BR4N2
Komotek :30W 220VAC Brushless Motor Without Brake,With resolver,KANZ-A3BR4N2



Price : $680.00


Availability: Usually Ships in 4 to 6 Weeks
Order #: KANZ-A3BR4N2
Qty:

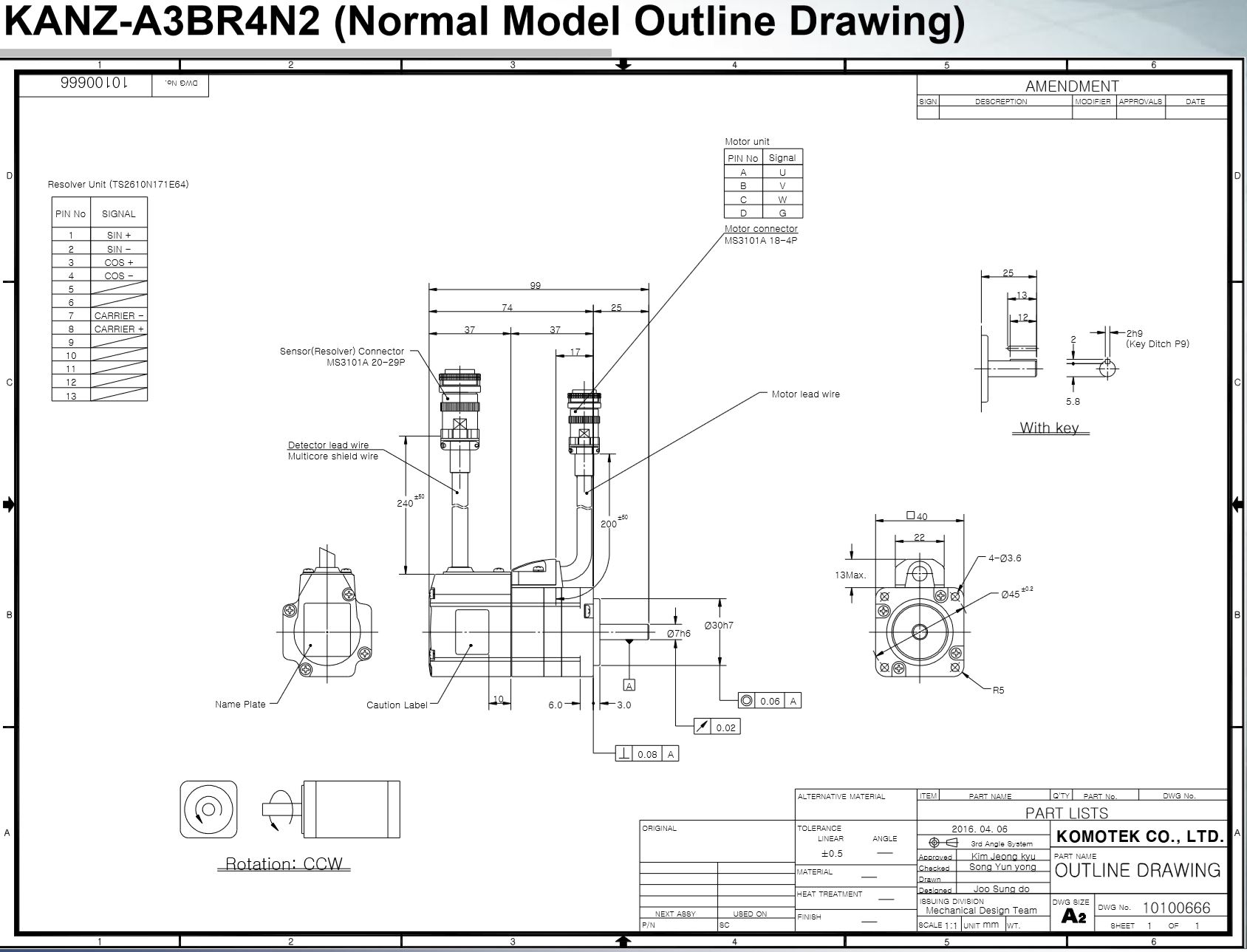

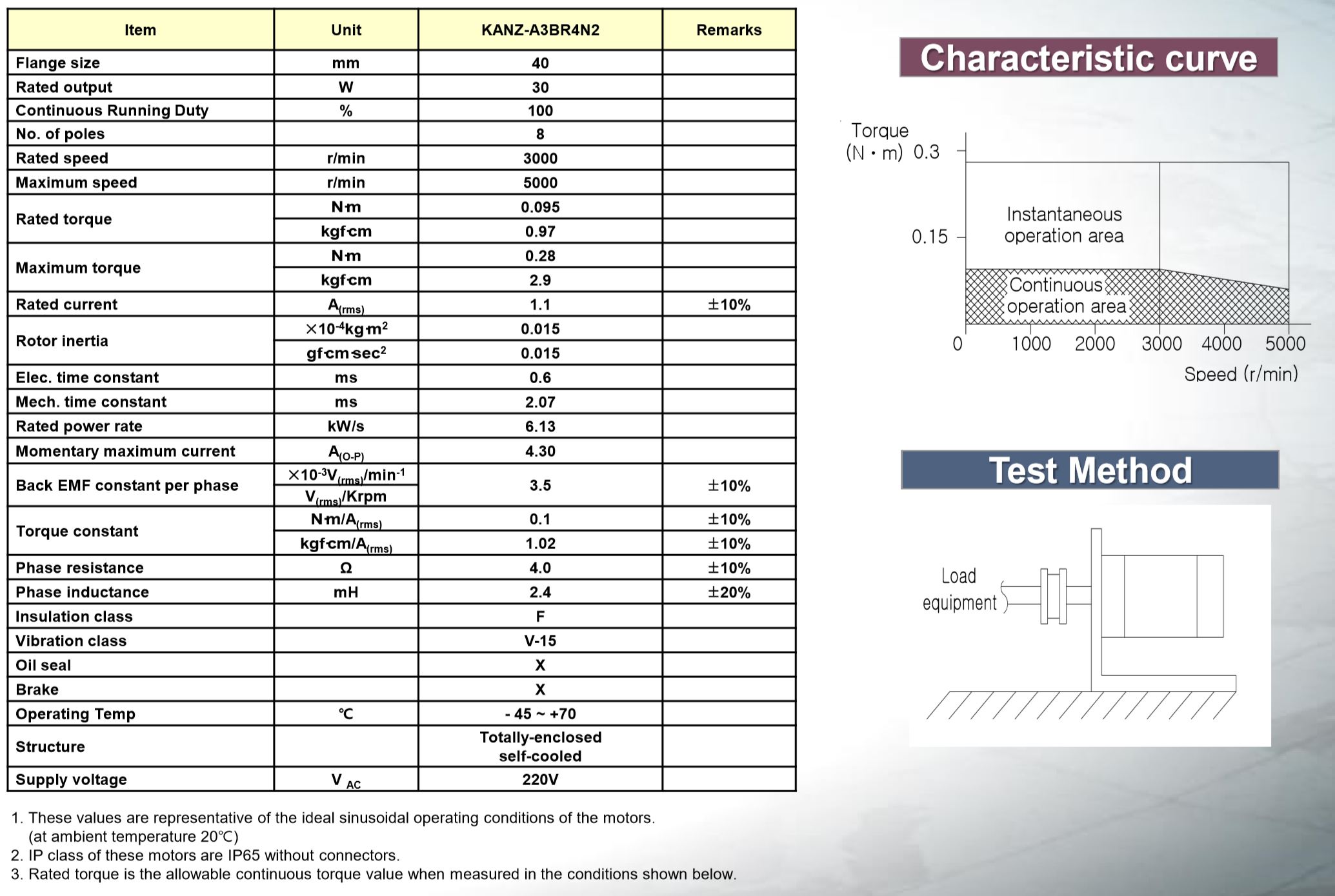

Description Ordering Information Specifications and Drawings

E-Motionsupply is a professional servo motor supplier. Our low-voltage servo motors are produced in different countries and regions. Their quality and longevity are products that have been verified through long-term use. We accept customized orders to provide our customers with products that better suit their application needs.
KANZ Series can be applied to diverse areas of precision automation machinery such as various industrial robot systems and semiconductor manufacturing equipments.Ultra compactness, light servomotor,Excellent product life cycle with high reliability Able to
manufacture products that satisfies various specification needs of customers.Main application is Robots, Semiconductor manufacturing instruments, Chip mounters, Inserters, XY tables.

Motor Model:KANZ-A3BR4N2
Motor Type：DC Brushless Servo Motor without Brake
Motor Voltage：220VAC
Motor Poles:8
Motor Rated Output:30W
Motor Flange Size：40mm
Motor Rated Phase Current：1.1A
Motor Peak Phase Current:4.3A
Motor Rated Torque：0.095Nm
Motor Maximum Torque:0.28Nm
Motor Rated Speed:3000RPM
Motor Maximum Speed:5000RPM
Rotor inertia：0.015 x10-4kg·m2
Motor Feedback:Resolver

Motor Model:KANZ-A3BR4B2
Motor Type：DC Brushless Servo Motor with Brake
Motor Voltage：220VAC
Motor Poles:8
Motor Rated Output:30W
Motor Flange Size：40mm
Motor Rated Phase Current：1.1A
Motor Peak Phase Current:4.3A
Motor Rated Torque：0.095Nm
Motor Maximum Torque:0.28Nm
Motor Rated Speed:3000RPM
Motor Maximum Speed:5000RPM
Rotor inertia：0.021 x10-4kg·m2
Motor Feedback:Resolver
