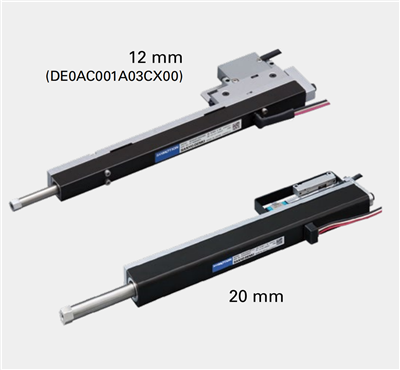

Sanyo Denki: Cylinder Linear Servo Motor DE0AC001A03CX00

SANMOTION R Advanced Model, Rated Thrust 5.1N, Motor Width 12mm, Power Supply 48 VDC

Highly accurate AC servo systems consisting of compact, high-torque servo motors and servo amplifiers that reduce positioning settling time. With highly responsive command following and vibration controls to minimize machine stand resonance, they contribute to shortened takt time. They are ideal for applications where high precision movement is required, such as semiconductor manufacturing equipment, chip mounters, robots, and machine tools.

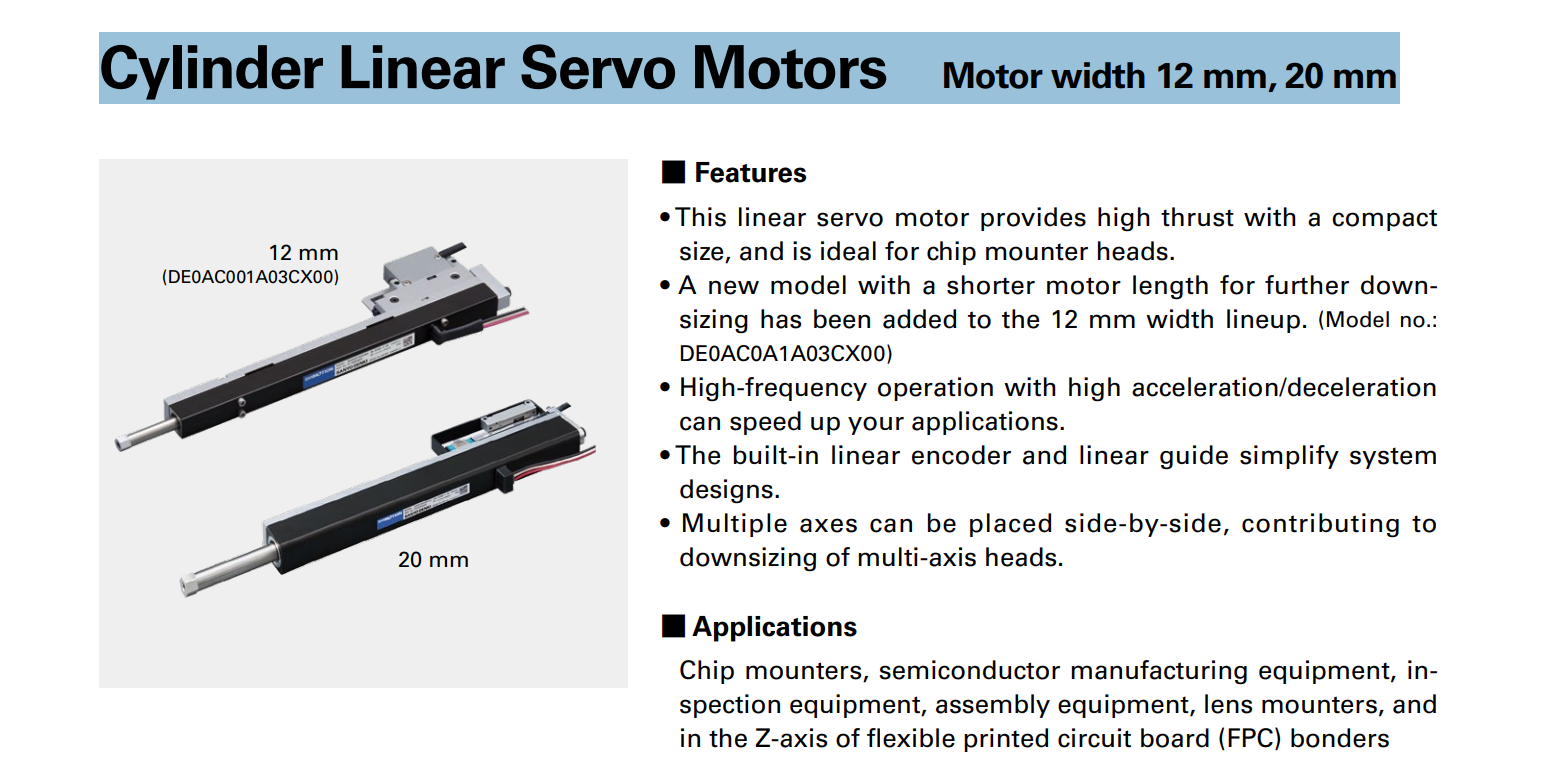

Features:
This linear servo motor provides high thrust with a compact size, and is ideal for chip mounter heads.

• A new model with a shorter motor length for further downsizing has been added to the 12 mm width lineup. (Model no.: DE0AC0A1A03CX00)

• High-frequency operation with high acceleration/decelerationcan speed up your applications.

• The built-in linear encoder and linear guide simplify system designs.

• Multiple axes can be placed side-by-side, contributing to downsizing of multi-axis heads.

■ Applications

Chip mounters, semiconductor manufacturing equipment, inspection equipment, assembly equipment, lens mounters, and in the Z-axis of flexible printed circuit board (FPC) bonders.
