Komotek:100W 220VAC Pancake Brushless Motor Without Brake,KANQ-01BF1N2
Komotek:100W 220VAC Pancake Brushless Motor Without Brake,KANQ-01BF1N2



Price : $415.00


Availability: Usually Ships in 4 to 6 Weeks
Order #: KANQ-01BF1N2
Qty:

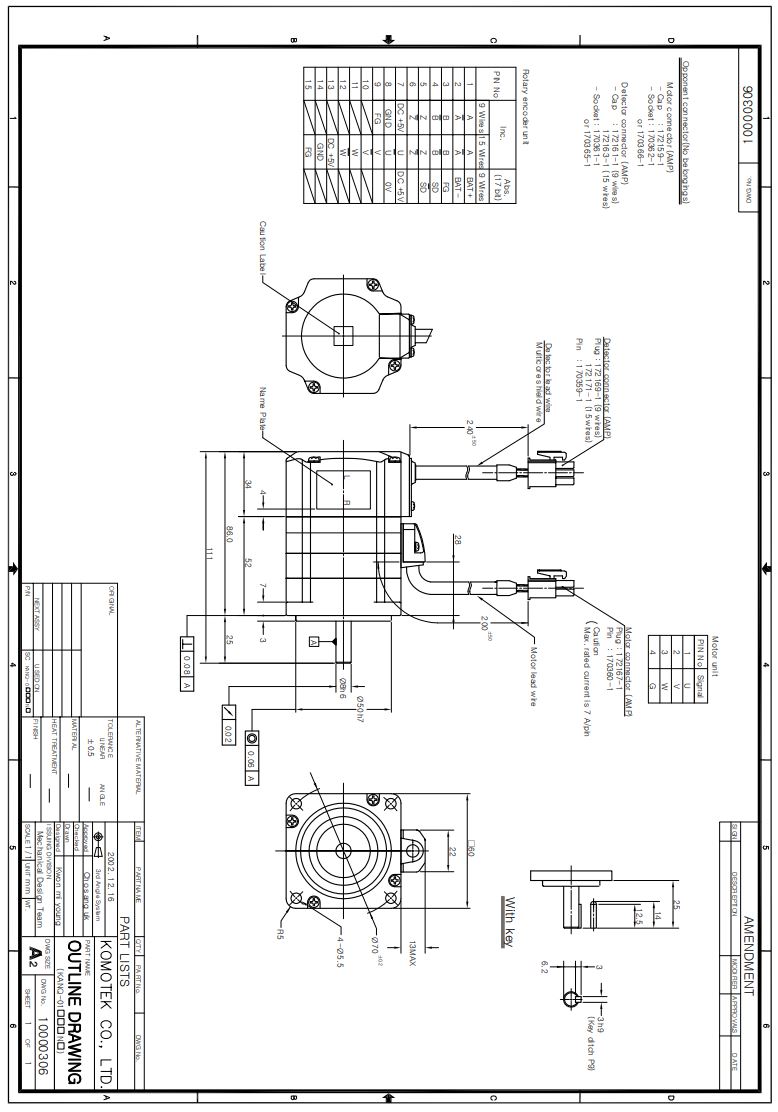

Description Ordering Information Specifications and Drawings

E-Motionsupply is a professional servo motor supplier. Our low-voltage servo motors are produced in different countries and regions. Their quality and longevity are products that have been verified through long-term use. We accept customized orders to provide our customers with products that better suit their application needs.
KANZ Series can be applied to diverse areas of precision automation machinery such as various industrial robot systems and semiconductor manufacturing equipments.

Motor Model:KANQ-01BF1N2
Motor Type：DC Brushless Servo Motor without Brake
Motor Voltage：220VAC
Motor Poles:8
Motor Rated Output:100W
Motor Flange Size：60mm
Motor Rated Phase Current：1A
Motor Peak Phase Current:4.3A
Motor Rated Torque：0.32Nm
Motor Maximum Torque:0.95Nm
Motor Rated Speed:3000RPM
Motor Maximum Speed:5000RPM
Rotor inertia：0.11 x10-4kg·m2
Motor Feedback:2500 lines encoder

Motor Model:KANQ-01BF1B2
Motor Type：DC Brushless Servo Motor with Brake
Motor Voltage：220VAC
Motor Poles:8
Motor Rated Output:100W
Motor Flange Size：60mm
Motor Rated Phase Current：1A
Motor Peak Phase Current:4.3A
Motor Rated Torque：0.32Nm
Motor Maximum Torque:0.95Nm
Motor Rated Speed:3000RPM
Motor Maximum Speed:5000RPM
Rotor inertia：0.14 x10-4kg·m2
Motor Feedback:2500 lines encoder
