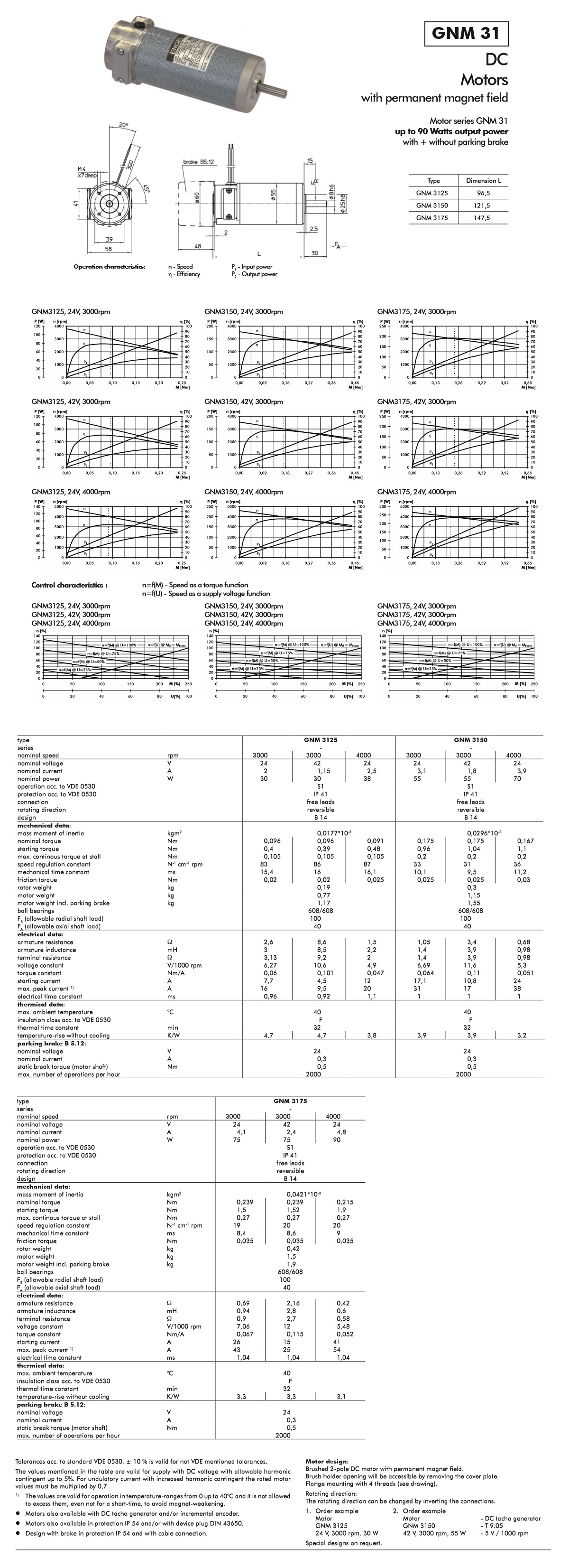

Description Specifications and Drawings


Faulhaber: High Power PMDC Motors (GNM 31 Series)

PMDC Motors are robustly engineered with a brushed 2-pole DC motors and permanent magnetic fields. Their industrial design, high variability and magnetic field allows for maximum efficiency.

GNM 3125 Series

Specifications:

  • Nominal Voltage (VDC): 24/42

  • Rated Current (ADC): 2

  • Nominal Torque (mNm): 0.096

  • Number of Revs: 3000/4000

  • Nominal Power up to (Watts): 30

  • Outer Diameter (mm): 55

GNM 3150 Series

Specifications:

  • Nominal Voltage (VDC): 24/42

  • Rated Current (ADC): 3.1

  • Nominal Torque (mNm): 0.175

  • Number of Revs: 3000/4000

  • Nominal Power up to (Watts): 55

  • Outer Diameter (mm): 55

GNM 3175 Series

Specifications:

  • Nominal Voltage (VDC): 24/42

  • Rated Current (ADC): 4.1

  • Nominal Torque (mNm): 0.239

  • Number of Revs: 3000/4000

  • Nominal Power up to (Watts): 75

  • Outer Diameter (mm): 55
