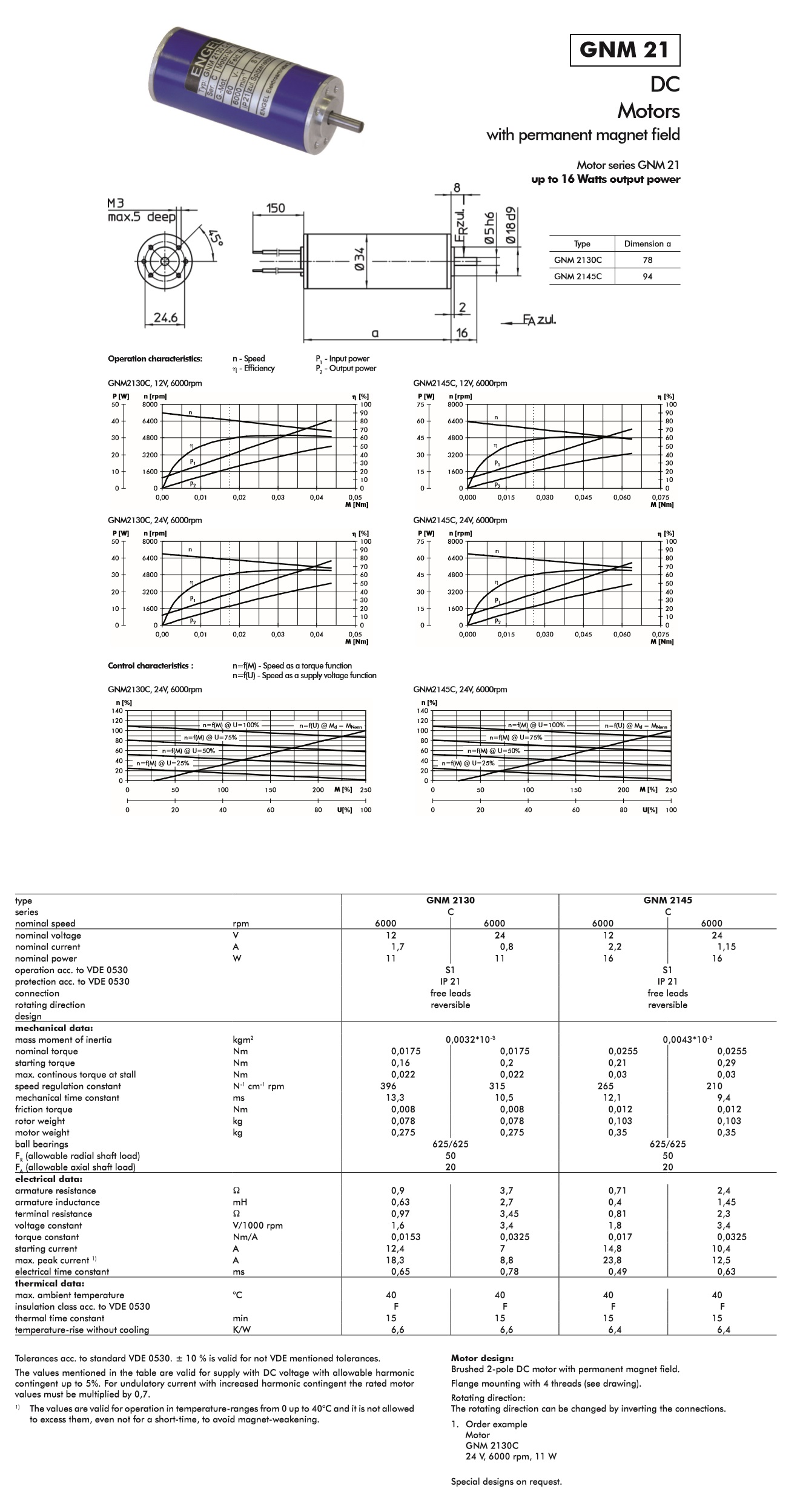

Faulhaber: High Power PMDC Motors (GNM 21 Series)
Faulhaber: High Power PMDC Motors (GNM 21 Series)



Call for Pricing

Price Quote Form


Order #: GNM-21


Model Number/Code*:

.


Description Specifications and Drawings


Faulhaber: High Power PMDC Motors (GNM 21 Series)

PMDC Motors are robustly engineered with a brushed 2-pole DC motors and permanent magnetic fields. Their industrial design, high variability and magnetic field allows for maximum efficiency.

GNM 2130C Series

Specifications:

  • Nominal Voltage (VDC): 12/24

  • Rated Current (ADC): 1.7

  • Nominal Torque (mNm): 0.0175

  • Number of Revs: 6000

  • Nominal Power up to (Watts): 11

  • Outer Diameter (mm): 34

GNM 2145C Series

Specifications:

  • Nominal Voltage (VDC): 12/24

  • Rated Current (ADC): 2.2

  • Nominal Torque (mNm): 0.0255

  • Number of Revs: 6000

  • Nominal Power up to (Watts): 16

  • Outer Diameter (mm): 34
