FAULHABER: Brakes for DC Motors (FSB 28, FSB 30 Series)
FAULHABER: Brakes for DC Motors (FSB 28, FSB 30 Series)



Call for Pricing

Price Quote Form


Order #: FSB


Model Number/Code*:


.

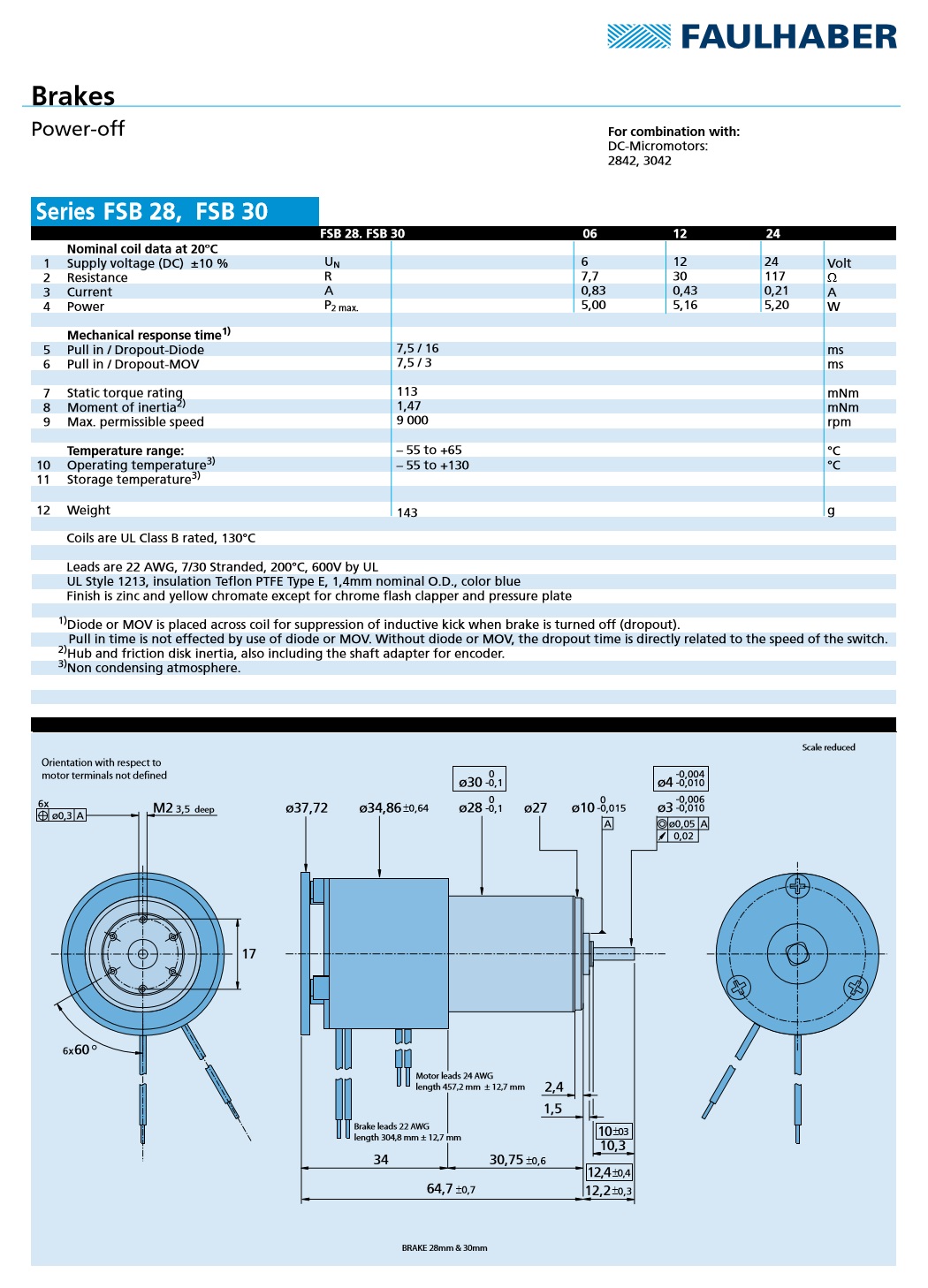

Description Specifications and Drawings


FAULHABER: Brakes for DC Motors (FSB 28, FSB 30 Series)

FAULHABER brakes work as an electromagnetically released system; brakes are based on permanent magnets with a single face surface coupling.

Specifications:

  • Static Torque Rating (mNm): 113

  • Diameter (mm): 34

  • Voltage Types: 6, 12, 24

Model No.: FSB 28, FSB 30
