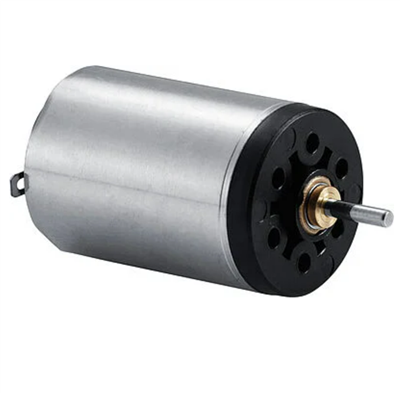

FAULHABER: DC-Micromotors Combination: 1624E024S + 16/5 900:1
FAULHABER: DC-Micromotors Combination: 1624E024S + 16/5 900:1

Alternate View
Faulhaber
833-9MOTION [email protected].
Price : $379.00


Availability: 40 weeks
Order #: 1624E024S-


Spur Gearheads:

Qty:


Description Specifications and Drawings


Please call 833-9MOTION for the price of order over quantity of 50.

FAULHABER: DC-Micromotors Combination: 1624E024S + 16/5 900:1

DC-Motors

FAULHABER DC-Micromotors differ from conventional iron core DC motors in that the rotor consists of a self-supporting, skew wound copper coil.

Among the inherent properties of this pioneering design are an extremely low rotor inertia and zero cogging or preferred rotor position. These factors help to define the uniquely high, power to volume ratio of the motors as well as their extremely dynamic performance characteristics.

DC-Micromotors

Originally invented by Dr. Fritz Faulhaber Sr. and patented in 1958, the FAULHABER coreless (or ironless) progressive, self-supporting, skew-wound rotor winding is at the heart of every FAULHABER DC-Micromotor.

This revolutionary technology created new possibilities for customer application of DC-Motors where the highest power, best dynamic performance, in the smallest possible size and weight are required.

Features and benefits:

  • No cogging torque

  • Smooth position and speed control

  • High efficiency

  • Low Noise

  • High torque

  • Low Weight

  • Very low rotor inertia

  • Dynamic start-stop operation

  • Low torque ripple and EMI


Selected Variant

Series 16/5 900:1
Key Features
Number of gear stages:6
Torque up to:100 mNm
Intermittent torque up to:300 mNm
Reduction ratio:900
Diameter:17 mm
Length:36.2 mm

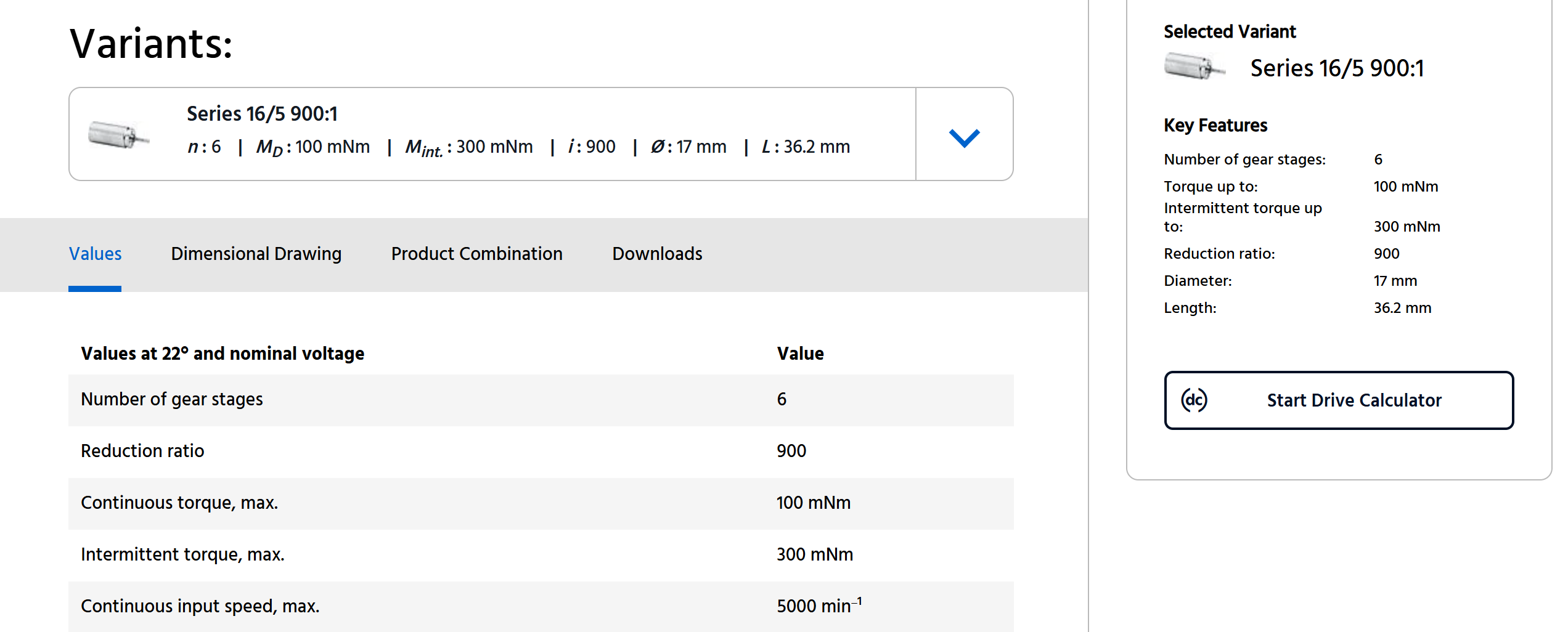

Values at 22° and nominal voltageValue
Number of gear stages6
Reduction ratio900
Continuous torque, max.100 mNm
Intermittent torque, max.300 mNm
Continuous input speed, max.5000 min⁻¹

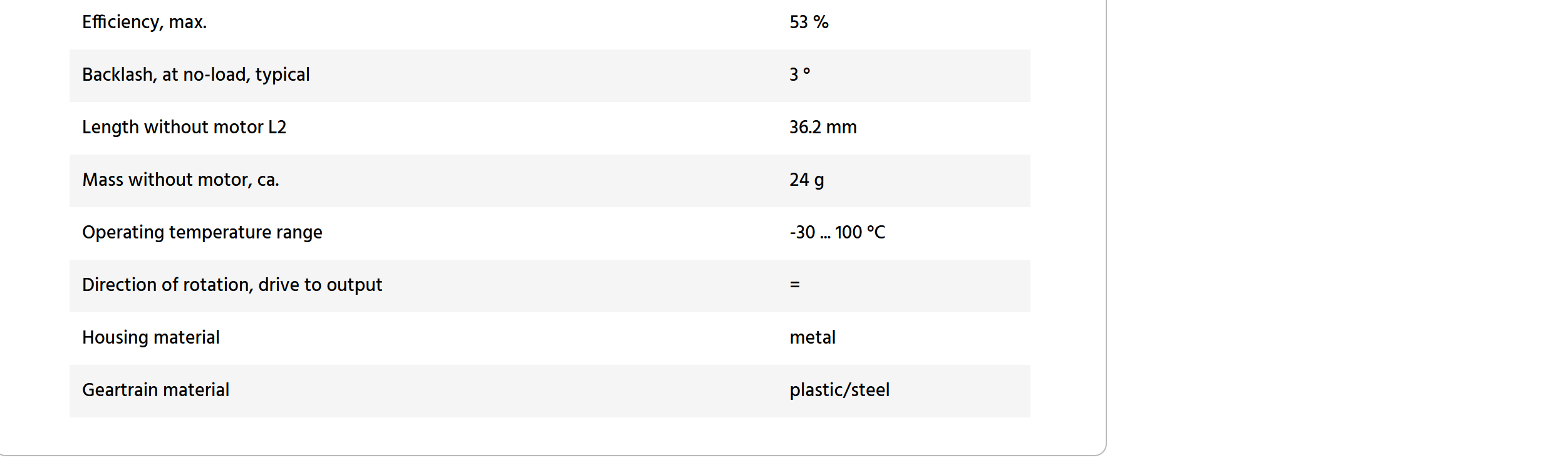

Efficiency, max.53 %
Backlash, at no-load, typical3 °
Length without motor L236.2 mm
Mass without motor, ca.24 g
Operating temperature range-30 ... 100 °C
Direction of rotation, drive to output=
Housing materialmetal
Geartrain materialplastic/steel

Model No.: 1624E024S + 16/5 900:1
