Cyclone Gearbox: EDR Series (P0:Ultra-Precision) Stage 1
Cyclone Gearbox: EDR Series (P0:Ultra-Precision) Stage 1




Price : $2,666.70

Price with Selected Options: $2,666.70


Order #: EDR_-_P0_


Model Number/Code:


Reduction Ratio (Single):


Backlash:


Output Type:


Qty:

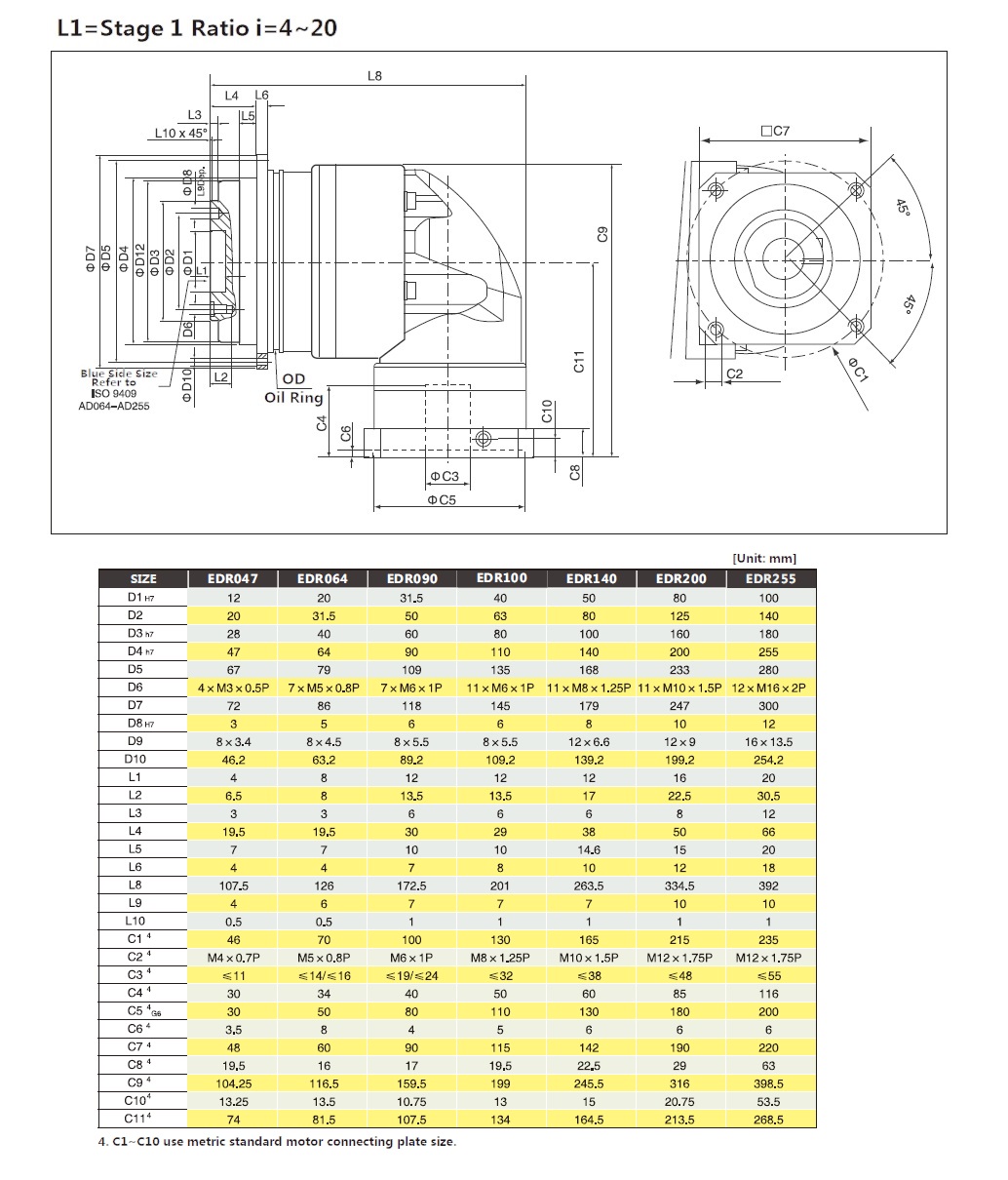

Description Specifications and Drawings


Specifications:

· Ratio (i=Nin / Nout): 4 ~ 20

· Output Torque: UP to 2000 Nm

· Backlash: ≤2 arcmin

· Available Sizes: 115-235


How to Order:

1. Select dimensions and reduction ratio

2. Specify Model

3. Specify motor type and installation method





Cyclone EDR Series PDF
