CYCLONE Stepper Motor MS24HS1P6200-1
CYCLONE Stepper Motor MS24HS1P6200-1



Price : $182.00


Availability: Usually Ships in 6 to 8 Weeks
Order #: MS24HS1P6200-1
Qty:

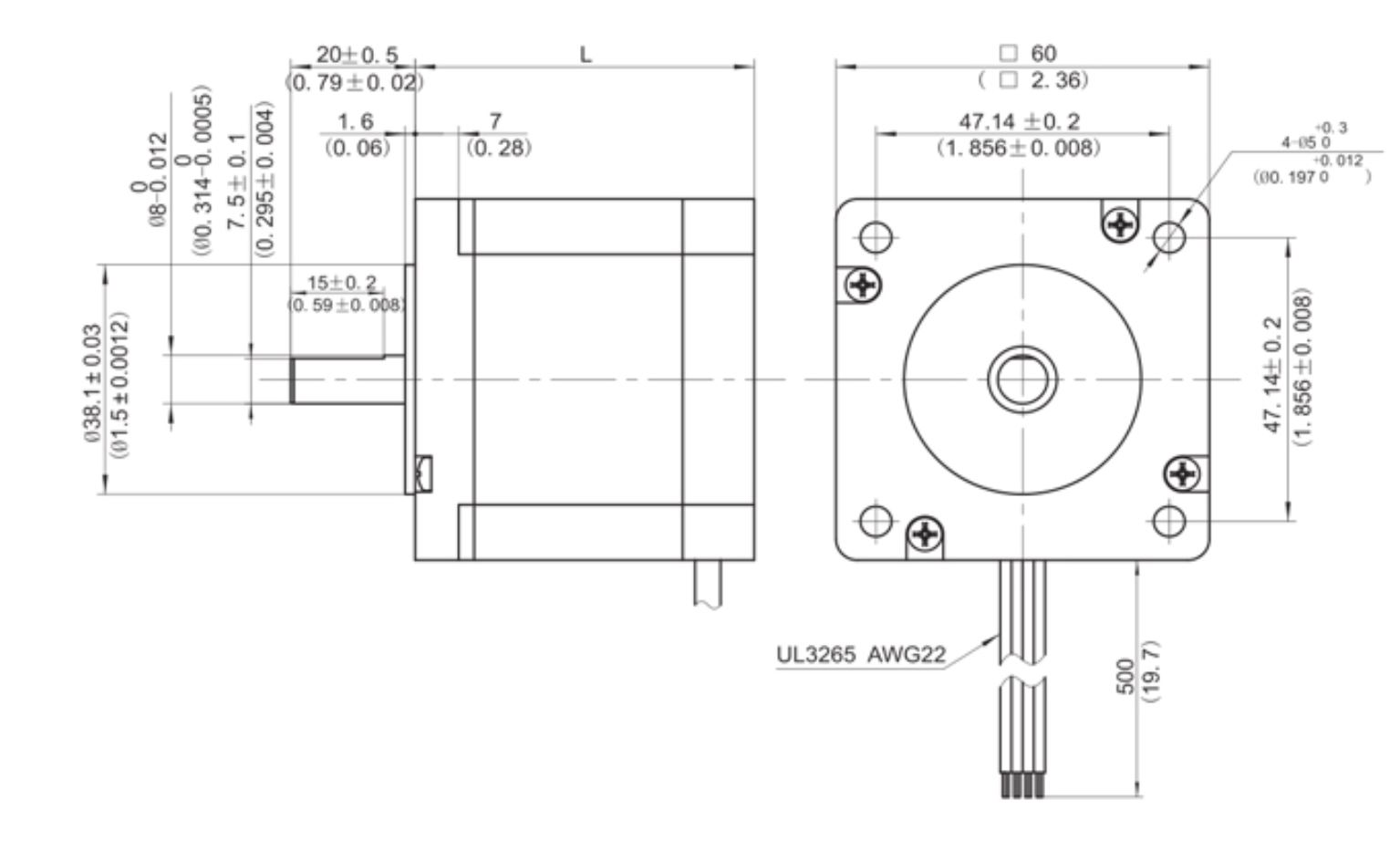

Description Specifications and Drawings


Specifications:

  • Holding Torque: 1.0 N.m
  • Rated Current 2.0 A
  • Resistance/phase 1.2 Ω
  • Inductance/phase 3.1 mH
  • Rotor Inertia 900 g.cm2
  • Weight 0.7 kg
