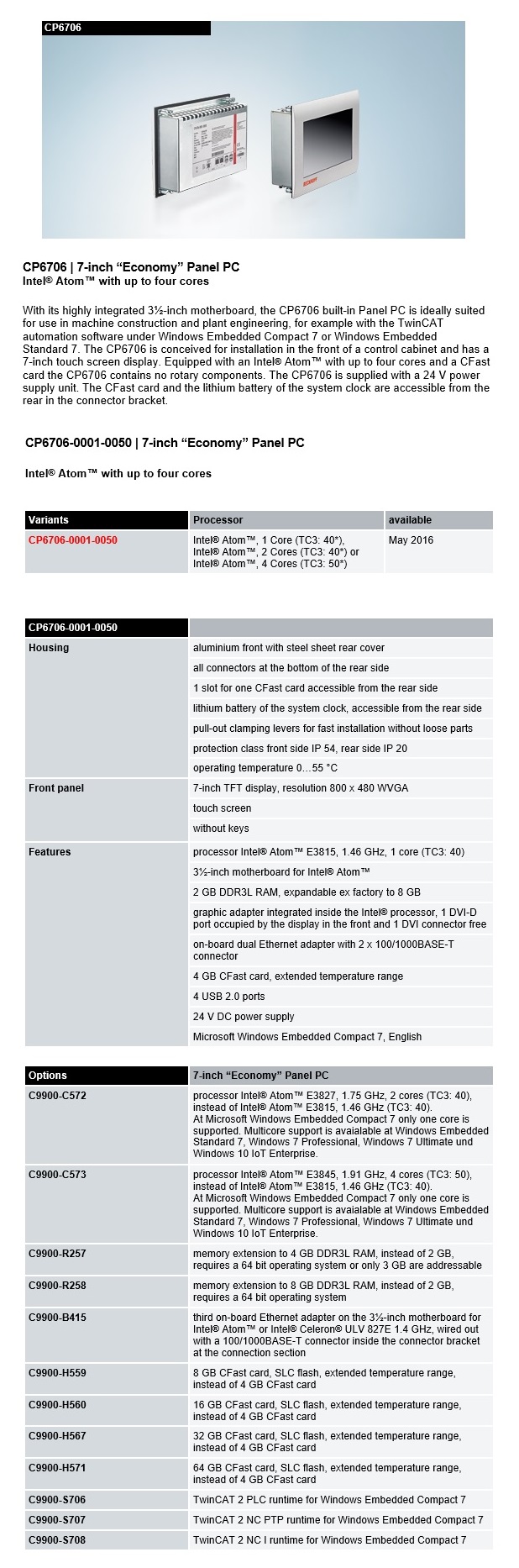

Beckhoff: Industrial PC (CP6706 Series)

7-inch “Economy” Panel PC | Intel® Atom™ with up to four cores

With its highly integrated 3½-inch motherboard, the CP6706 built-in Panel PC is ideally suited for use in machine construction and plant engineering, for example with the TwinCAT automation software under Windows Embedded Compact 7 or Windows Embedded Standard 7. The CP6706 is conceived for installation in the front of a control cabinet and has a 7-inch touch screen display. Equipped with an Intel® Atom™ with up to four cores and a CFast card the CP6706 contains no rotary components. The CP6706 is supplied with a 24 V power supply unit. The CFast card and the lithium battery of the system clock are accessible from the rear in the connector bracket.
