Delta: PC-Based Motion Solution - DMCNET Slaves (ASD-DMC-GE01PH Series)

DMCNET is a high speed and real time communication system, capable of controlling up to 12 servo system units within 1ms simultaneously. It can accept double precision floating point values 64-bits wide and provide up to 1,280,000 pulse/rev resolution so the servo system can make accurate calculations and provide operation flexibility. 35 homing modes are provided. 12 servo system units or 4 groups, 3-axis helical and linear interpolation or 6 groups, 2-axis linear and arc interpolation can be implemented synchronously. It also supports absolute commands, incremental commands and T-curve / S-curve velocity profiles, built-in position, speed and torque control modes for different uses. Simply by connecting to servo motors, linear motors, digital inputs and outputs (DI/DO), analog inputs and outputs (AI/AO) and other control devices such as stepping motors and manual pulse generator (MPG), enabling fast and cost-effective communication and control is easy.

DMCNET is the best integrated platform for multi-axis and synchronous motion control in a wide range of machine tools and industrial applications. It is also the ultimate solution that provides effortless wiring, enhanced stability, flexible extension ability and versatile operation for industry upgrading and adding value to the products.

DMCNET Slaves

For DMCNET high speed and real time communication, Delta provides a reliable gateway type power coupler, digital I/O remote modules, analog I/O remote modules and pulse remote modules for utility applications and a variety of industrial applications.

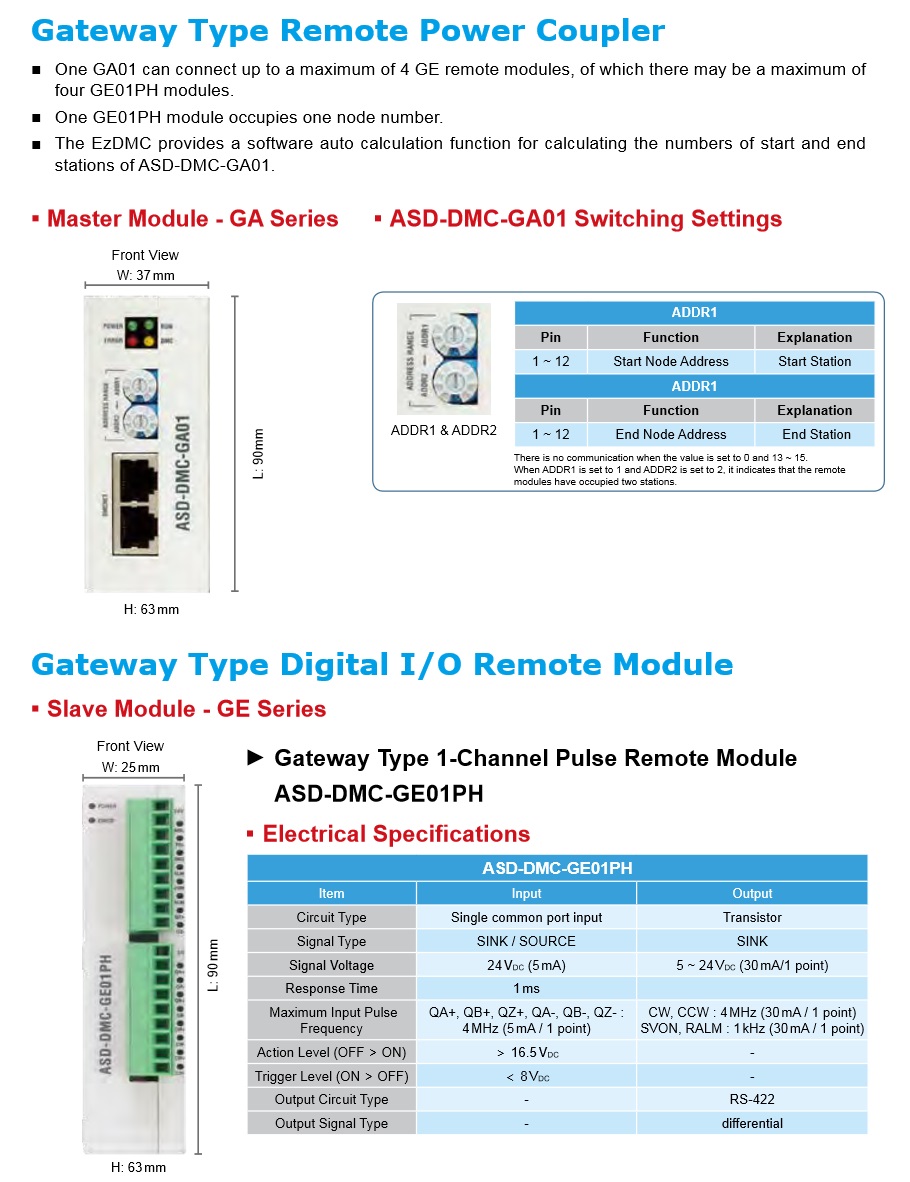

Gateway Type 1-Channel Pulse Remote Module (ASD-DMC-GE01PH Series)

The GE01PH pulse remote module acquires and controls pulse signals. It must be attached to a GA01 remote power coupler on the DMCNET network for remote control.

Specifications:

  • DIN rail Installation

  • Supply voltage: 24VDC (15% ~ 20%)

  • ESD: 8KV Air Discharge

  • EFT: Power Line-2KV

  • Digital I/O 1KV

  • RS: 80MHz ~ 1GHz, 10V/m

  • Operating temperature: : 0°C ~ 50°C

Pulse Interface Input Port (GE01PH Input)

  • Input circuit type: Single common port input

  • Input signal type: SINK

  • Input signal voltage (Sensor): 24VDC (5mA)

  • Response time: 1ms

  • Action level (OFF → ON): >16.5VDC

  • Trigger level (ON → OFF): <8VDC

  • Input signal is 5VDC and differential type only:

  • Maximum input pulse frequency: QA+, QB+, QZ+, QA-, QB-, QZ-: 4MHz (5mA/1 point)

Pulse Interface Output Port (GE01PH Output)

  • Output circuit type: Transistor

  • Output signal type: SINK

  • Output signal voltage: 5 ~ 24VDC (30mA/1 point)

  • Response frequency: SVON, RALM: 1KHz (30mA/1 point)

  • Output circuit type: RS-422

  • Output signal type: differential

  • Output signal voltage: 5 ~ 24VDC (30mA/1 point)

  • Maximum output pulse frequency: CW, CCW: 4MHz (30mA/1 point)
