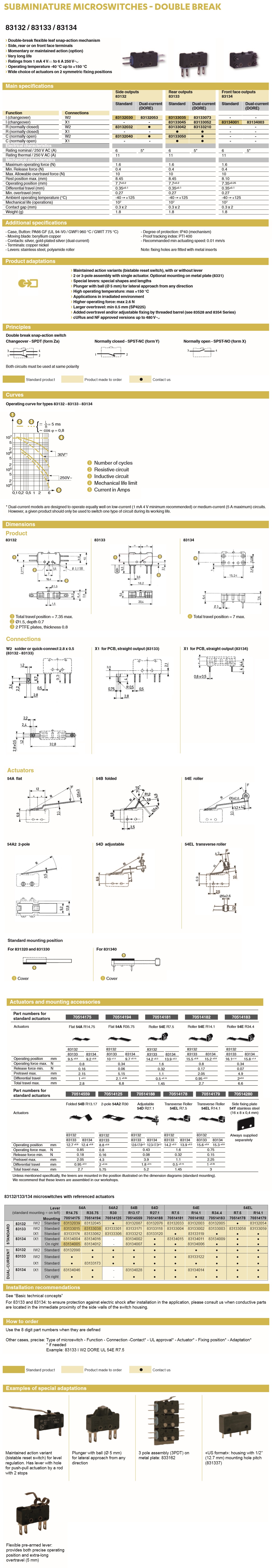

Description Specifications and Drawings


Crouzet: Subminiature Microswitches (83132/83133/83134 Series)

With over 60 years’ experience in snap-action technology, Crouzet Switches offers a complete range of Microswitches for the highly demanding markets. The extensive choice consists of standard or customized Sub-subminiature, Subminiature, Miniature and Special microswitches, all conform to the most rigorous quality standards.

Our microswitches are characterized by a large range of switching ratings from 1 mA to 25 A, magnetic blowout versions for High DC ratings, sealed models, positive break versions, a wide range of operating temperatures, models for explosive atmospheres, long service life and wide variety of actuators, contact materials and fixing means.

Subminiature Microswitches – Double Break (Maintained Action: Optional)

  • Case, Button: PA66 GF (UL 94-V0 / GWFI 960 °C / GWIT 775 °C)

  • Moving blade: beryllium copper

  • Contacts: silver, gold-plated silver (dual-current)

  • Terminals: copper nickel

  • Levers: stainless steel, polyamide roller

  • Degree of protection: IP40 (mechanism)

  • Proof tracking index: PTI 400

  • Recommended min actuating speed: 0.01 mm/s

  • Maintained action variants (bistable reset switch), with or without lever

  • 2 or 3-pole assembly with single actuator. Optional mounting on metal plate (8331)

  • Special levers: special shapes and lengths

  • Plunger with ball (Ø 5 mm) for lateral approach from any direction

  • High operating temperature: max +150 °C

  • Applications in irradiated environment

  • Higher operating force: max 2.6 N

  • Larger overtravel: min 0.5 mm (SP4225)

  • Added overtravel and/or adjustable fixing by threaded barrel (see 83528 and 8354 Series)

  • cURus and NF approved versions up to 480 Va

  • Wide choice of actuators on 2 symmetric fixing positions

  • Long life

  • Momentary or maintained action (option)

  • Side, rear or on front face terminals

  • Double-break flexible leaf snap-action mechanism

Specifications

  • Approx body size (mm): 20x10x6

  • Rating (max): 6A/250Vac

  • Degree of protection: IP40

  • Operating temperature: -40°C/+150°C

  • Operating force (max): 1.6N; 2,6N

  • Differential travel (max): 0.45 mm

  • Overtravel (min): 0.27 mm

  • Mechanical life (cycles): 10 M
