ATI: Compliance Device #9116-001-A
ATI: Compliance Device #9116-001-A

Price : $1,275.00



Availability: Manufacturer standard lead time
Order #: 9116-001-A
Qty:

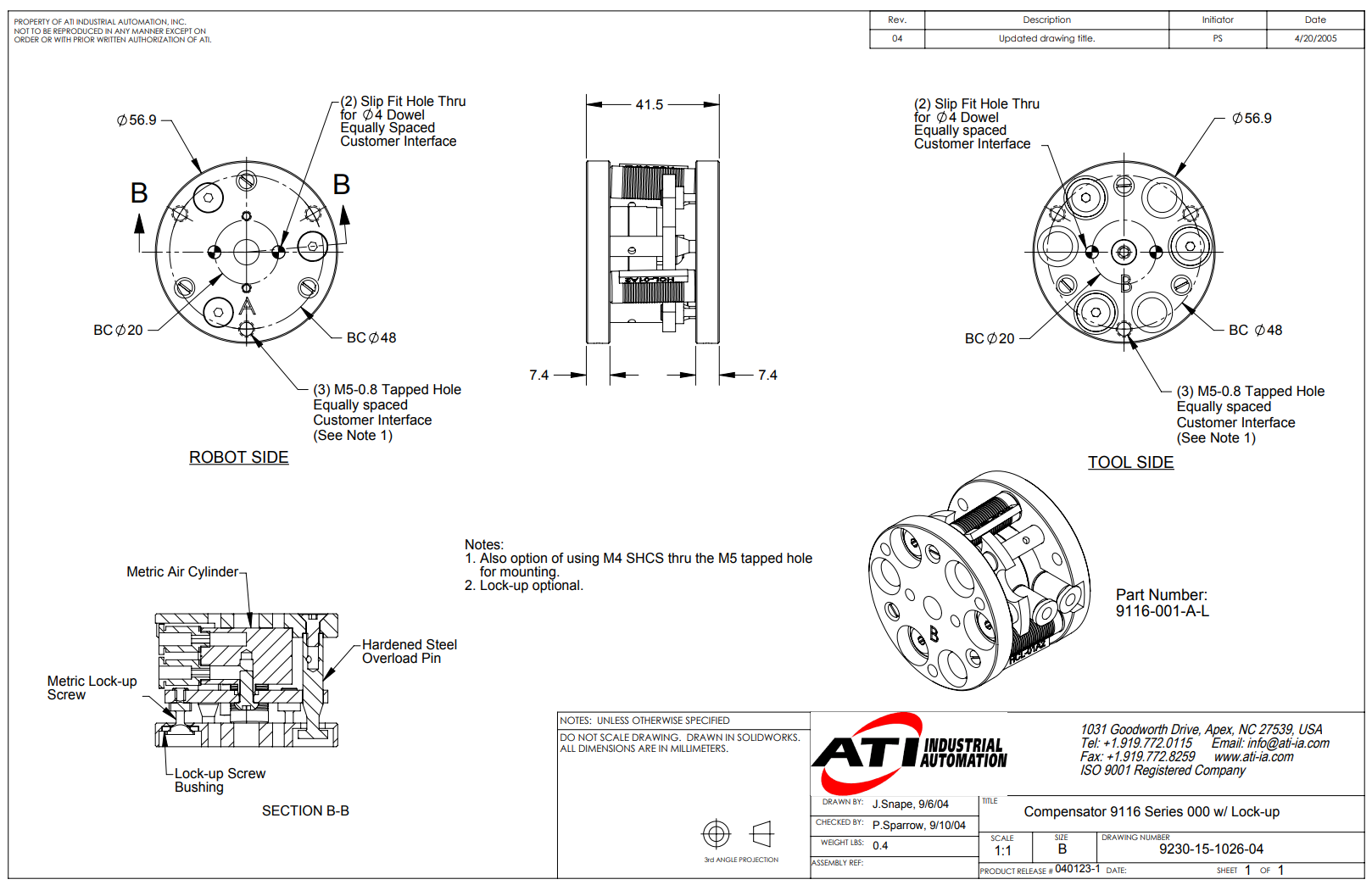

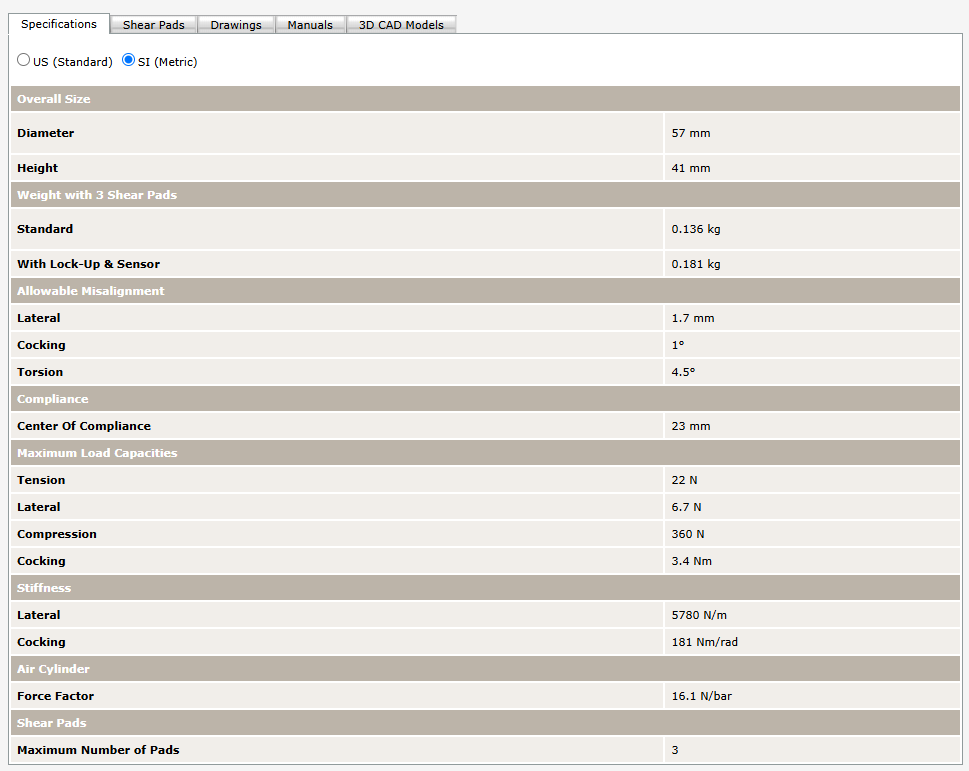

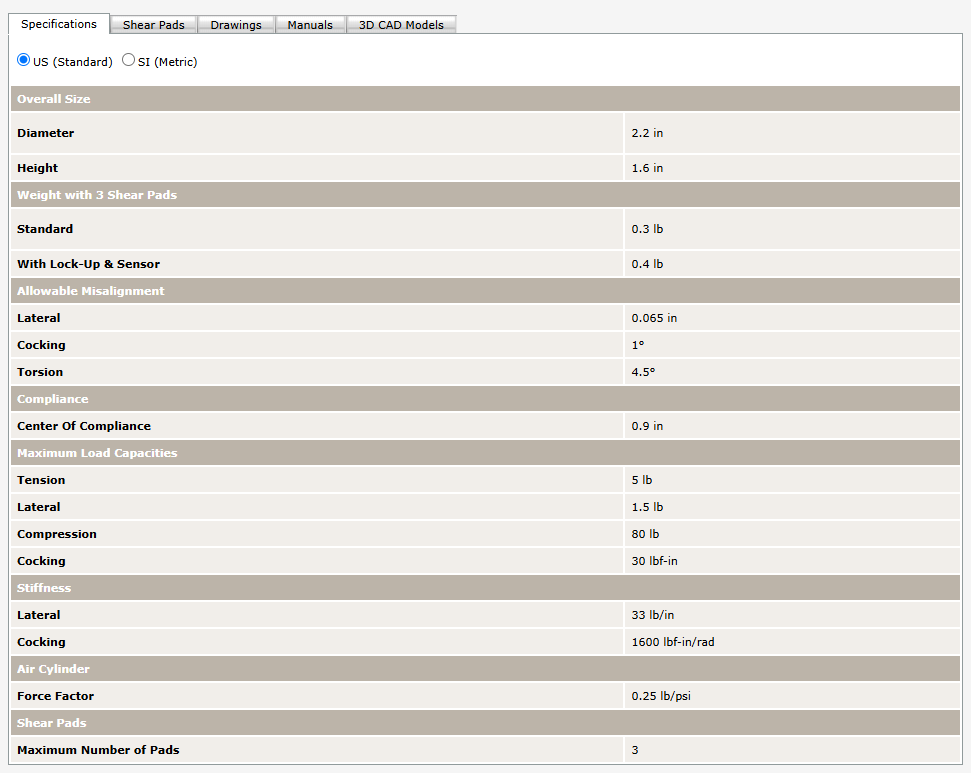

Description Specifications and Drawings


ATI: Compliance Device #9116-001-A


Description

Product Advantages

  • Reduce scrap, downtime, machine damage.
  • Eliminates jamming, wedging, galling.
  • Increases automatic assembly productivity (faster throughput).
  • Lowers machine and part cost due to relaxed tolerances.
  • Replaces centering sleeves, springs, two-stage RCCs.
  • Makes impossible assemblies possible.
Support Links
9610-15-1000.pdfLCC L1A-063, L1J-063, L1A-125 Lateral Compliance Compensator Manual (9116 Series 000, 100, 200, and 400)
