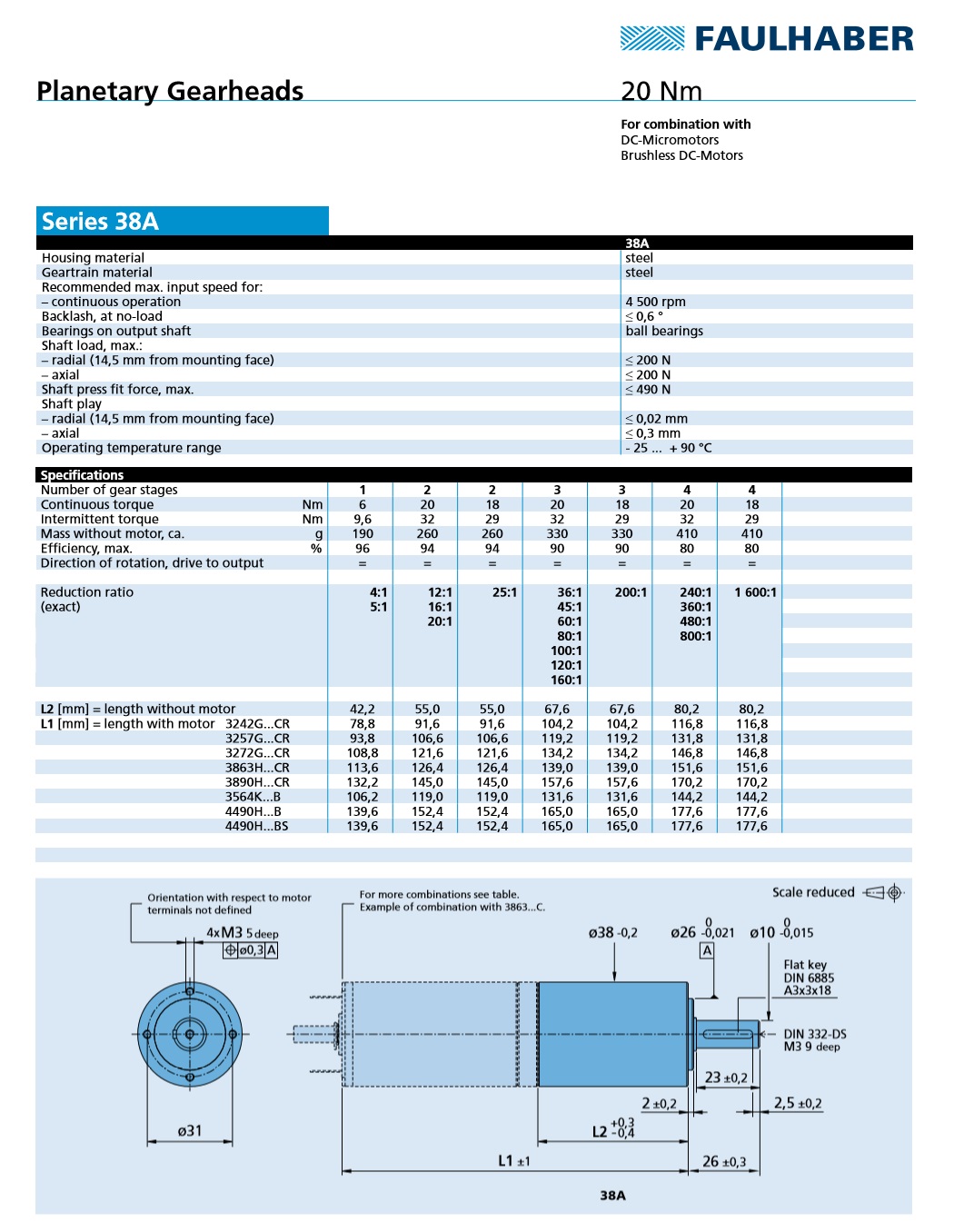

Description Specifications and Drawings


Faulhaber: Planetary Gearheads (38A Series)

Planetary Gearheads

Their robust construction make the planetary gearheads, in combination with FAULHABER DC-Micromotors, ideal for high torque, high performance applications.

For applications requiring medium to high torque FAULHABER offers planetary gearheads constructed of high performance plastics.

Features and Benefits:

  • Available in all plastic or metal versions

  • Available with a variety of shaft bearings including sintered, ceramic, and ball bearings

  • Modified versions for extended temperature and special environmental conditions are available

Specifications:

  • Diameter (mm): 38

  • Standard Ratios (from...to): 4:1 ... 1,600:1

  • Torque cont. duty (mNm): 2,000

  • Intermittent duty Torque (mNm): 3,200

Model No.: 38A 4:1, 38A 5:1, 38A 12:1, 38A 16:1, 38A 20:1, 38A 25:1, 38A 36:1, 38A 45:1, 38A 60:1, 38A 80:1, 38A 100:1, 38A 120:1, 38A 160:1, 38A 200:1, 38A 240:1, 38A 360:1, 38A 480:1, 38A 800:1, 38A 1600:1
