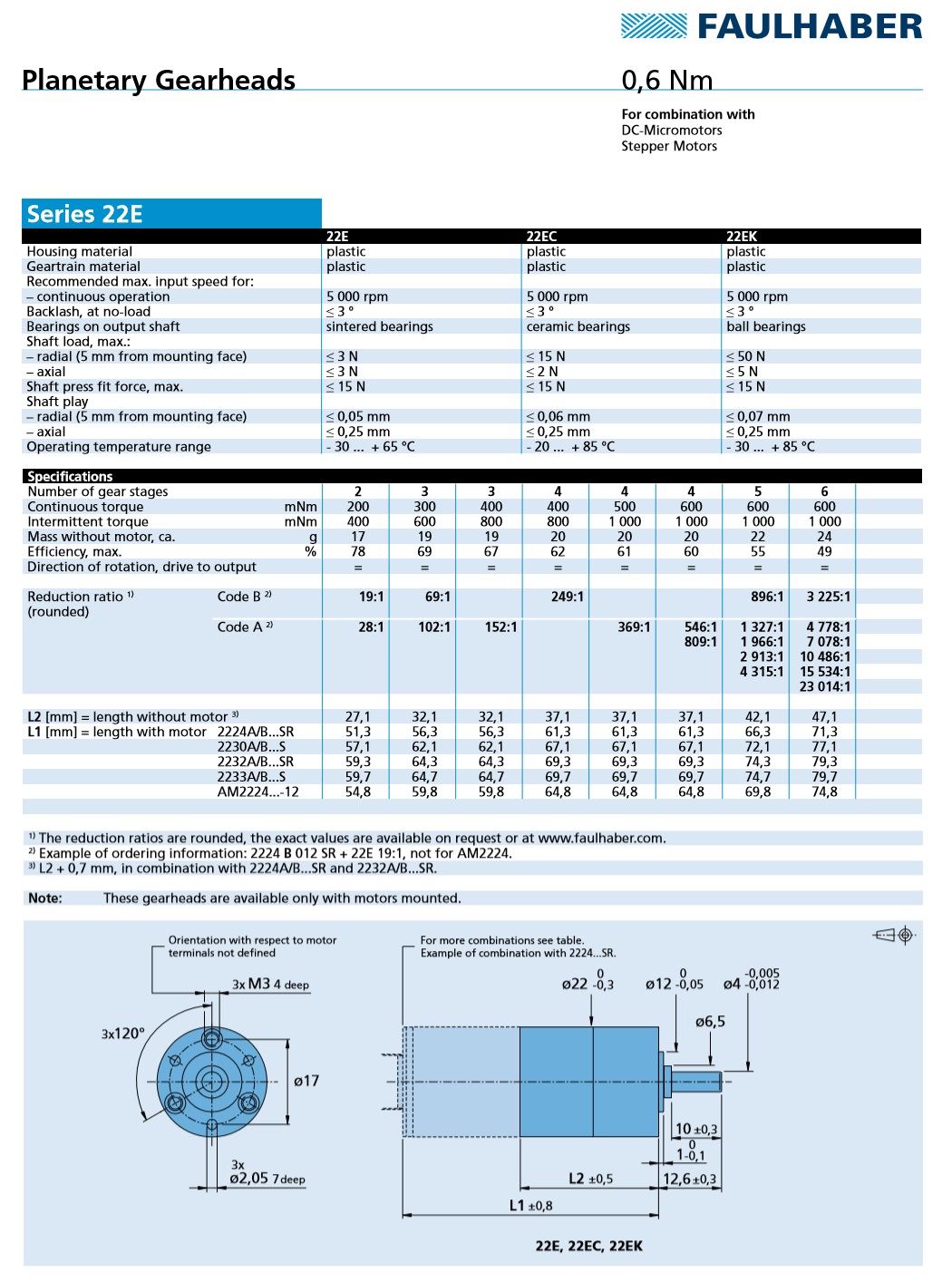

Description Specifications and Drawings


Faulhaber: Planetary Gearheads (22E Series)

Planetary Gearheads

Their robust construction make the planetary gearheads, in combination with FAULHABER DC-Micromotors, ideal for high torque, high performance applications.

For applications requiring medium to high torque FAULHABER offers planetary gearheads constructed of high performance plastics.

Features and Benefits:

  • Available in all plastic or metal versions

  • Available with a variety of shaft bearings including sintered, ceramic, and ball bearings

  • Modified versions for extended temperature and special environmental conditions are available

Specifications:

  • Diameter (mm): 22

  • Standard Ratios (from...to): 19:1 ... 23,014:1

  • Torque cont. duty (mNm): 600

  • Intermittent duty Torque (mNm): 1,000

Model No.: 22E 19:1, 22E 28:1, 22E 69:1, 22E 102:1, 22E 152:1, 22E 249:1, 22E 369:1, 22E 546:1, 22E 809:1, 22E 896:1, 22E 1327:1, 22E 1966:1, 22E 2913:1, 22E 3225:1, 22E 4315:1, 22E 4778:1, 22E 7078:1, 22E 10486:1, 22E 15534:1, 22E 23014:1
