Faulhaber: Motion Controllers (MC 3001 P Series) MC 3001 P RS/CO

with RS232 or CANopen interface

FAULHABER Motion Controllers are easy to use single axis positioning controllers tailor made for the control of FAULHABER DC, Brushless, and linear motors.

For high resolution dynamic positioning applications, or high precision speed control applications they are available with serial or CAN interfaces and can be configured the free and easy to use Motion Manager software.

Features and Benefits:

• Compact design
• Controlled via RS232 or CANopen interface
• Minimal wiring requirements
• Parametrization with “FAULHABER Motion Manager“ software and USB interface
• Wide range of accessories
• Simple start-up

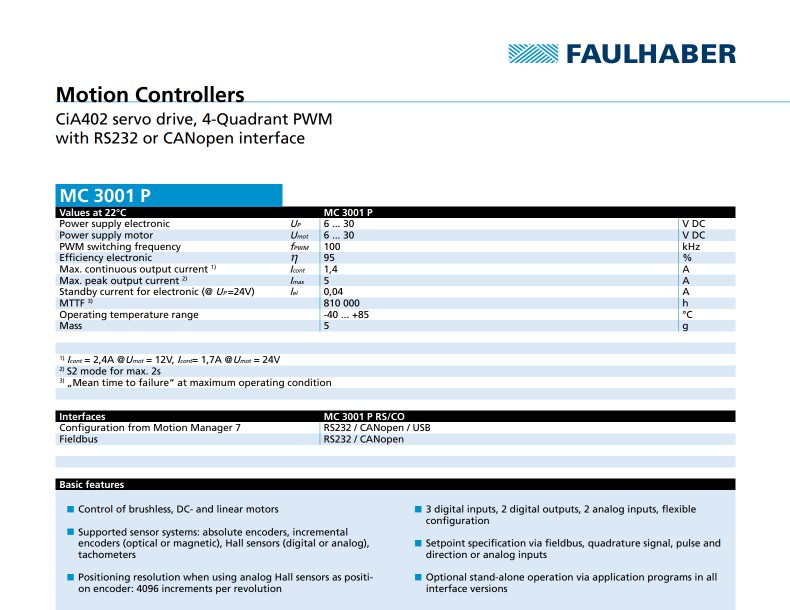

Specifications:

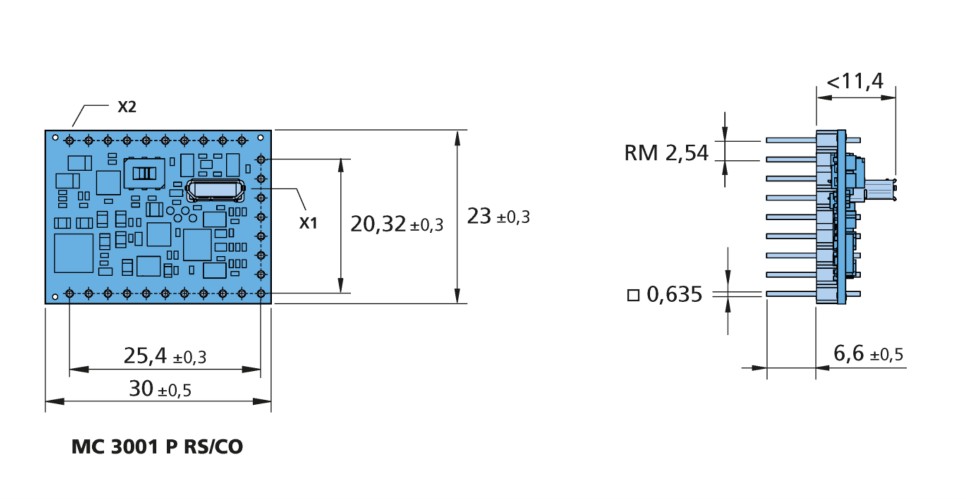

Model No.: MC 3001 P RS/CO
