Faulhaber: Planetary Gearheads (22/7 Series)
Faulhaber: Planetary Gearheads (22/7 Series)



Alternate View
Call for Pricing

Price Quote Form


Order #: 22-7


Model Number/Code*:

.

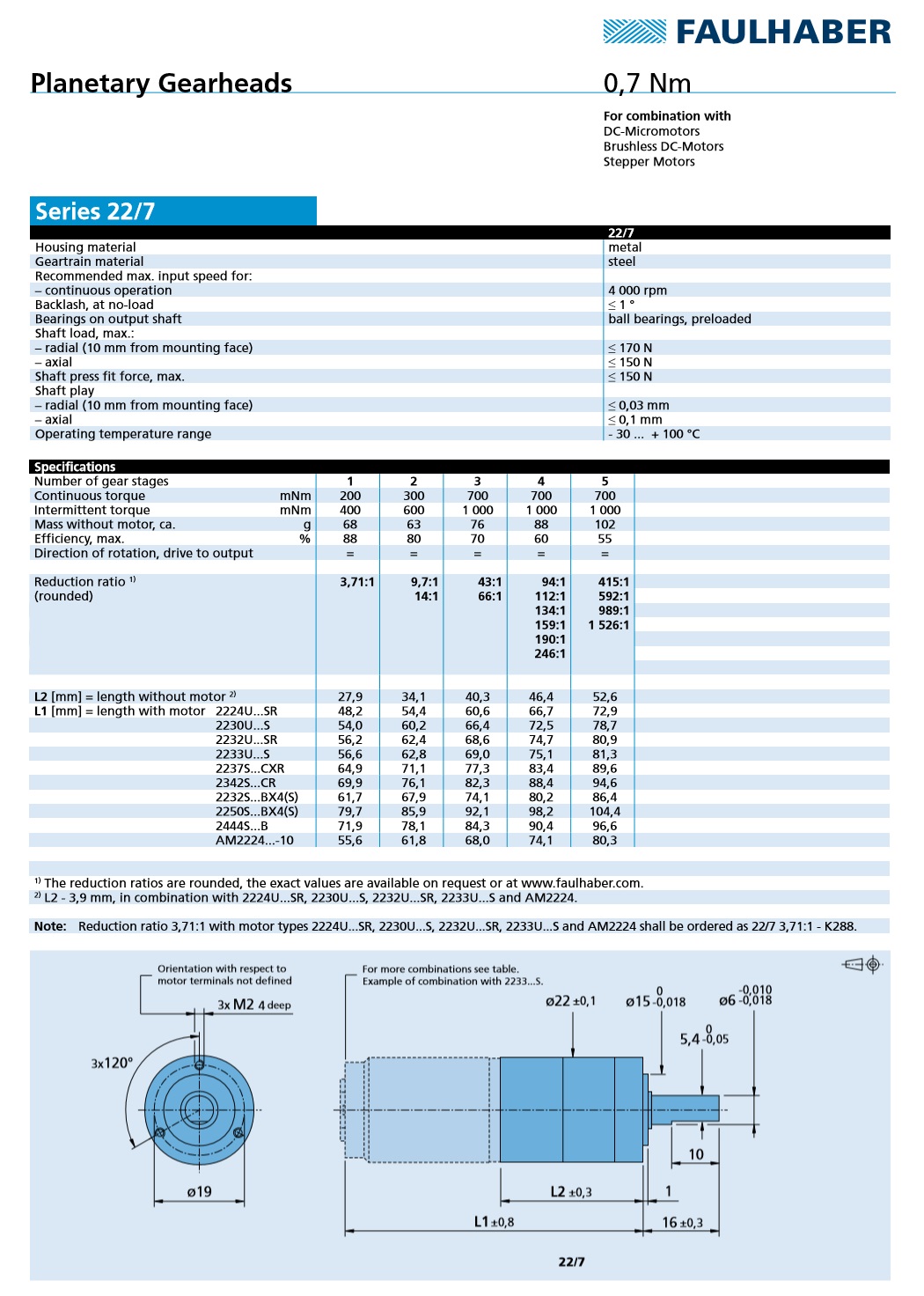

Description Specifications and Drawings


Faulhaber: Planetary Gearheads (22/7 Series)

Planetary Gearheads

Their robust construction make the planetary gearheads, in combination with FAULHABER DC-Micromotors, ideal for high torque, high performance applications.

For applications requiring medium to high torque FAULHABER offers planetary gearheads constructed of high performance plastics.

Features and Benefits:

  • Available in all plastic or metal versions

  • Available with a variety of shaft bearings including sintered, ceramic, and ball bearings

  • Modified versions for extended temperature and special environmental conditions are available

Specifications:

  • Diameter (mm): 22

  • Standard Ratios (from...to): 3.71:1 ... 1,526:1

  • Torque cont. duty (mNm): 700

  • Intermittent duty Torque (mNm): 1,000

Model No.: 22/7 3,71:1, 22/7 9,7:1, 22/7 14:1, 22/7 43:1, 22/7 66:1, 22/7 94:1, 22/7 112:1, 22/7 134:1, 22/7 159:1, 22/7 190:1, 22/7 246:1, 22/7 415:1, 22/7 592:1, 22/7 989:1, 22/7 1526:1
