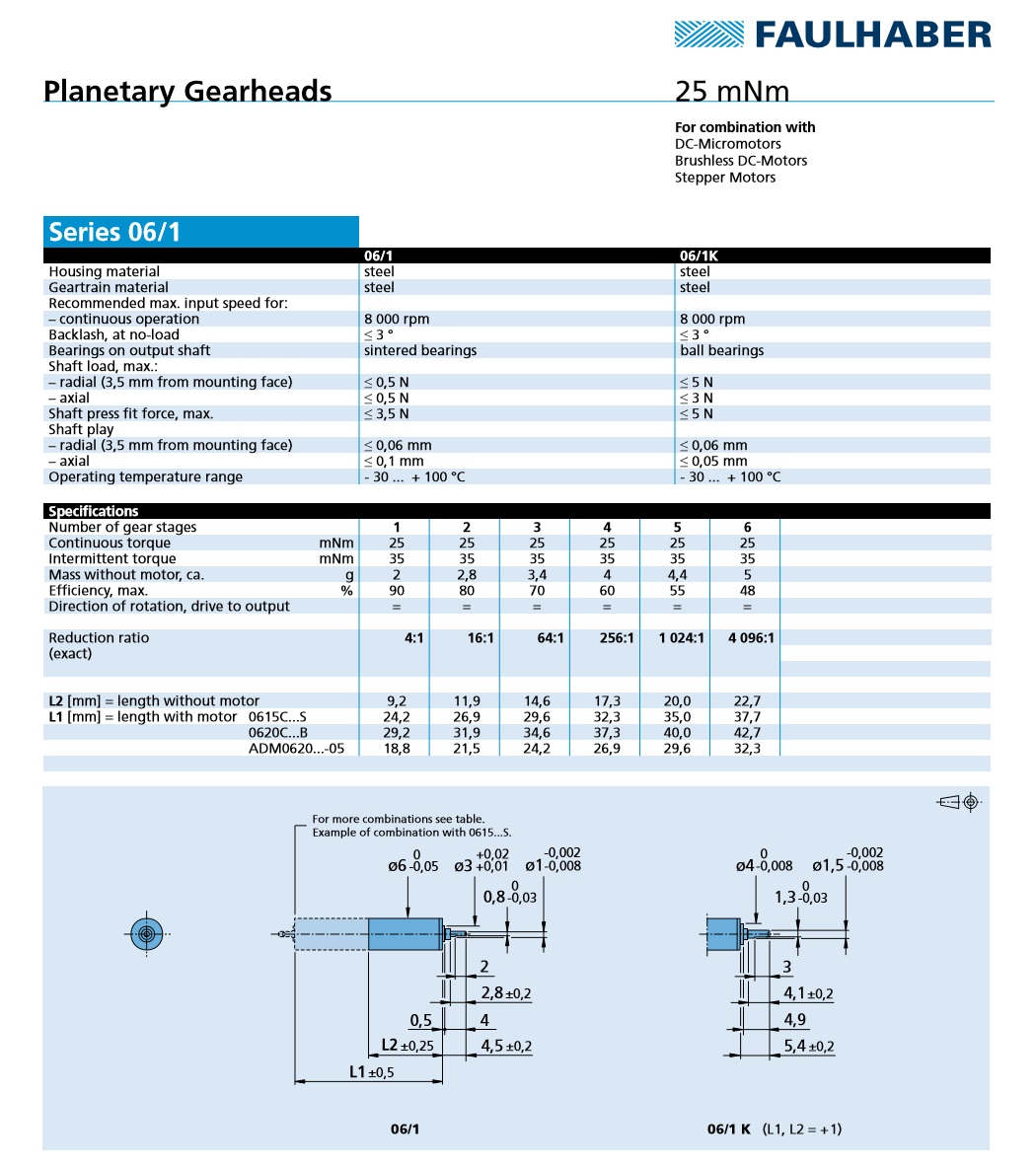

Faulhaber: Planetary Gearheads (06/1 Series)

Planetary Gearheads

Their robust construction make the planetary gearheads, in combination with FAULHABER DC-Micromotors, ideal for high torque, high performance applications.

For applications requiring medium to high torque FAULHABER offers planetary gearheads constructed of high performance plastics.

Features and Benefits:

  • Available in all plastic or metal versions

  • Available with a variety of shaft bearings including sintered, ceramic, and ball bearings

  • Modified versions for extended temperature and special environmental conditions are available

Specifications:

  • Diameter (mm): 6

  • Standard Ratios (from...to): 4:1 ... 4,096:1

  • Torque cont. duty (mNm): 25

  • Intermittent duty Torque (mNm): 35

Model No.: 06/1 4:1, 06/1 16:1, 06/1 64:1, 06/1 256:1, 06/1 1024:1, 06/1 4096:1
