US Digital: E5 OPTICAL KIT ENCODER E5-1000-315-NE-S-H-D-B

The US Digital E5 motor encoder mounts directly to a motor or other rotating shaft. This optical encoder features a rugged, glass-filled polymer housing and is designed for easy installation and removal.

The E5 encoder contains a precision machined aluminum hub with a specially patterned Mylar disk. This disk, in combination with our proprietary optical encoder module, creates a system that is highly tolerant to mechanical misalignment.

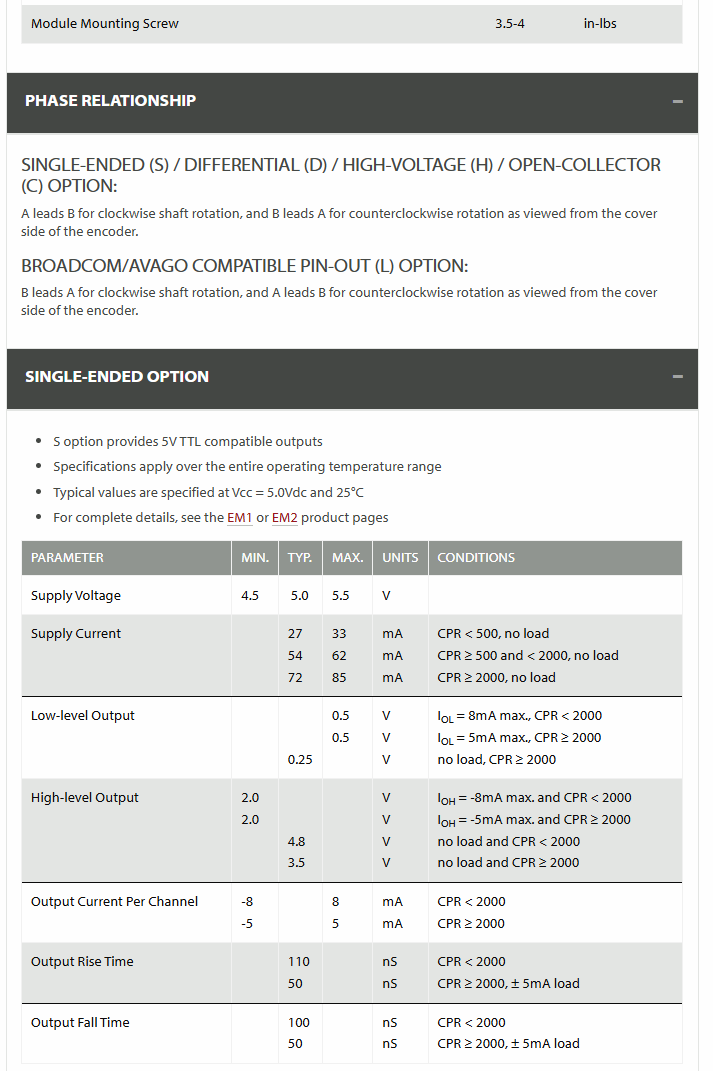

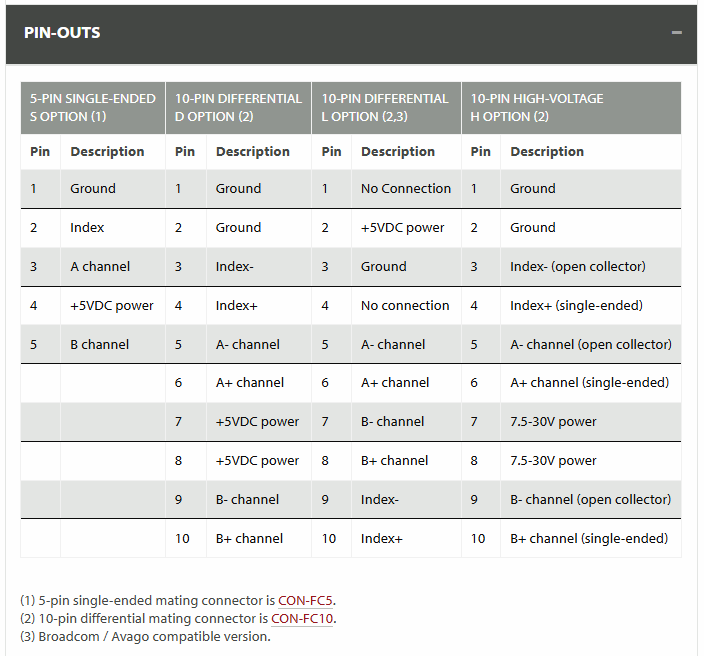

The E5 is a versatile motor encoder, with four base configurations and three cover styles which allows it to fit a wide range of applications. This optical rotary encoder also has four available outputs; single-ended, single ended High-Voltage, differential, and Avago differential. This optical encoder is designed for use with a secure latching connector. After making each selection in the Product Configurator, compatible cables and connectors will be displayed below and must be purchased separately.

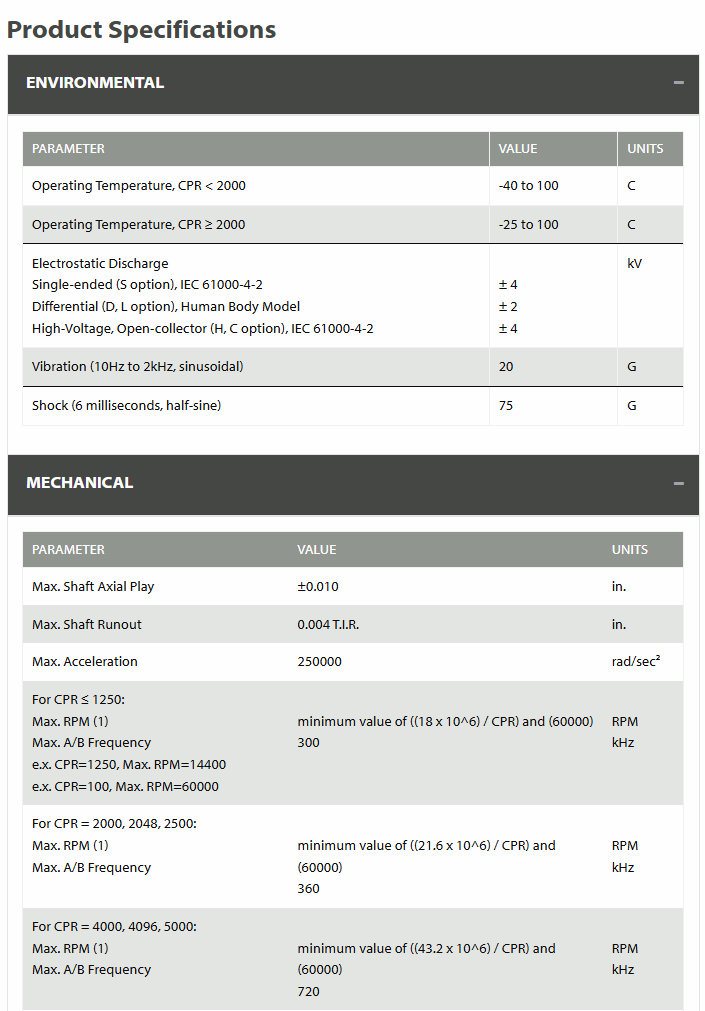

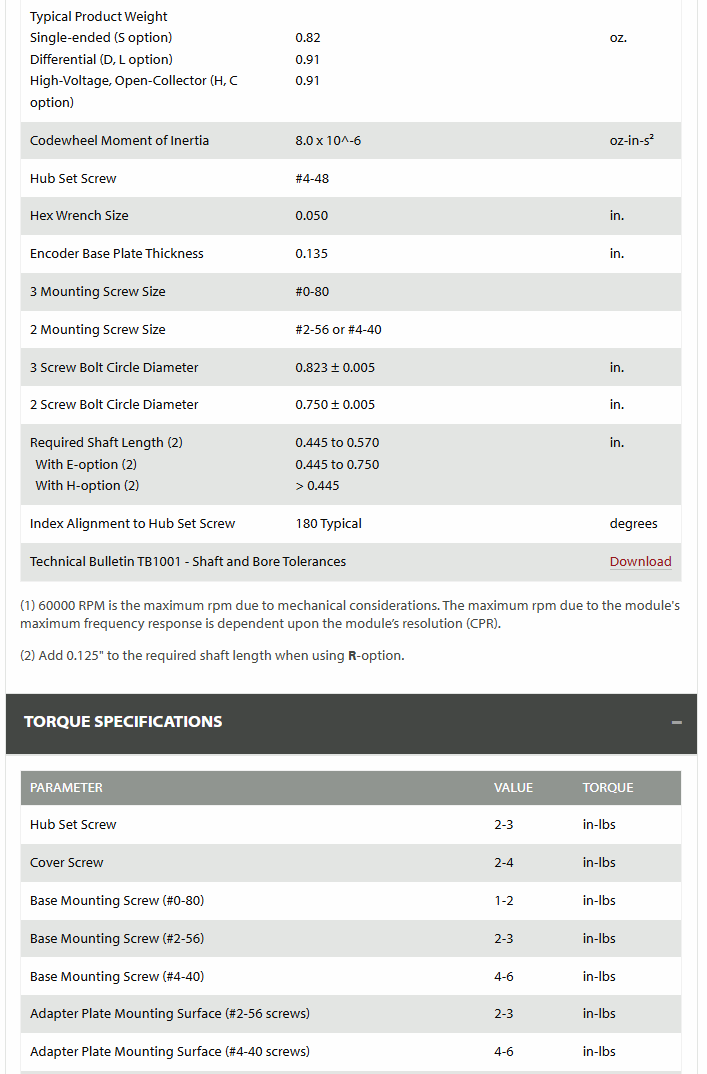

E5 Features

• Kit version for mounting on a motor or other shaft
• Supports 14 shaft sizes (2 to 10 mm and 1/8 to 3/8 in.)
• For NEMA 17 to 34 and larger motors
• 25 Resolutions from 32 to 5,000 CPR (128 to 20,000 PPR)

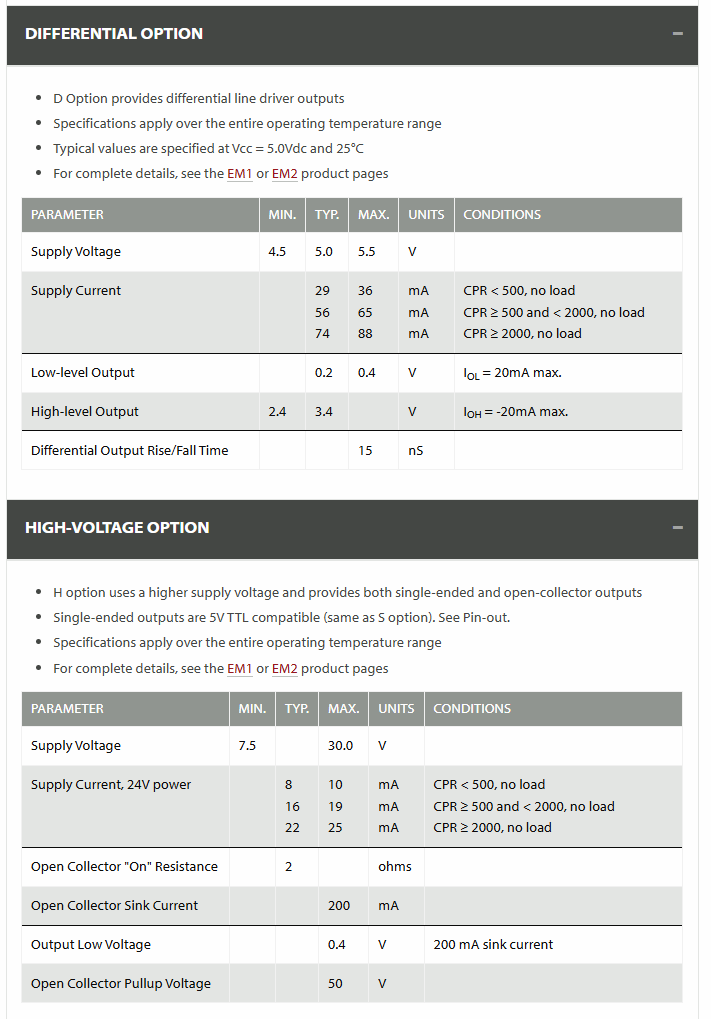

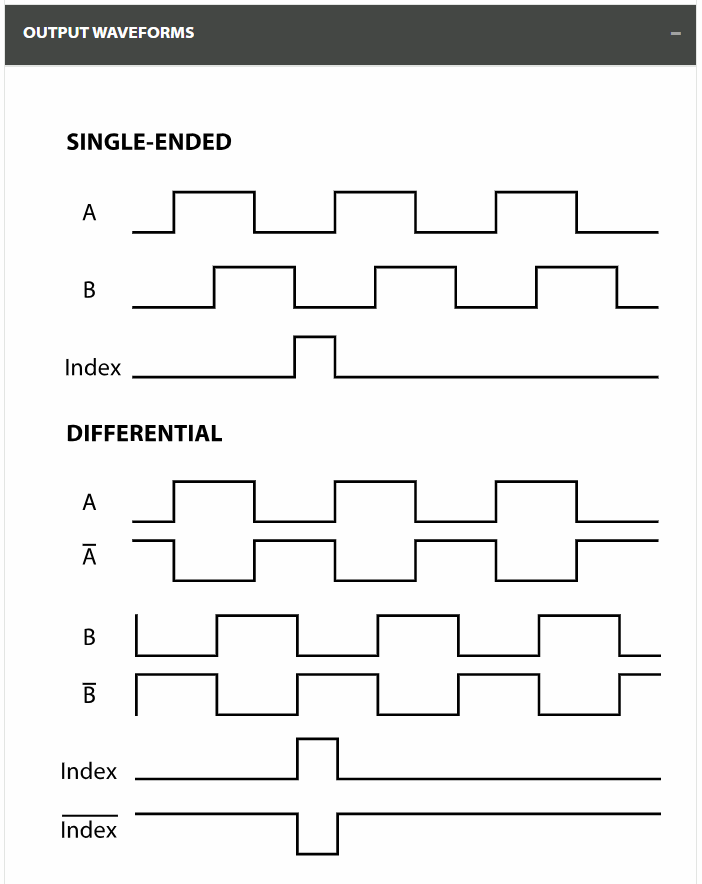

• Optional Index channel, Differential and High-Voltage outputs
• Choice of 4 base styles and 3 cover options
• Secure latching connector/cable (sold separately)
