Transmotec Brushless DC Motors BR4230
Transmotec Brushless DC Motors BR4230



Price : $269.80

Price with Selected Options: $269.80

Order #: BR4230




Qty:

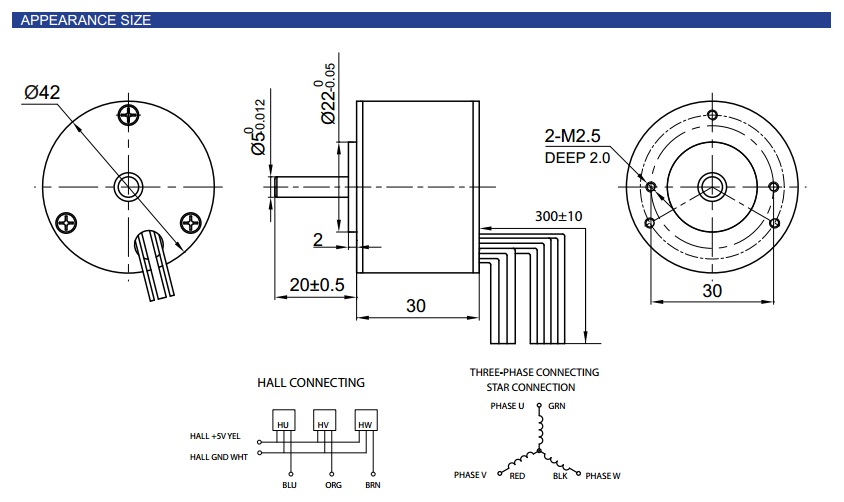

Description Specifications and Drawings


BR4230 Series

Transmotec Brushless DC Motors cover a large range of miniature sized motors to heavy duty models. The designs include both round and square shaped motor bodies. All motors include hall-effect sensors for phase shift commutation. Standard motors are kept in stock for quick delivery and customized motors are offered upon request.

Customizations and configurations typically include: various winding's, cables, connections, shaft outputs, gear heads, encoders etc… CAD drawings and additional information on motors are available on our web site. For further information and requests, please contact our sales and engineering staff.

Features:

  • Large range of miniature motors to heavy duty models
  • Round and square shaped motor bodies
  • Integral hall-effect sensors
  • Quick delivery from stock
  • Customizable

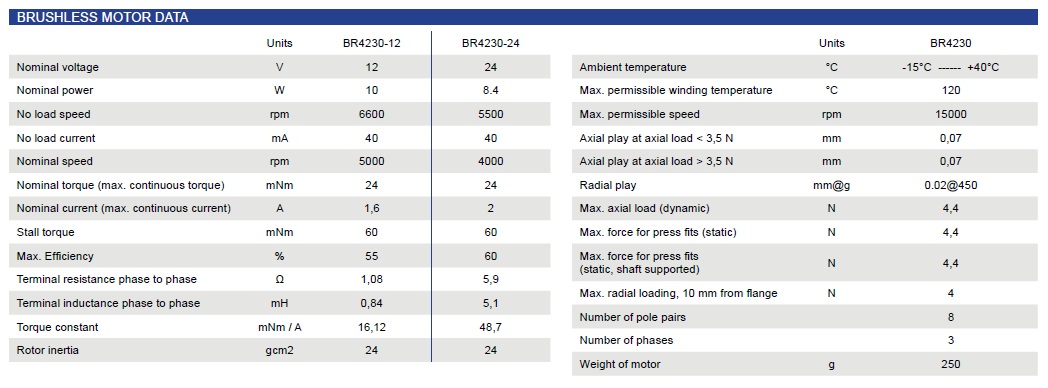

  • Nominal Voltage (V): 12, 24
  • Nominal Power (W): 10, 8.4
  • No Load Speed (rpm): 6600, 5500
  • No Load Current (mA): 40
  • Nominal Speed (rpm): 5000, 4000
  • Nominal Torque (mNm): 24
  • Nominal Current (A): 1.6, 2
  • Stall Torque (mNm): 60
  • Max. Efficiency (%): 55, 60
  • Weight (g): 250

DC Motor (Brushless) Catalog
