Transmotec Brushless DC Motors B5755
Transmotec Brushless DC Motors B5755



Price : $264.00

Order #: B5755




Qty:

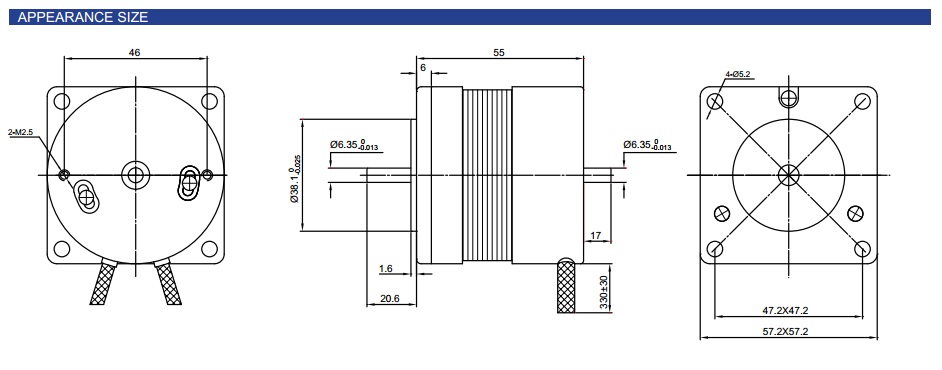

Description Specifications and Drawings


B5755 Series

Transmotec Brushless DC Motors cover a large range of miniature sized motors to heavy duty models. The designs include both round and square shaped motor bodies. All motors include hall-effect sensors for phase shift commutation.

Standard data motors are kept in stock for quick delivery and customized motors are offered upon request. Customizations and configurations typically include: various winding's, cables, connections, shaft outputs, gear heads, encoders etc…

Features:

  • Large range of miniature motors to heavy duty models
  • Round and square shaped motor bodies
  • Integral hall-effect sensors
  • Quick delivery from stock
  • Customizable

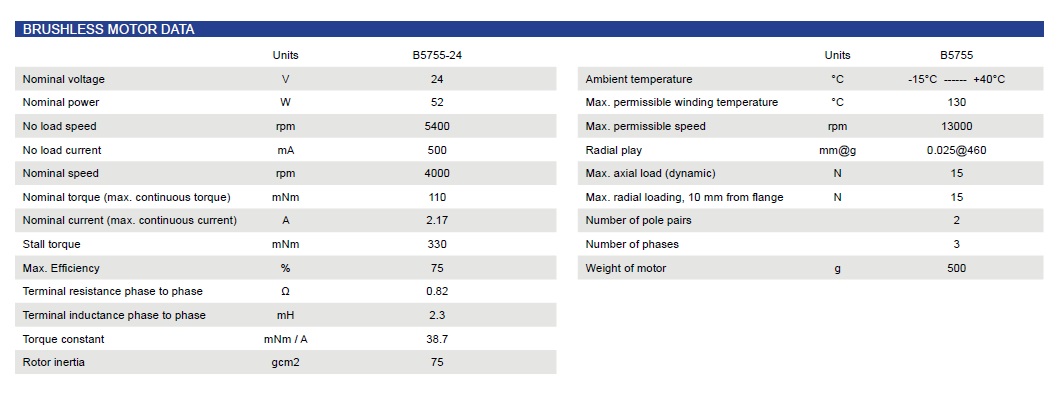

  • Nominal Voltage (V): 24
  • Nominal Power (W): 52
  • No Load Speed (rpm): 5400
  • No Load Current (mA): 500
  • Nominal Speed (rpm): 4000
  • Nominal Torque (mNm): 110
  • Nominal Current (A): 2.17
  • Stall Torque (mNm): 330
  • Max. Efficiency (%): 75
  • Weight (g): 500

DC Motor (Brushless) Catalog
