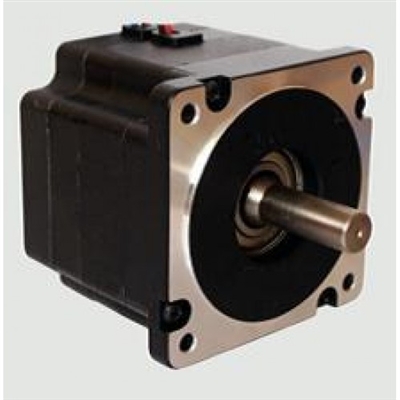

Transmotec Brushless DC Motors B8672
Transmotec Brushless DC Motors B8672



Price : $381.00

Price with Selected Options: $381.00


Order #: B8672




Qty:
Description Specifications and Drawings


B8672 Series

Transmotec Brushless DC Motors cover a large range of miniature sized motors to heavy duty models. The designs include both round and square shaped motor bodies. All motors include hall-effect sensors for phase shift commutation.

Standard data motors are kept in stock for quick delivery and customized motors are offered upon request. Customizations and configurations typically include: various winding's, cables, connections, shaft outputs, gear heads, encoders etc…

Features:

  • Large range of miniature motors to heavy duty models
  • Round and square shaped motor bodies
  • Integral hall-effect sensors
  • Quick delivery from stock
  • Customizable

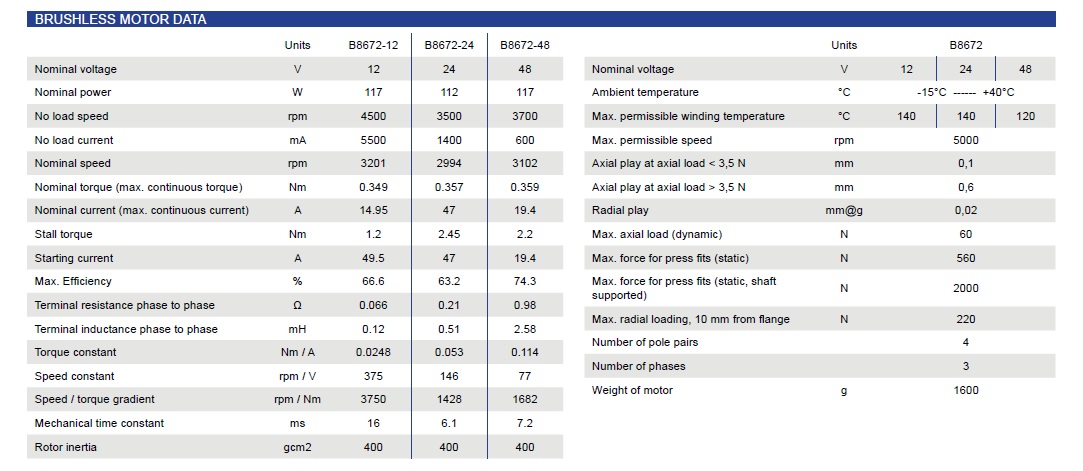

  • Nominal Voltage (V): 12, 24, 48
  • Nominal Power (W): 117, 112, 117
  • No Load Speed (rpm): 4500, 3500, 3700
  • No Load Current (mA): 5500, 1400, 600
  • Nominal Speed (rpm): 3201, 2994, 3102
  • Nominal Torque (mNm): 349, 357, 359
  • Nominal Current (A): 14.95, 47, 19.4
  • Stall Torque (mNm): 1200, 2450, 2200
  • Max. Efficiency (%): 66.6, 63.2, 74.3
  • Weight (g): 1600

DC Motor (Brushless) Catalog
