SIKO: Absolute Rotary Encoder (WH58MR Series)
SIKO: Absolute Encoder (WH58MR Series)



833-9MOTION inquiry@e-motionsupply.com.
Price : $850.00


Availability: Lead time is 9-11 weeks
Order #: WH58MR


Options:

Qty:

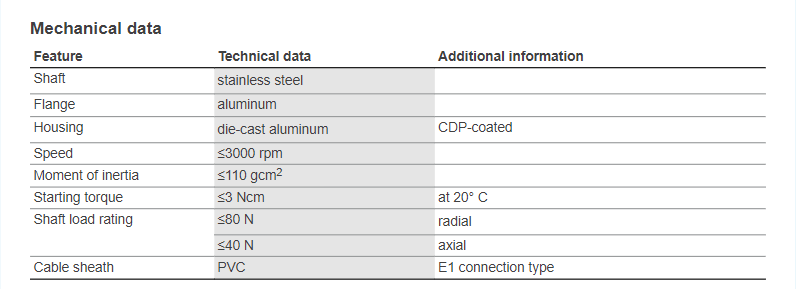

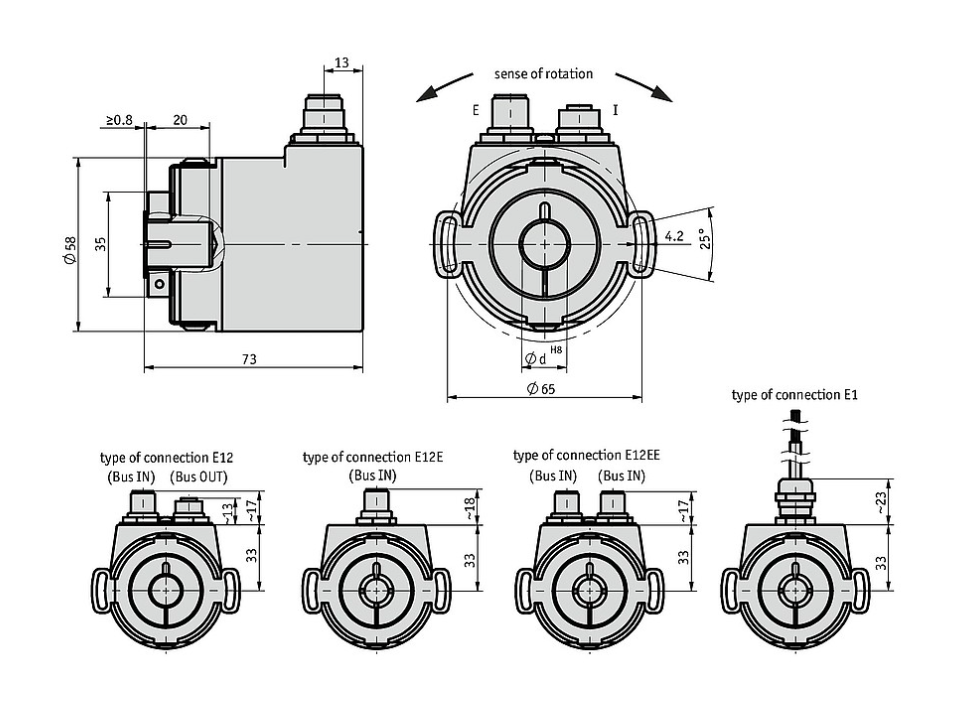

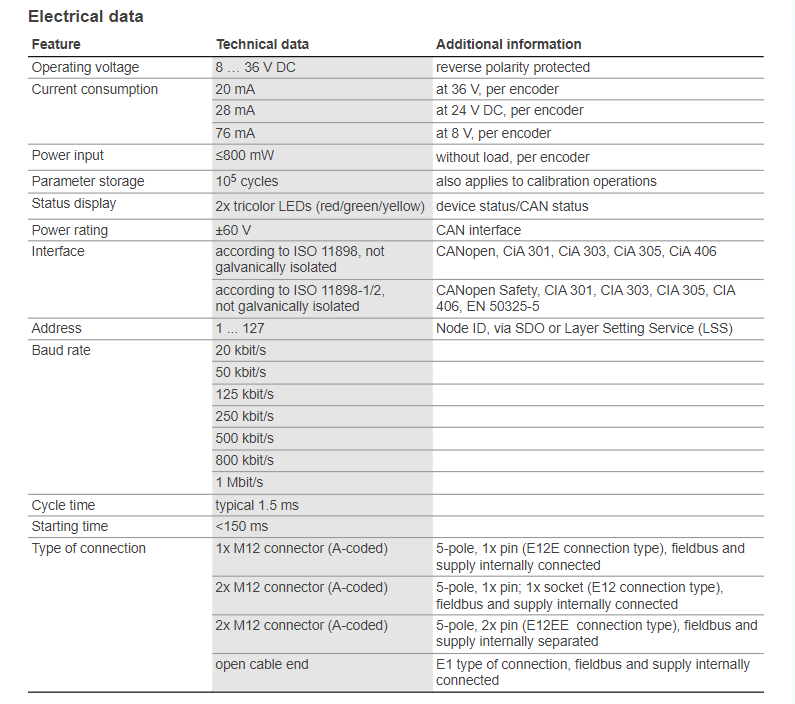

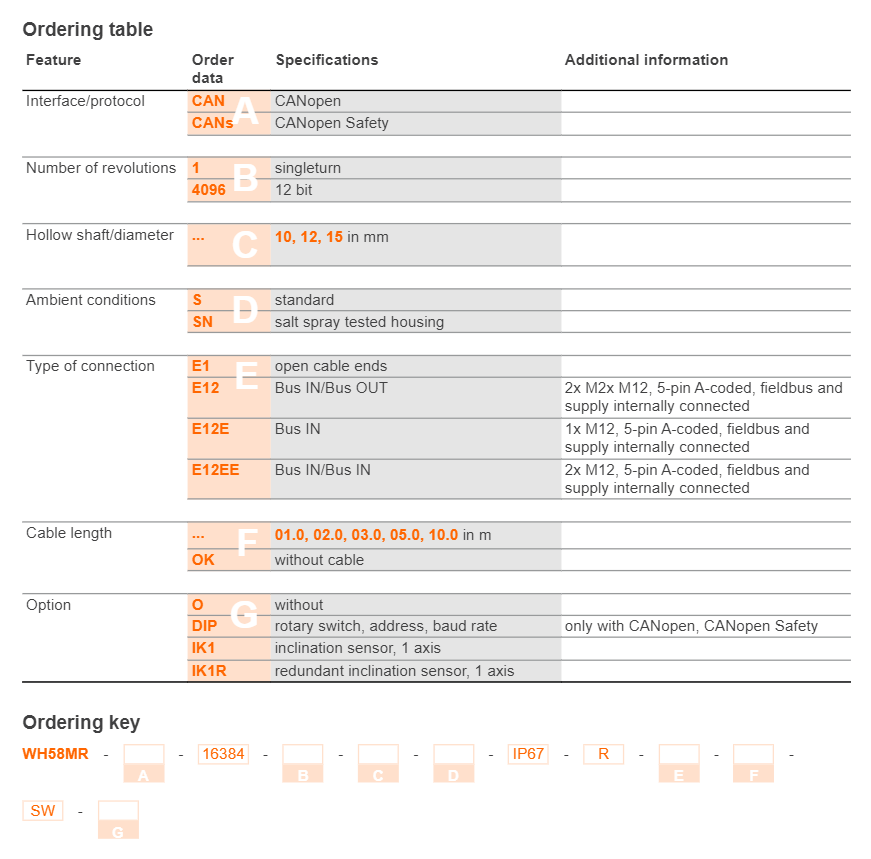

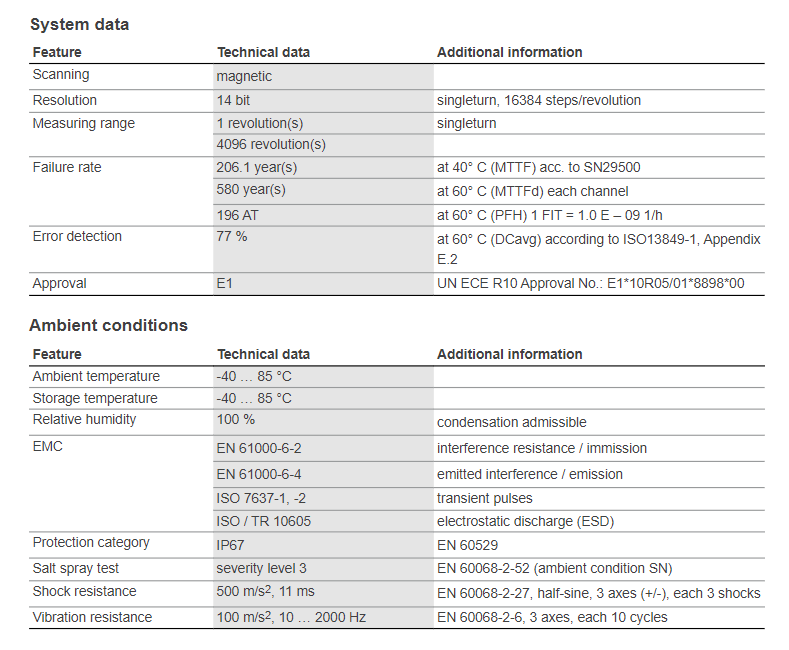

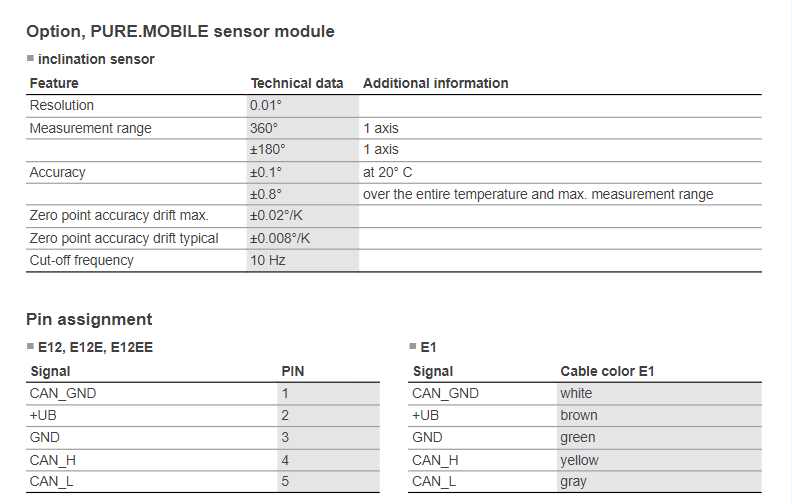

Description Ordering Information Specifications and Drawings


SIKO: Absolute Encoder (WH58MR Series)

Absolute redundant safety rotary encoder

The WH58MR rotary encoder is a magnetic safety rotary encoder with redundant position detection and hollow shaft, which has been specially developed for use in mobile machines. It can be used in safety-critical applications - up to Performance Level PLd. Thanks to its particularly robust design, an optionally redundant CANopen or CANopen Safety interface, it is ideally suited for tough conditions in mobile machines.

Profile WH58MR:

  • Absolute redundant safety rotary encoder

  • Interface CANopen Safety or CANopen redundant

  • Suitable for applications up to Performance Level PLd

  • Hollow shaft to ø 15 mm

  • Salt-spray resistant housing available

  • High electro-magnetic compatibility

  • IP67 protection class with PURE.MOBILE technology

~
