SIKO: Incremental Rotary Encoder (IG06 Series)
SIKO: Incremental Rotary Encoder (IG06 Series)




Price : $499.00


Availability: 6-8 weeks lead time
Order #: IG06


Options:

Qty:

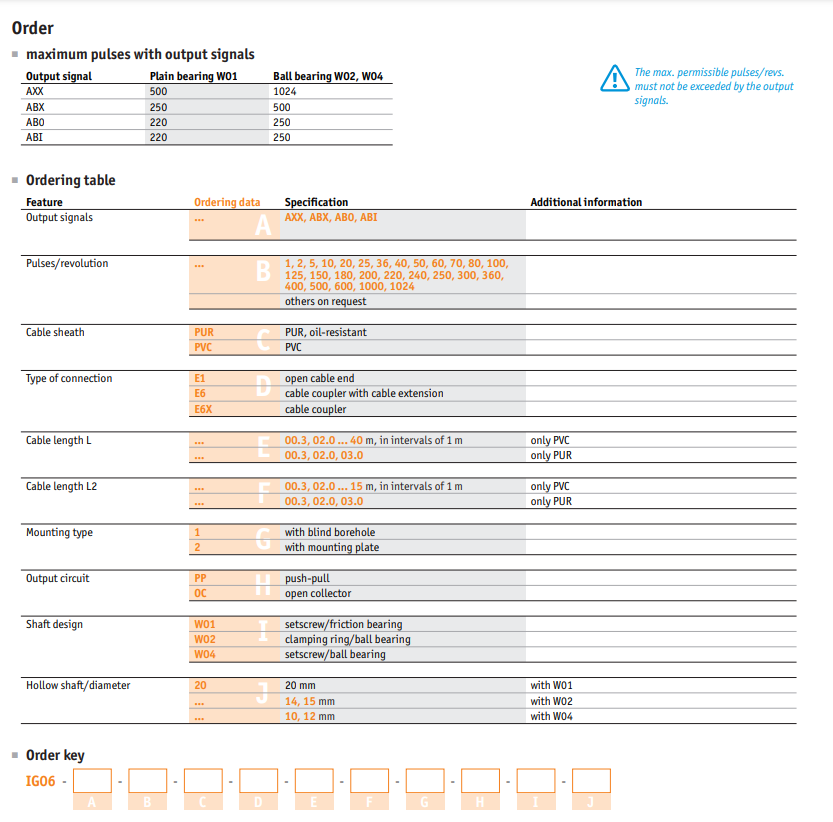

Description Ordering Information Specifications and Drawings


SIKO: Incremental Rotary Encoder (IG06 Series)

Sturdy plastic housing with through hollow shaft


The IG06 incremental encoder features a low-cost design with through hollow shaft and can be mounted easily.

Profile IG06:

  • Resolutions of max. 1024 pulses/revolution
  • Through hollow shafts up to ø20 mm
  • Housing made of impact-resistant plastic
  • Low-cost version

IG06-1329 (Incremental encoder type IG06)
  • output signals ABX
  • pulses/revolution 100
  • cable sheath PVC Standard
  • connection E1
  • PVC cable lgt.L (m) 02,0
  • mounting method M 2
  • output circuit OC open collector
  • shaft version W04 grub screw/ball bearing
  • hollow shaft/diam. 12
