SIKO: Absolute Encoder (WH5850 Series)

Absolute rotary encoder with hollow shaft and industrial Ethernet

The absolute optical multiturn rotary encoder WH5850 is particularly high-resolution and designed for time-critical applications. Thanks to the large selection of Industrial Ethernet interfaces, such as PROFINET (also with PROFIdrive profile), EtherNet/IP and EtherCAT, as well as short reaction times and 100% magnetic insensitivity, it is ideally suited for use in drive technology, warehouse technologies and factory automation. Thanks to the support of the latest PROFINET, EtherNet/IP and EtherCAT functions, it offers easy integration and optimum system availability!

Profile WH5850:

• Absolute optical encoder
• High-precision and up to 19 bit single-turn resolution
• PROFINET IO, EtherNet/IP interfaces
• Robust bearing construction as well as high shock and vibration resistance
• 100% magnetic insensitivity
• Fast commissioning and high system availability
• Industry 4.0 ready

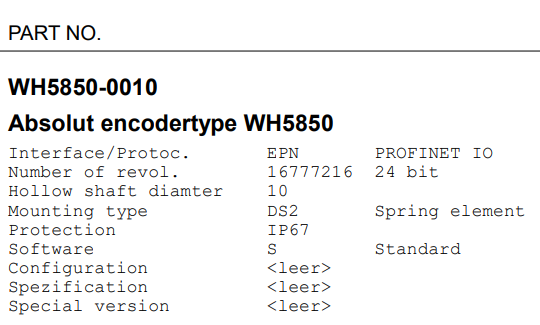

• Part NO. #WH5850-0010
•
