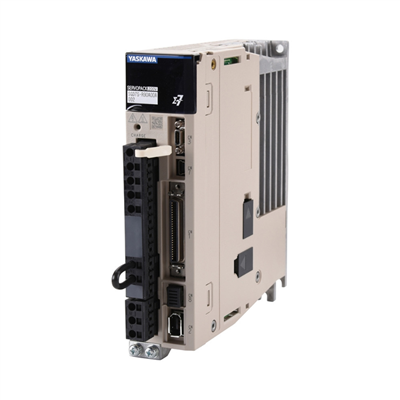

Yaskawa: AC Servo System Σ7 750W Drive SGD7S-5R5A00A
SGD7S-5R5A00A



Price : $735.00


Availability: Subject to availability
Order #: SGD7S-5R5A00A
Qty:

Description Ordering Information Specifications and Drawings




Supporting drive

Model: SGD7S-5R5A00A
AC Voltage:200V

Output Power:750W

Analog Control with Advanced Features

A Yaskawa SGD7S SERVOPACK meets the need for an analog voltage or pulse train control interface, while also offering the advanced capabilities of a Sigma-7 servo amplifier. A frequency response of 3.1 kHz assures high-speed response and improved settling time. a tuning-less mode and improved autotuning features eliminate the need to manually tune a servo, both at installation and in ongoing everyday use.



Model: SGM7J-08AFC6S
Buy Now

Type: Servo Motor

Phase: Three-phase

Output Power:0.75KW

Protect Feature: Drip-proof

Frequency:50/60Hz

AC Voltage:200V

Efficiency: High efficiency

Rated Torque:1.27Nm

Rated Speed:3000rpm

Rated Current:2.5A
No holding Brake
Encoder:24-bit resolution

Certification:VDE,CCC,ROHS,UL,CE





Supporting Accessory: Motor Power Cable

Model: JZSP-C7M03-03-E

Buy Now
3m standard cable with connectors and without brake wires




Supporting Accessory: Motor Encoder Cable

Model:
JZSP-CMP00-03-E
Buy Now

3 meters incremental encoder cable

Supporting Accessory: I/O Signal Soldered Connector Kit

Model:JZSP-CSI9-2-E

Buy Now
I/O Signal Soldered Connector Kit
