RTLC40-S, QUANTiC™ linear encoder tape scale A-6567-0040

RTLC40-S incremental encoder tape scale, compatible with QUANTiC encoder readheads.

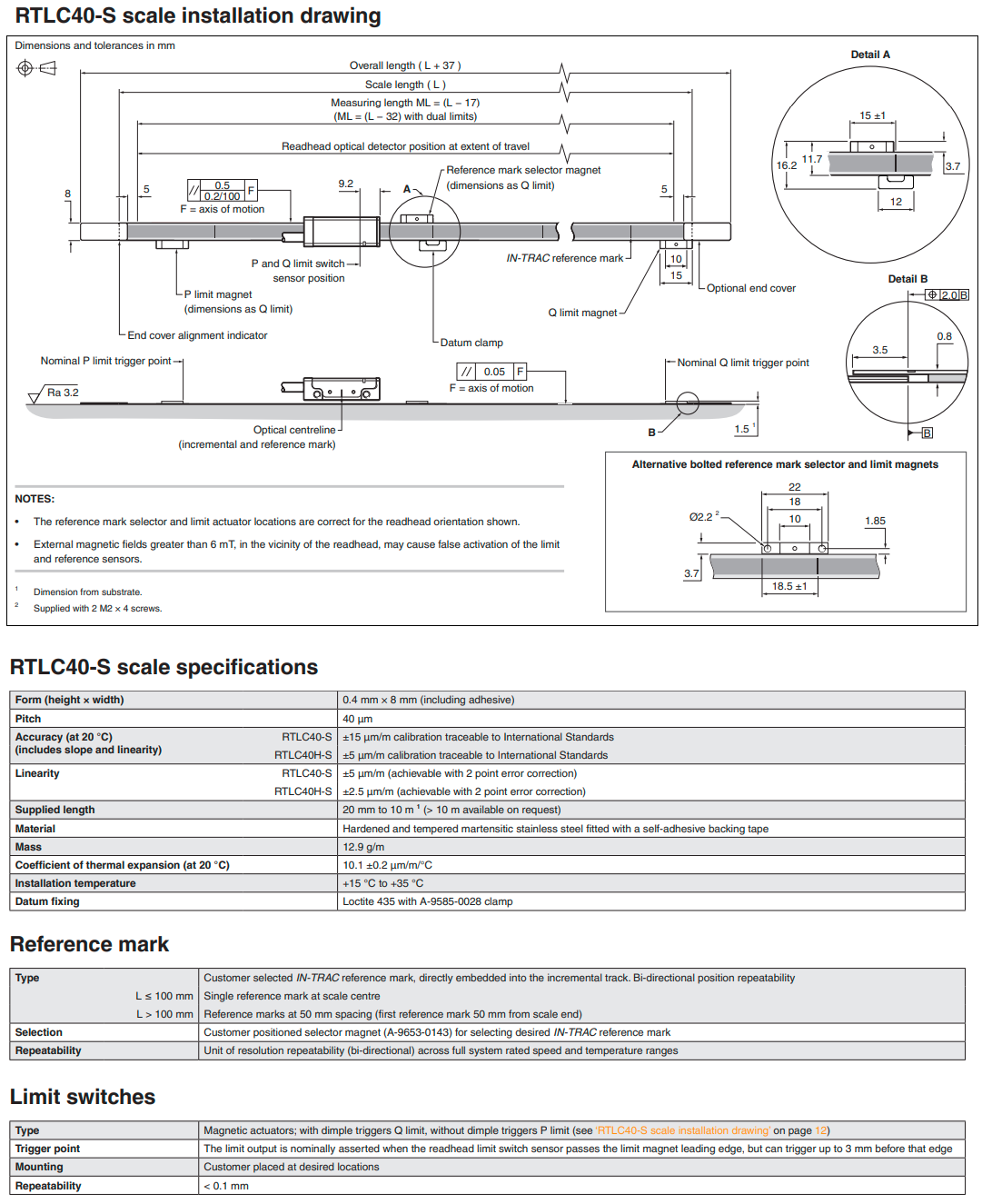

RTLC40-S is a 40 µm pitch low-profile stainless steel tape scale. RTLC40-S is applied to the substrate with self-adhesive backing tape, which is formulated to enable the scale to expand independently of the machine substrate. To complete the installation, the scale is clamped at one point to provide a datum position.Featuring 40 µm pitch incremental graduations and IN-TRAC customer selectable reference marks

RTLC 20 or 40 µm linear encoder tape scale combines ±5 µm/m accuracy with the ruggedness of stainless steel. Two versions are available: self-adhesive RTLC-S and RTLC for use with the revolutionary FASTRACK ™ track system from Renishaw. Designed for applications that demand high accuracy and an independent expansion coefficient with tape scale convenience, RTLC is read by Renishaw’s compact and reliable VIONiC™, TONiC™ and QUANTiC™ readheads. RTLC-S is laid onto the substrate using its self-adhesive backing tape. An application tool makes this a quick, simple and inexpensive process. A datum clamp is fitted at a single point to lock the scale to the substrate.

Why choose the RTLC scale?

±5 µm/m, or ±15 µm/m scale. Further improvement possible with 2 point error correction

RTLC expands at its own low thermal coefficient (10.1 ±0.2 µm/m/°C @ 20 °C)

Can be used with FASTRACK™ for very low hysteresis (RTLC20, RTLC40 and RTLC40H only)

Cross-section: 0.4 mm × 8 mm (RTLC20-S, RTLC40-S and RTLC40H-S) or 0.4 mm x 18 mm (RTLC20, RTLC40 and RTLC40H installed in FASTRACK™ carrier)

FASTRACK™ guide rails are pre-aligned in reels for cut-to-suit flexibility (RTLC20, RTLC40 and RTLC40H only)

Quick installation. FASTRACK™ adds fast scale replacement capability (RTLC20, RTLC40 and RTLC40H only)

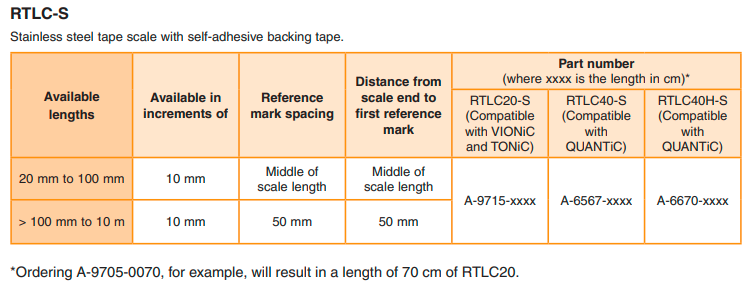

RTLC20-S, RTLC40-S and RTLC40H-S with self-adhesive backing for applications not suitable for FASTRACK™ carrier

High solvent immunity

Can be used as part of a Functional Safety system when used with TONiC™ FS readheads. IMPORTANT: End covers must be used with the RTLC20-S scale or RTLC20/FASTRACK system in order to be FS approved.
