Renishaw: RGH40 READHEADS FOR RGS40-G (RGH40H50F63R)
RG4 READHEADS FOR RGS40-G, Model: RGH40H50F63R



Alternate View


Renishaw
Price : $933.00


Availability: Lead Time 16 to 20 Weeks
Order #: RGH40H50F63R
Qty:

Description Ordering Information Specifications and Drawings


Renishaw: RGH40 READHEADS FOR RGS40-G (RGH40H50F63R)
Renishaw’s RGH40 readhead offers all the benefits of the market proven RG4 linear encoder system - high-speed, non-contact performance with filtering optics to guarantee reliable performance over light oils, dust and scratches.
The RGH40 readhead is designed for use with Renishaw’s RGS40-G (40 µm pitch chrome grating) glass scale and RESR angle encoder. Enclosed within a rugged, die-cast housing, the readhead uses proven solid state components to give outstanding reliability.

The RGH40 series readheads have been designed to the relevant EMC standards, but must be correctly integrated to achieve EMC compliance. In particular, attention to shielding and earthing arrangements is essential.
The RG2 and RG4 incremental encoder systems have a strong reputation established over many years for providing reliable and robust position feedback for a wide variety of applications. However, Renishaw is continually developing innovative incremental and absolute encoder technologies and our latest encoder systems offer a range of additional benefits including enhanced metrology, smaller package size, easier installation and detailed diagnostics. Therefore, the RG2 and RG4 series are not recommended for new designs.

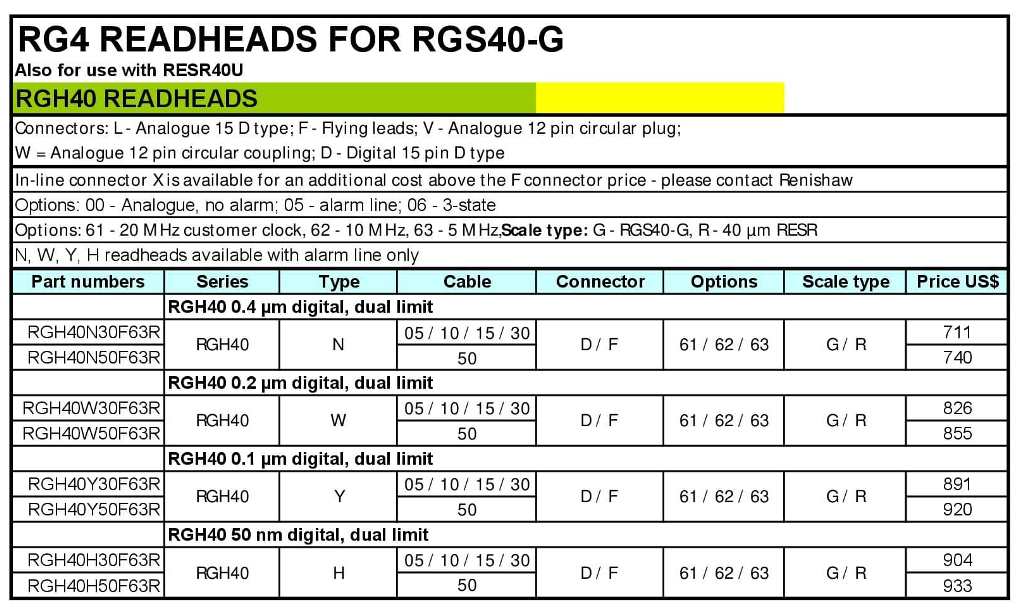

RG4 READHEADS FOR RGS40-G

Also for use with RESR40U

RGH40 READHEADS

Connectors: L - Analogue 15 D type; F - Flying leads; V - Analogue 12 pin circular plug;

W = Analogue 12 pin circular coupling; D - Digital 15 pin D type

In-line connector X is available for an additional cost above the F connector price - please contact Renishaw

Options: 00 - Analogue, no alarm; 05 - alarm line; 06 - 3-state

Options: 61 - 20 MHz customer clock, 62 - 10 MHz, 63 - 5 MHz,Scale type: G - RGS40-G, R - 40 µm RESR

N, W, Y, H readheads available with alarm line only

Part numbers

Series

Type

Cable

Connector

Options

Scale type

Price US$

RGH40 0.4 µm digital, dual limit

RGH40N30F63R

RGH40

N

05 / 10 / 15 / 30

D / F

61 / 62 / 63

G / R

711

RGH40N50F63R

50

740

RGH40 0.2 µm digital, dual limit

RGH40W30F63R

RGH40

W

05 / 10 / 15 / 30

D / F

61 / 62 / 63

G / R

826

RGH40W50F63R

50

855

RGH40 0.1 µm digital, dual limit

RGH40Y30F63R

RGH40

Y

05 / 10 / 15 / 30

D / F

61 / 62 / 63

G / R

891

RGH40Y50F63R

50

920

RGH40 50 nm digital, dual limit

RGH40H30F63R

RGH40

H

05 / 10 / 15 / 30

D / F

61 / 62 / 63

G / R

904

RGH40H50F63R

50

933
