RENISHAW: RESOLUTE absolute optical linear readhead (Mitsubishi) RL-40M-AS-050-C-50-N
RESOLUTE readhead, Mitsubishi linear Model: RL-40M-AS-050C-50-N



Alternate View


Renishaw
Price : $1,057.00


Availability: Lead Time 16 to 20 Weeks
Order #: RL-40M-AS-050-C-50-N
Qty:

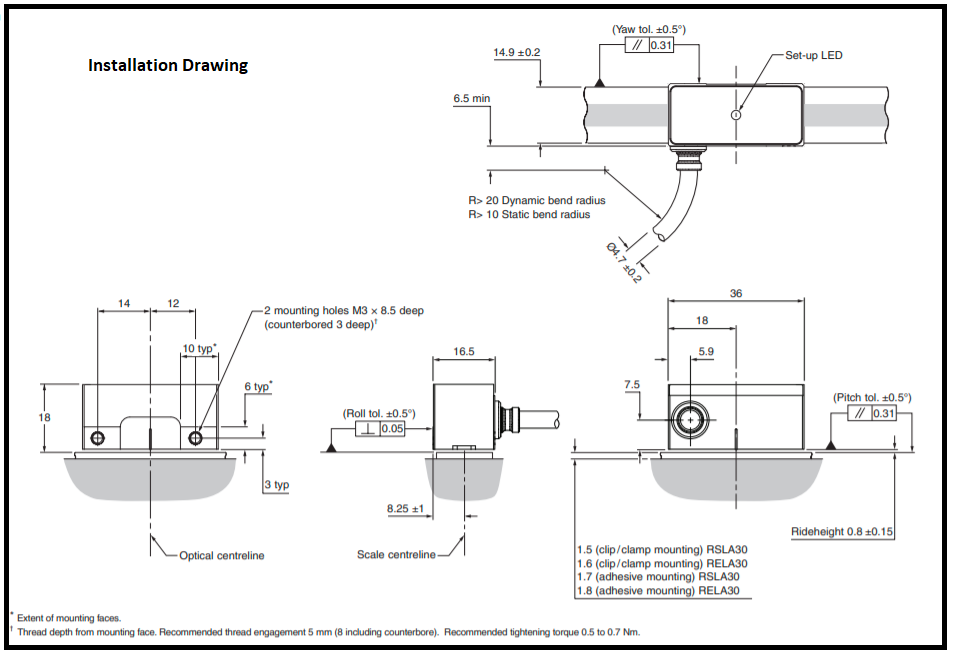

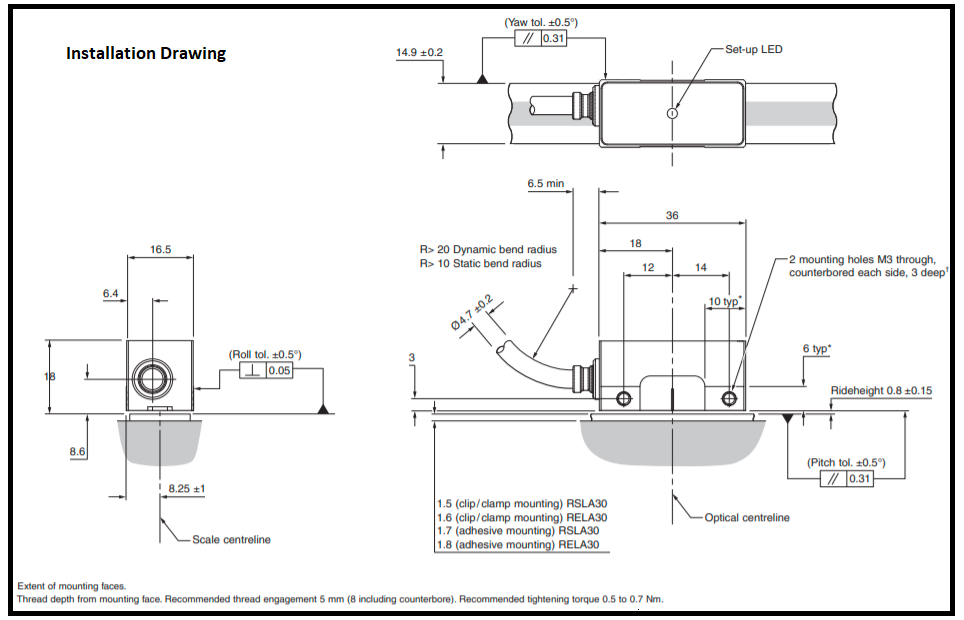

Description Ordering Information Specifications and Drawings


RESOLUTE™ absolute optical encoder with Mitsubishi serial communications RL-40M-AS-050-C-50-N
Renishaw has proudly announced that its Resolute absolute optical encoder can now be used in linear formats with Mitsubishi serial communication protocol. This enables the optical encoder to be utilized with Mitsubishi’s MELSERVO-J4 line of servo amplifiers, which are commonly used in various industries such as flat panel display (FPD) manufacturing, electronics assembly, factory automation as well as general motion control applications

RESOLUTE™ is a true-absolute fine-pitch optical encoder system with excellent metrology performance. Patented RESOLUTE encoder technology combines 1 nm resolution with exceptionally high speed, up to 100 m/s (36 000 rev/  min), reading from a range of high-accuracy linear tape and spar scales or angle encoder rings. RESOLUTE encoder systems use a single optical absolute track with a nominal pitch of 30 μm, combined with sophisticated optics. This ensures wide set-up tolerances, very low sub-divisional error of ±40 nm and ultra-low noise (jitter) of less than 10 nm RMS, resulting in better velocity control performance and rock solid positional stability. The RESOLUTE system ensures reliability with excellent dirt immunity, built-in separate position-checking algorithm and IP64 sealed readhead with wipe-clean recovery. RESOLUTE encoders are available with a variety of serial protocols.

Features

• True-absolute non-contact optical encoder system: no batteries required • Wide set-up tolerances for quick and easy installation • High immunity to dirt, scratches and light oils • Resolutions to 1 nm linear or 27 bit rotary • 100 m/s maximum speed for all resolutions (to 36 000 rev/min) • ±40 nm sub-divisional error for smooth velocity control • Less than 10 nm RMS jitter for improved positional stability • Built-in separate positionchecking algorithm provides inherent safety • IP64 sealed readhead for high reliability in harsh environments • Integral set-up LED enables easy installation and provides diagnostics at a glance • Operates up to 80 °C • Integral over-temperature alarm Compatible with: • RELA30 low-expansion, high-stability spar scales • RSLA30 stainless steel spars • RTLA30 with FASTRACK ™ carrier • RTLA30-S self-adhesive tape scale • RESA30 angle encoders • Ultra-high accuracy REXA30 angle encoders • Optional Advanced Diagnostic Tool ADTa-100

Resolute Readheads

Serial: BiSS, DRIVE-CLiQ, FANUC, Mitsubishi, Panasonic, Yaskawa

Resolute Scale Options

RTLA30, FASTRACK, RSLA30, RELA30, RKLA30-S

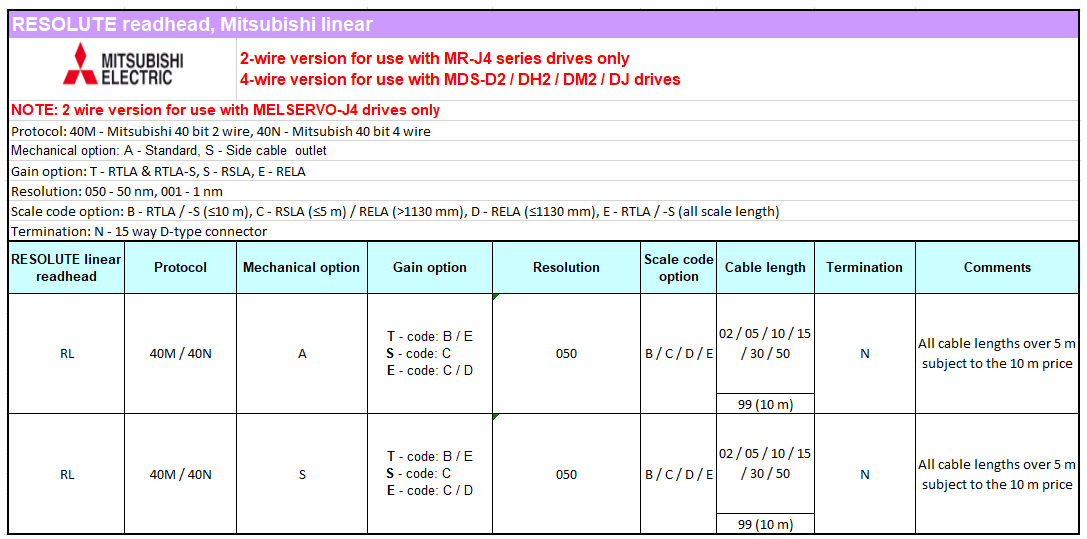

RESOLUTE linear readhead-Mitsubishi

Protocol

Mechanical option

Gain option

Resolution

Scale code option

Cable length

Termination

Price US$

RL-40M-AS-050-C-50-N

40M / 40N

A

S - Code: C .

050

B / C / D / E

02 / 05 / 10 / 15 / 30 / 50

N

1,057

RL-40M-AS-050-C-99-N

40M / 40N

A

S - Code: C .

050

B / C / D / E

99 (10 m)

N

1,123

RL-40M-SS-050-C-50-N

40M / 40N

S

S - Code: C .

050

B / C / D / E

02 / 05 / 10 / 15 / 30 / 50

N

1,092

RL-40M-SS-050-C-99-N

40M / 40N

S

S - Code: C .

050

B / C / D / E

99 (10 m)

N

1,157

RL-40M-AS-001-C-50-N

40M / 40N

A

S - Code: C .

001

B / C / D / E

02 / 05 / 10 / 15 / 30 / 50

N

1,071

RL-40M-AS-001-C-99-N

40M / 40N

A

S - Code: C .

001

B / C / D / E

99 (10 m)

N

1,137

RL-40M-SS-001-C-50-N

40M / 40N

S

S - Code: C .

001

B / C / D / E

02 / 05 / 10 / 15 / 30 / 50

N

1,106

RL-40M-SS-001-C-99-N

40M / 40N

S

S - Code: C .

001

B / C / D / E

99 (10 m)

N

1,171
