Renishaw: RKLF incremental 20 μm pitch linear scale (1000 mm length, ±5 μm/m accuracy) A-6767-0100

Renishaw: RKLF incremental 20 Î¼m pitch linear scale (1000 mm length, Â±5 Î¼m/m accuracy) A-6767-0100

Renishaw

Price : $550.00

Availability: 8-12 weeks
Order #: A-6767-0100

Qty:

Description

Renishaw: RKLF incremental 20 μm pitch linear scale (1000 mm length, ±5 μm/m accuracy) A-6767-0100

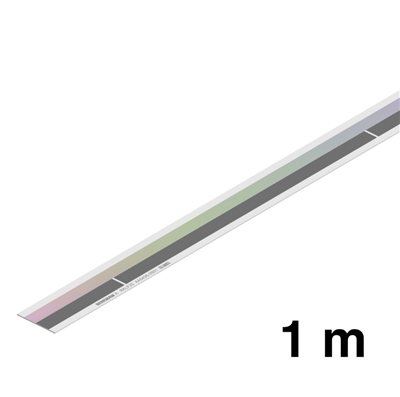

A-6767-0100 is a 1 m (1000 mm) length of RKLF20-S incremental encoder tape scale, compatible with ATOM and ATOM DX encoder readheads (for 20 µm ATOM DX readheads, contact your local Renishaw representative).

RKLF20-S is a 20 µm pitch narrow low profile stainless steel tape scale.

RKLF20-S is applied with self-adhesive backing tape and mastered to the machine substrate using rigidly fixed end clamps.

For partial arc applications we recommend RKLF40-S encoder scale.

Technical table

Accuracy (± µm)	5
Coefficient of thermal expansion	Matches that of substrate (when end clamps used)
Length (mm)	1000
Material	Stainless steel
Mount type	Substrate mastered
Scale length (m)	1000
Scale pitch (µm)	20
Scale type	6 mm wide x 0.1 mm thick flexible stainless steel tape (CTE matches the customer substrate)
