Parker: Rotary Servo Motors (SM Series)
Parker: Rotary Servo Motors (SM Series)



Price : $1,178.00

Price with Selected Options: $1,178.00


Availability: Subject to availability
Order #: SM


Options:

Qty:

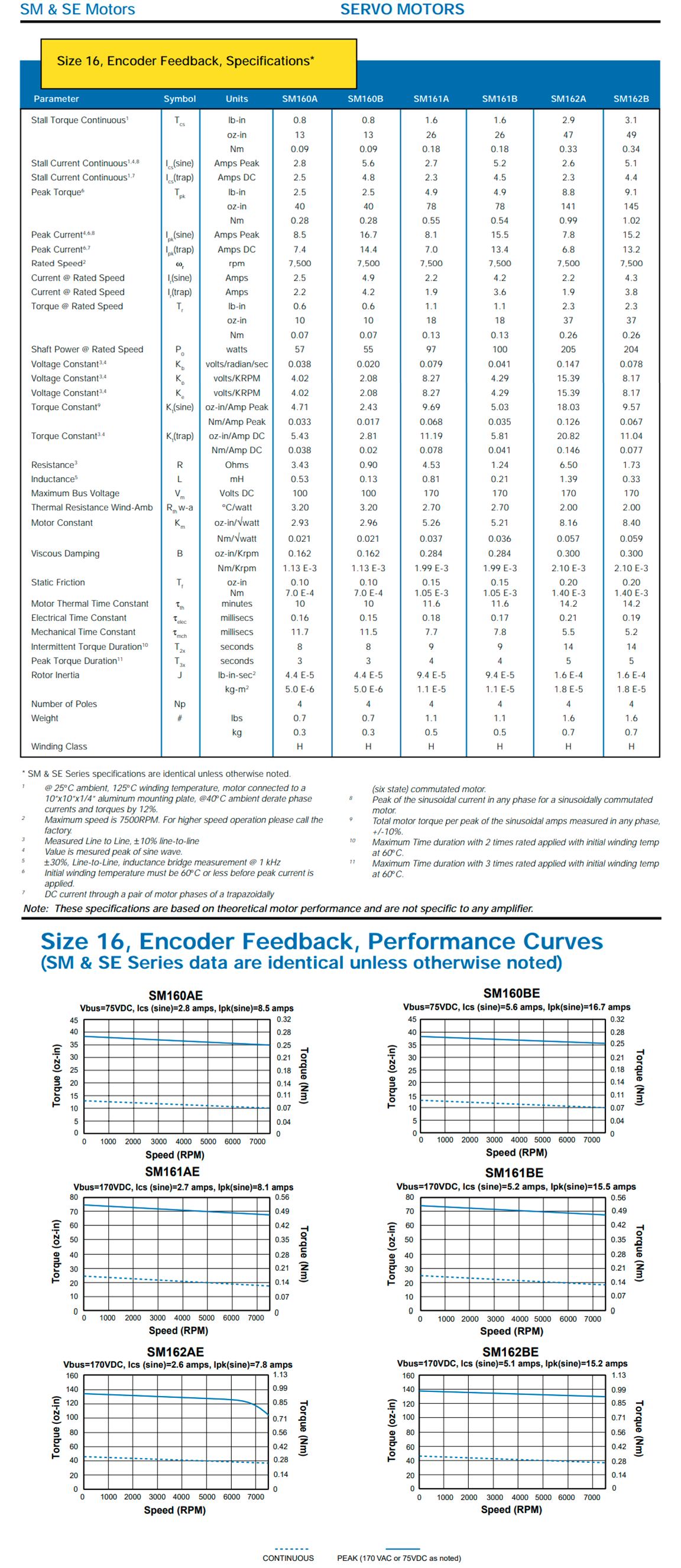

Description Ordering Information Specifications and Drawings

Parker: Rotary Servo Motors (SM Series)

Parker’s SM Series brushless servo motors feature a slotless stator design. This design eliminates all detent torque in the motor, allowing the SM Series motors to provide extremely smooth motion, especially at low speeds. The slotless design also creates a higher rotor inertia, which is ideal for applications involving high inertial loads (such as lead screws and belt drives).

The SM Series motors also feature a rugged anodized aluminum body and connector housing. An IP65 rating can be obtained on motors with MS connectors and an optional shaft seal. All SM motors are CE (LVD) compliant.

The SM Series servo motors are available with integrated planetary gearheads in ratios up to 100:1. Our unique package integrates the gearhead pinion into the motor shaft, reducing the overall package length by up to 2 inches.

Features

• Size 16 and 23
• 0.8 to 11.3 lb-in continuous torque
• Brushless construction
• Slotless design – Negligible detent torque – Reduced torque ripple – Medium inertia
• High-performance neodymium magnets
• Thermostat protected • TENV housing
• IP65 option • Feedback options – Encoder/Hall effect – Hall-effect only – Resolver
• Connectorization choices
• Special winding availability
• Ten day deliveries
• Two-year warranty
• CAD (.dxf) drawings available
• CE Compliant

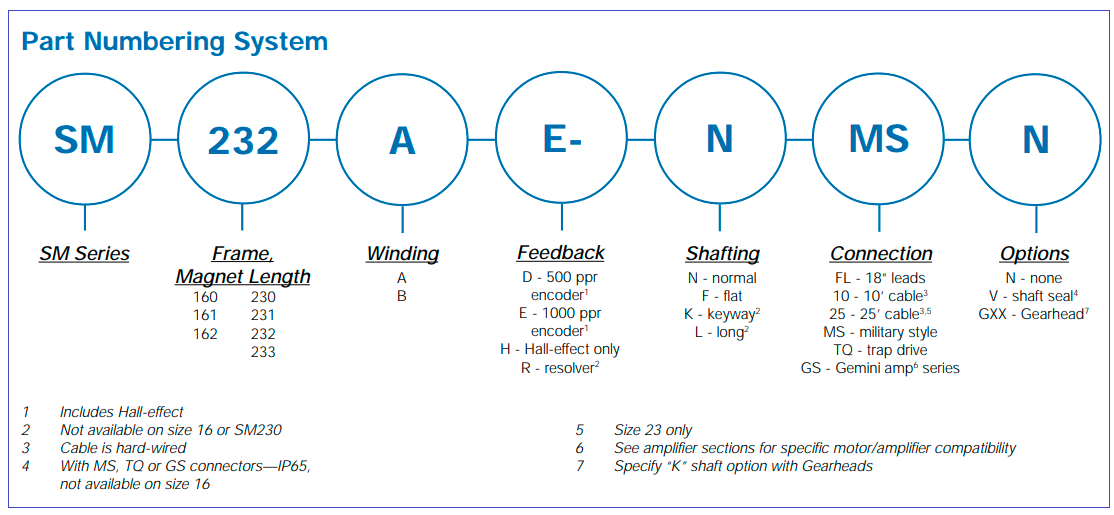

Model No:
SM161AE-N10N, SM161AE-NFLN, SM161AE-NLCN, SM161AE-NPSN, SM162AE-NFLN, SM162AE-NLCN, SM162AE-NPSN, SM231AE-NFLN, SM231AE-NLCN, SM231AE-NPSN, SM232AE-NFLN, SM232AE-NLCN, SM232AE-NPSN, SM232BE-NFLN, SM232BE-NLCN, SM232BE-NPSN, SM233AE-NFLN, SM233AE-NLCN, SM233AE-NPSN

User Guides
    		• CM16, CM23 Custom Servo Motors
  		• Cable Selection & Drawings, Motor Pinouts
  		• SM, BE, SE, N0 Servo Motors Technical File
    Software
  		• Sizing Software
    Download - Drawings and CAD files
  		• SM16 and SM23 PDF and DXF Drawings
  		• SM16x 3-D STP
  		• SM23x 3-D STP
