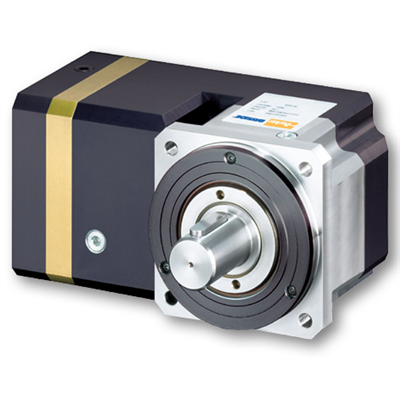

Parker: Generation II Stealth® (RX23 Series)

Parker's new Generation II Stealth® Series provides higher radial load, increased service life and ease of mounting than comparably sized planetary gearheads. The Stealth Generation II Helical Planetary Gearheads incorporate design enhancements to provide superior performance for the most demanding high performance applications. For larger frame sizes, Parker offers Generation I Stealth® Series gearheads in 142 to 220 mm and NEMA 56 frame sizes. For standard precision applications, the PV Series gearhead combines power and versatility in an economical package available in a wide range of options.

RX-series right-angled gearheads incorporate Parker's helical planetary technology in a lower cost package. Available in 60-115mm & NEMA 23-42 frame sizes, RX gearheads delivers high torque and quiet, smooth operation for less demanding servo applications.

The Stealth RX-series is Parker's medium grade right-angle servo gearhead. Available in 60 to 115mm and NEMA23 to NEMA42 frame sizes, RX gearheads deliver the best value with all the advantages of helical planetary technology. The RX-series helical planetary gearheads provide high torque, low backlash and high stiffness, making them ideal for high and medium level performance applications. They incorporate design enhancements to provide superior performance for the most demanding high performance applications - this level of performance at an exceptional value is what makes RX the gearhead of choice for today's lower cost servo motor applications.

Features:
