Parker: Belt Driven Linear Actuator OSPE25-60002-00000-P00000
Parker: Belt Driven Linear Actuator OSPE25-60002-00000-P00000



Call for Pricing

Price Quote Form


Order #: OSPE25-60002-00000-P00000


Model Number/Code*:

.

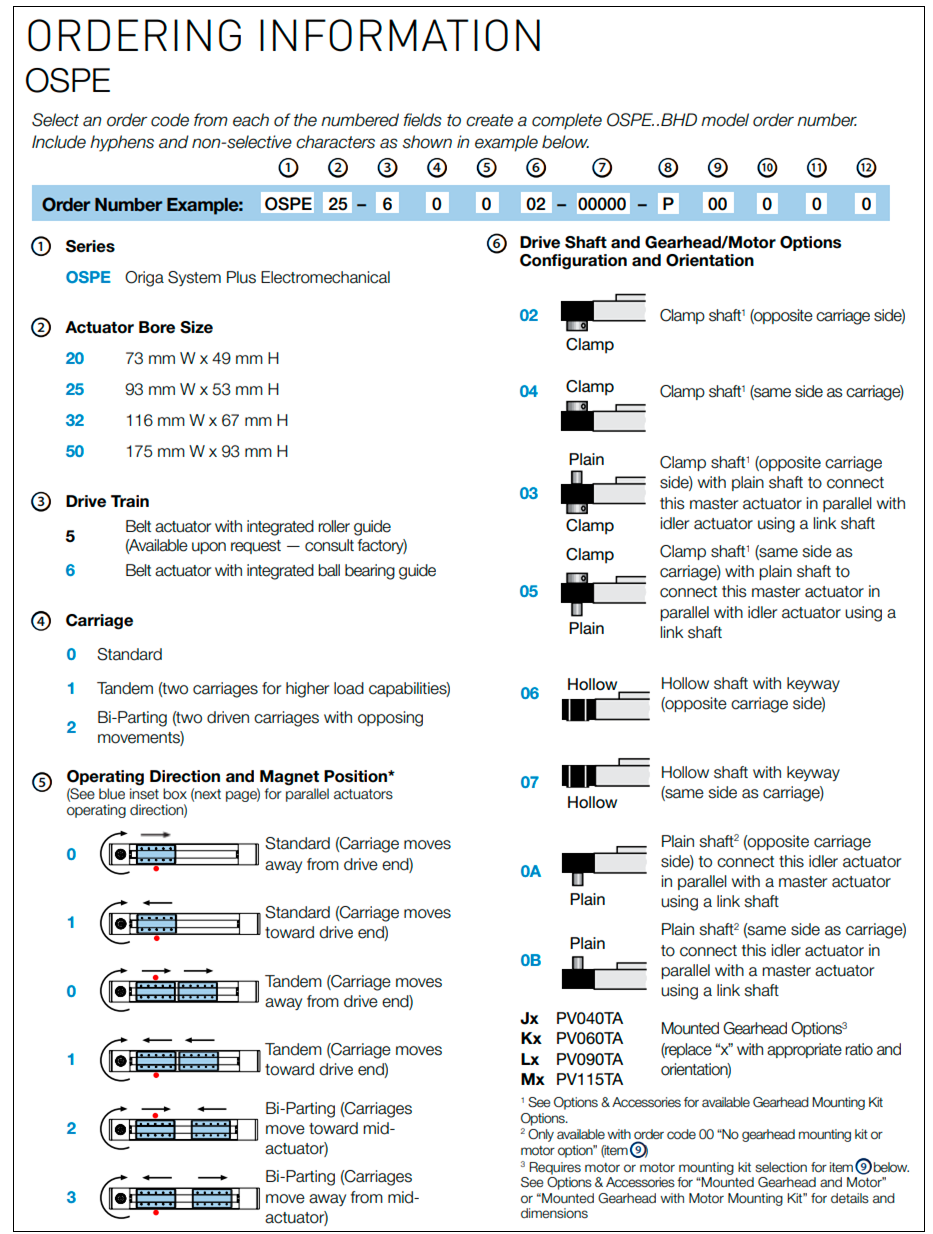

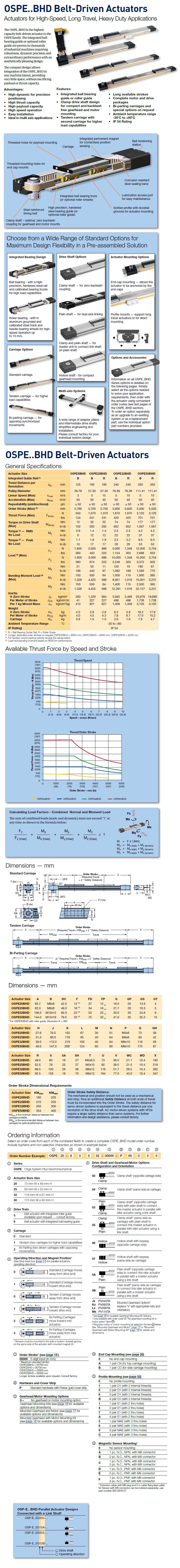

Description Ordering Information Specifications and Drawings


Parker: Belt Driven Linear Actuator OSPE25-60002-00000-P00000

The Parker OSPE..BHD belt driven actuator is the highest performing Series from the Origa System Plus family. This actuator, which comes standard with an integrated ball bearing guide, uses a side-driven belt design, offering such desirable features as high rigidity and a low-profile design.


Features:

  • 4 bore sizes available: 20, 25, 32 and 50

  • Max normal load = 15,000 N (3,400 lbs)

  • Standard travel up to 5 meters

  • ±0.05 mm/m bidirectional repeatability

  • Integrated ball bearing guide standard

  • High-speed roller bearing guide option – 10 m/s

  • IP54 strip seal

  • 8000 km life rating


  • Model No.: OSPE20-60002-00000-P00000, OSPE25-60002-00000-P00000, OSPE32-60002-00000-P00000, OSPE50-60002-00000-P00000


Downloads:

OSP-E Operating Instructions
OSPE-BHD - 3D CAD
VIDEO-OSPE-BHD
