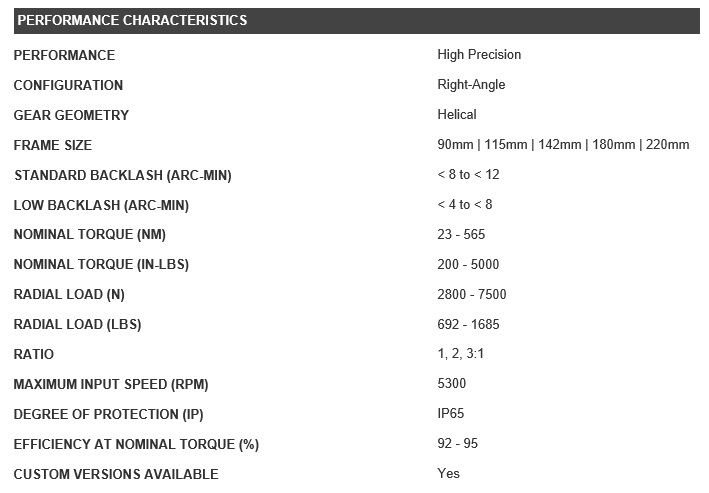

Specifications and Drawings

Parker: High Precision Right-Angle Multi-Drive Helical Gearheads/Low Ratio (RB Series)RB090-001

Stealth RB-series Multi-Drive gearheads offer the option of low gear ratios in a compact, right angle package. Available in 90-220mm frame sizes, RB-series gearheads feature Stealth helical gearing for high torque, high accuracy and quiet operation.

The Stealth RB-series Multi-Drive gearheads offer the option of low gear ratios in a compact, right angle package and features Stealth helical gearing for high torque, high accuracy and quiet operation. Available in 90-220mm frame sizes and with multiple ratios to choose from, you are sure to find a Stealth Multi-Drive to fit your servo motor application.

Features:

High Precision, Low Ratio Right-Angled Helical Gearhead
Frame Sizes: 90 – 220mm
Ratio Options: 1:1 - 3:1
High Torque/Low Backlash: helical planetary, spiral bevel gear geometry
Backlash: to < 8 arc-minutes (standard) / < 4 arc-minutes (optional)
Efficiency: up to 95%
Quiet Operation: less than 72db
Input Speeds: up to 3,000 RPM
Space Saving: Compact, right-angle design saves space in many applications.
Smooth, Quiet Operation and Long Life: Hardened, precision spiral bevel gears ensure quiet operation.
Quick, Error-Free Mounting to any servo or stepper motor using Parker's Servo Mount design.
Sealed Unit: Seals and O-rings provide IP65 protection to prevent leaks and to protect against harsh environments.
Spiral Bevel Gears: deliver high efficiency and high torque in a compact, right angle package.
IP65 protection
