Parker Bayside: Gearhead (PX90-010 Series)
Parker Bayside: Gearhead (PX90-010 Series)

Price : $1,393.00

Price with Selected Options: $1,393.00


Availability: Est. 8-12 weeks
Order #: PX90-010


Model Number/Code*:

Accessory1: 		MU90-001 [Add $158.00]

Accessory2: 		MU90-126 [Add $158.00]

Qty:
Description Ordering Information Specifications and Drawings


Parker Bayside: Generation II Stealth Gearhead (PX90-010 Series)

High performance at an exceptional value makes STEALTH PX the gearhead of choice for today''s lower cost servo motor applications. Stealth PX delivers the best value with the advantages of helical planetary technology.


Features:

  • High Torque: More than standard planetaries.

  • Lowest Backlash: Less than 15 arcminutes (10 arcminute option)

  • Quietest operation: Less than 70db

  • High Input Speeds: Up to 5,000 RPM

  • High Efficiency: Over 90% efficiency.


Specifications:

  • Configuration: In-line

  • Backlash: <8Arc/Minute

  • Frame Size: 90 mm

  • Gear Teeth: Helical Planetary

  • IP65

  • Noise: <70 db

  • Ratio: 10:1


Model No.: PX90-010-F01S2, PX90-010-L2, PX90-010-S2, PX90-010-V01S2

Downloads:

Catalog and Specifications
  		• Full Gearhead Catalog
  		• PX Gearhead How to Order

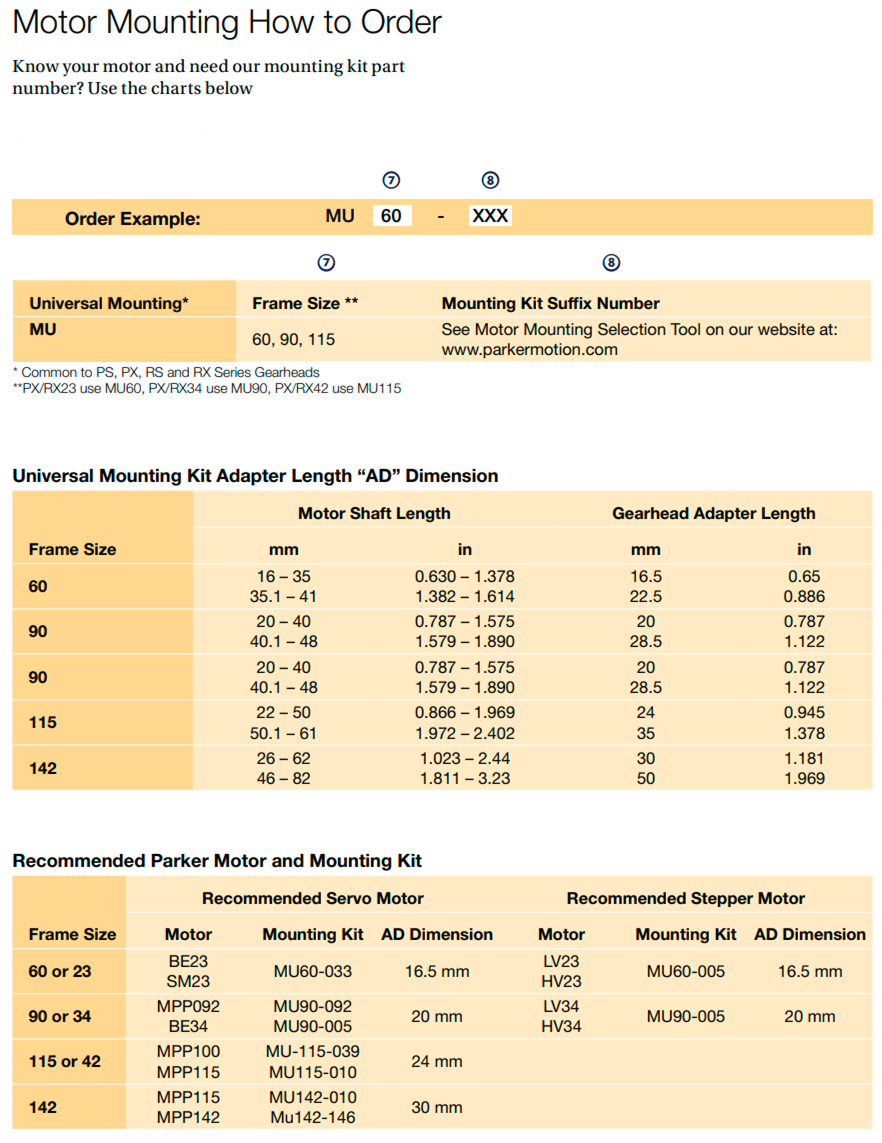

  		• Select Motor Mounting Kit
    User Guides
  		• 88-033494-01 CE Dec of Conformity for Gearheads
  		• FAQ: Custom Gearheads
  		• FAQ: Legacy PG & RA specifications, Upgrading to Stealth
  		• FAQ: Service Maintenance
  		• FAQ: Tabletop or Flange Face Option
  		• FAQ: Upgrading from Gen I to Stealth Gen II

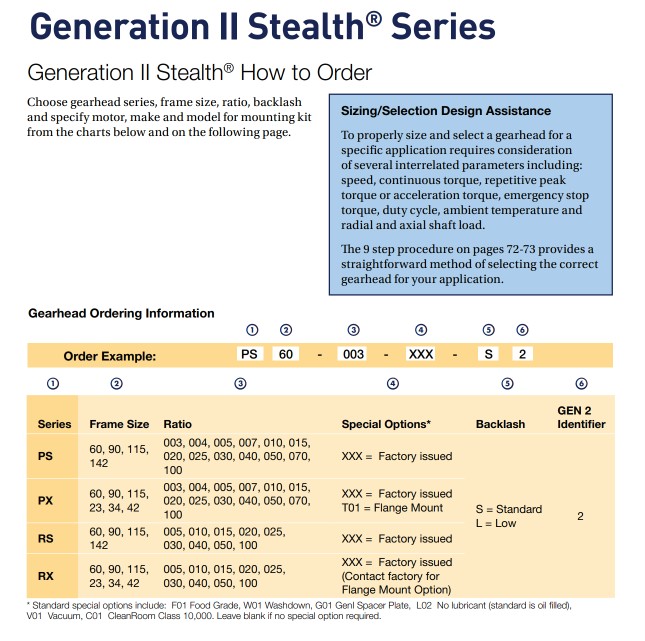

  		• Gen II Gearhead How to Order
  		• PX Mounting Instructions
    Video
  		• VIDEO: Gearhead Mounting Instructions
  		• VIDEO: Parker Gearheads - How to Select Your Mounting Kit
  		• VIDEO: Parker Planetary Gearhead Overview
    Model Number/Code: PX90-010-S2, PX90-010-L2, PX90-010-T01S2, PX90-010-F01S2, PX90-010-V01S2
    Accessory: MU90-001, MU90-126
