Panasonic: AC Servo Motors MINAS A6 Series MDMF752L1G6M - Middle Inertia, 7.5 kW
Panasonic: AC Servo Motors MINAS A6 Series MDMF752L1G6M - Middle Inertia, 7.5 kW



Alternate View
Price : $5,819.00

Quantity in Stock:5

Availability: New stock in oversea warehouse
Order #: MDMF752L1G6M
Qty:

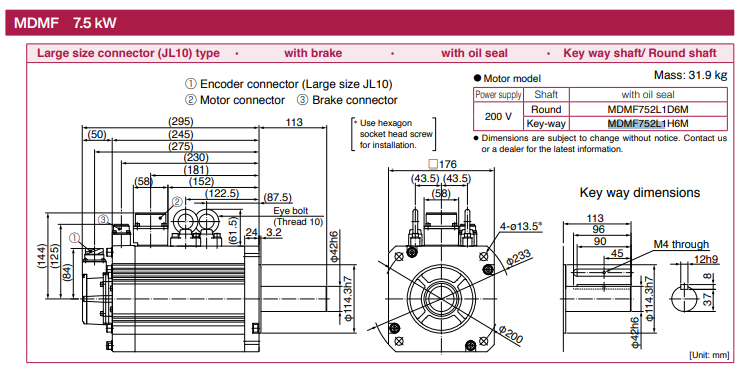

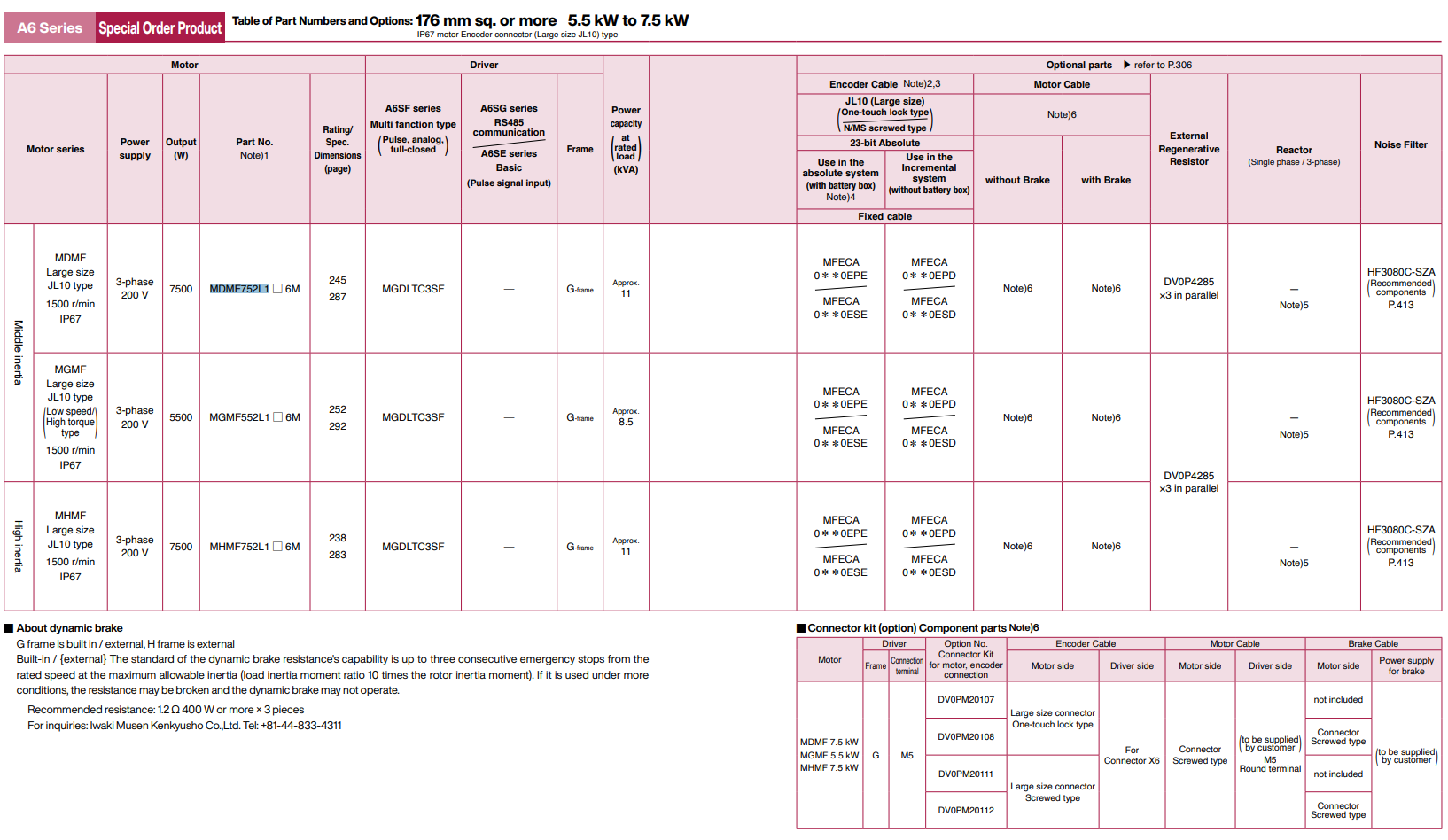

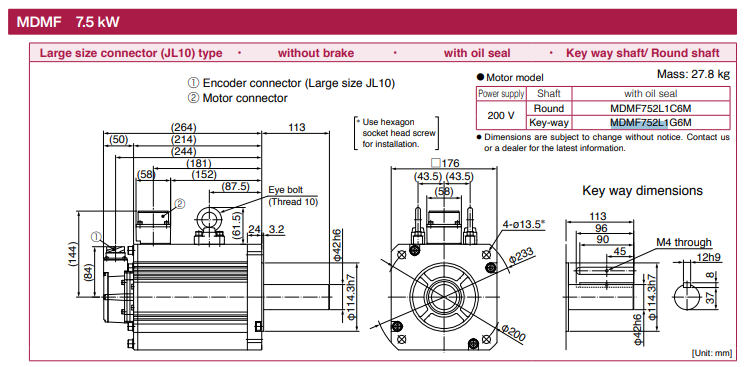

Description Ordering Information Specifications and Drawings


Panasonic: AC Servo Motors MINAS A6 Series MDMF752L1G6M - Middle Inertia, 7.5 kW

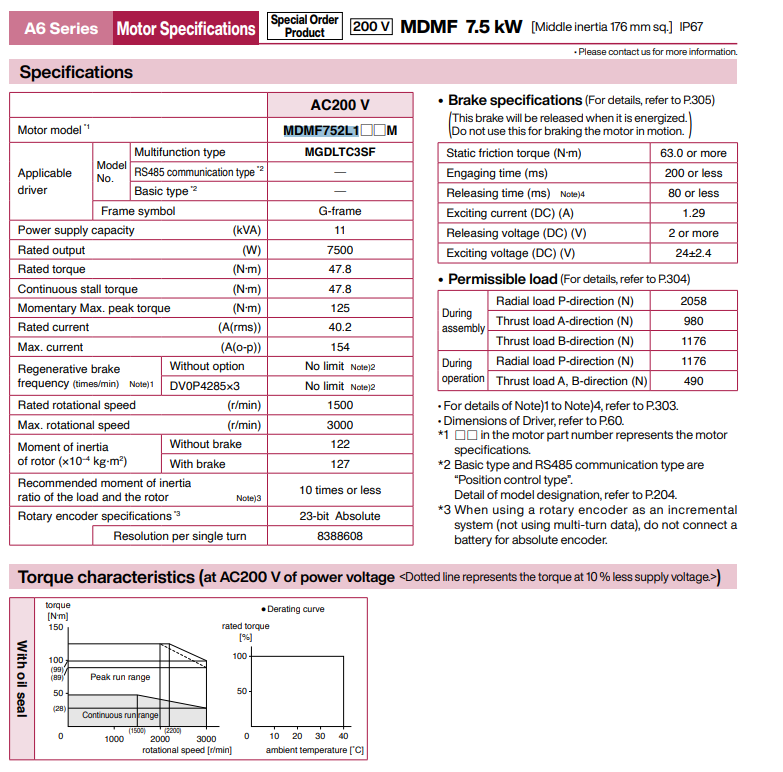

Motor Specifications:


Max. speed: 3000 r/min

Rated speed: 1500 r/min

Rated output: 7.5 kW

Rated torque: 47.8 Nm

Max. current: 154 A

Rated current: 40.2 A

Encoder: 23-bit absolute (8388608 pulse)
Holding brake: without

IP67: Connector type


Applicable Driver:

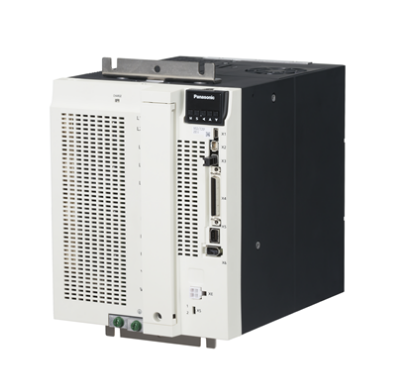

1) Multifunction Type: MGDLTC3SF011
