Panasonic: AC Servo Motors MINAS A6 Series MSMF102L1G6M - Low Inertia, 1.0 kW
Panasonic: AC Servo Motors MINAS A6 Series MSMF102L1G6M - Low Inertia, 1.0kW



Alternate View
Price : $711.20

Quantity in Stock:50

Availability: New stock in oversea warehouse
Order #: MSMF102L1G6M
Qty:

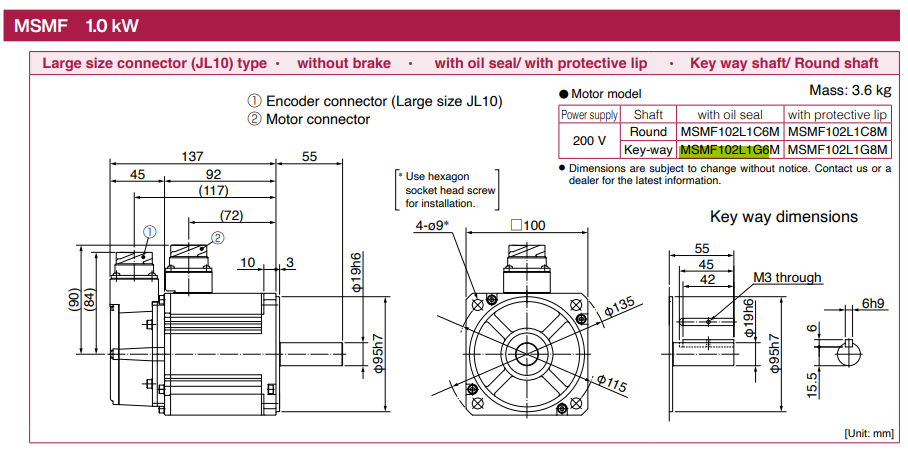

Description Ordering Information Specifications and Drawings


Panasonic: AC Servo Motors MINAS A6 Series MSMF102L1G6M - Low Inertia, 1.0 kW


Motor Specifications:


Max. speed: 5000 r/min

Rated speed: 3000 r/min

Rated output: 1.0 kW

Rated torque: 3.18 Nm

Max. current: 28 A

Rated current: 6.6 A

Encoder: 23-bit absolute (8388608 pulse)
Holding brake: without

IP67: Connector type

Applicable Driver:

1) Multifunction Type: MDDLT55SF

2) Basic Type: MDDLN55SE

3) RS485 communication type: MDDLN55SG
