LS Mecapion: L7SB Servo Drive AC400V Series
LS Mecapion: L7SB Servo Drive AC400V Series

Request Discount Coupon Over Qty5

Price with Selected Options: $0.00


Availability: Manufacturer Standard Lead Time
Order #: L7SB-


Model Number/Code*:

Qty:

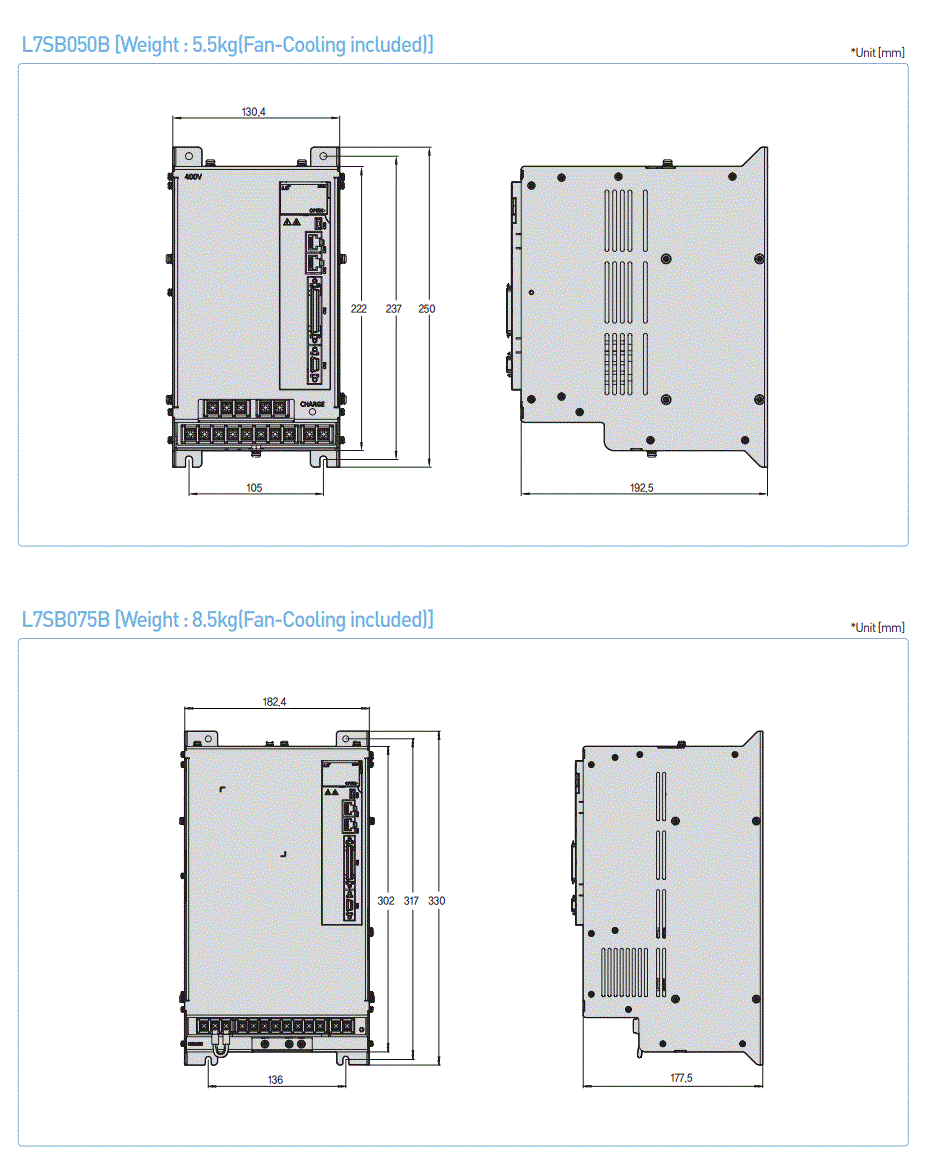

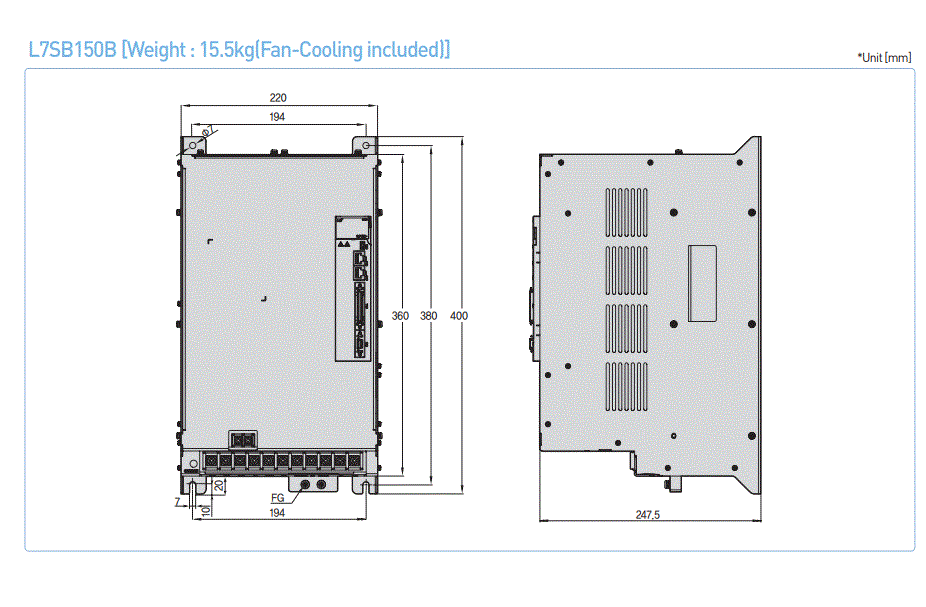

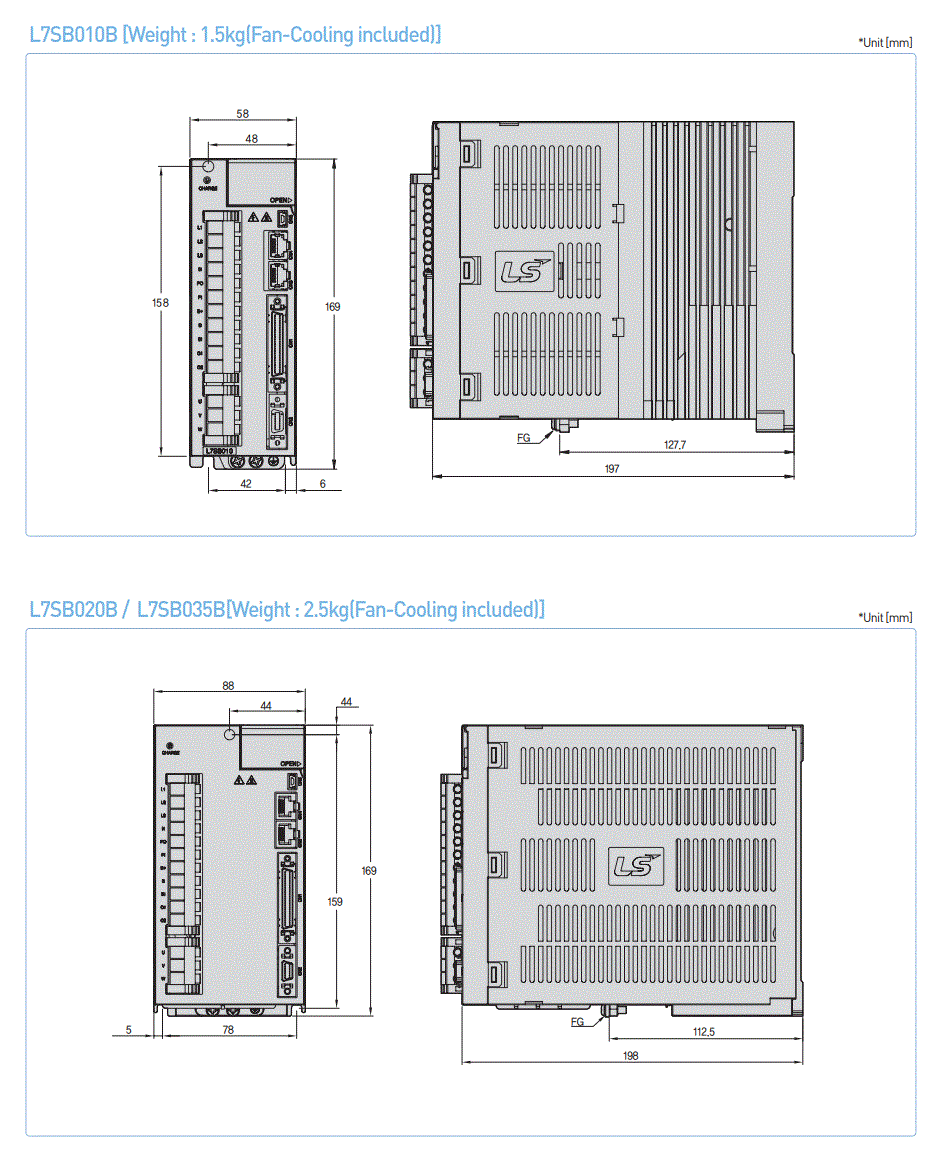

Description Ordering Information Specifications and Drawings


LS Mecapion: L7SB Servo Drive

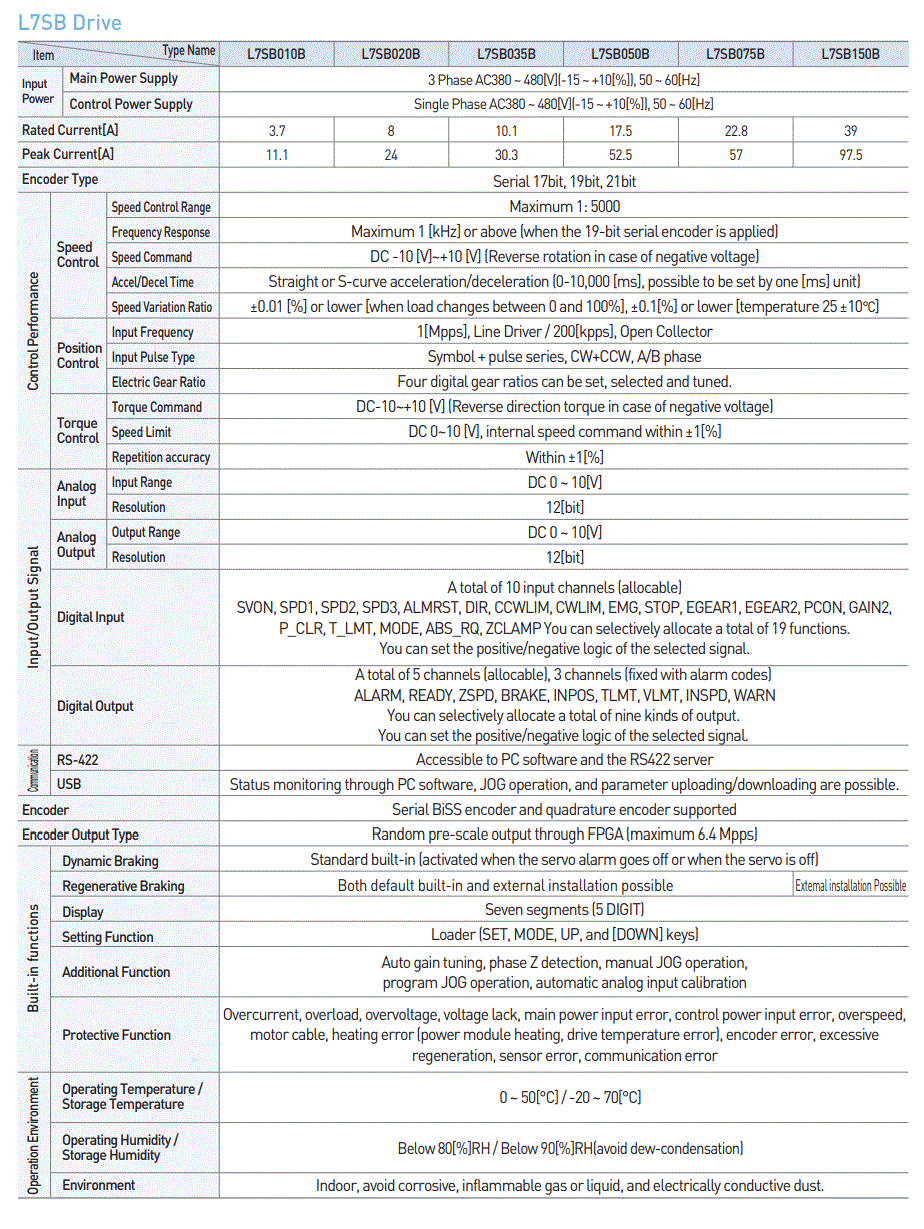

Specifications:

  • Main power supply: 3 Phase AC380 ~ 480[V]
  • Rated Current : 3.7[A]~39[A]

  • Encoder type: Incremental encoder, 19Bit Biss Serial encoder

  • Communication : RS-422 / USB2.0(HID)
  • Capacity : 1[kW]~15[kW]


L7SB Servo Drive List Price

Model

Old Model

Description

L7SB010B

XDL-L7SB010BE

3P-400V, 1.0KW,3.7A

L7SB020B

XDL-L7SB020BE

3P-400V, 2.0KW,8.0A

L7SB035B

XDL-L7SB035BE

3P-400V, 3.5KW,10.1A

L7SB050B

XDL-L7SB050BE

3P-400V, 15.0KW,17.5A

L7SB075B

XDL-L7SB075BE

3P-400V, 7.5KW,22.8A

L7SB150B

XDL-L7SB150BE

3P-400V, 15.0KW,39.0A


Cables and Connectors Accessory purchase link

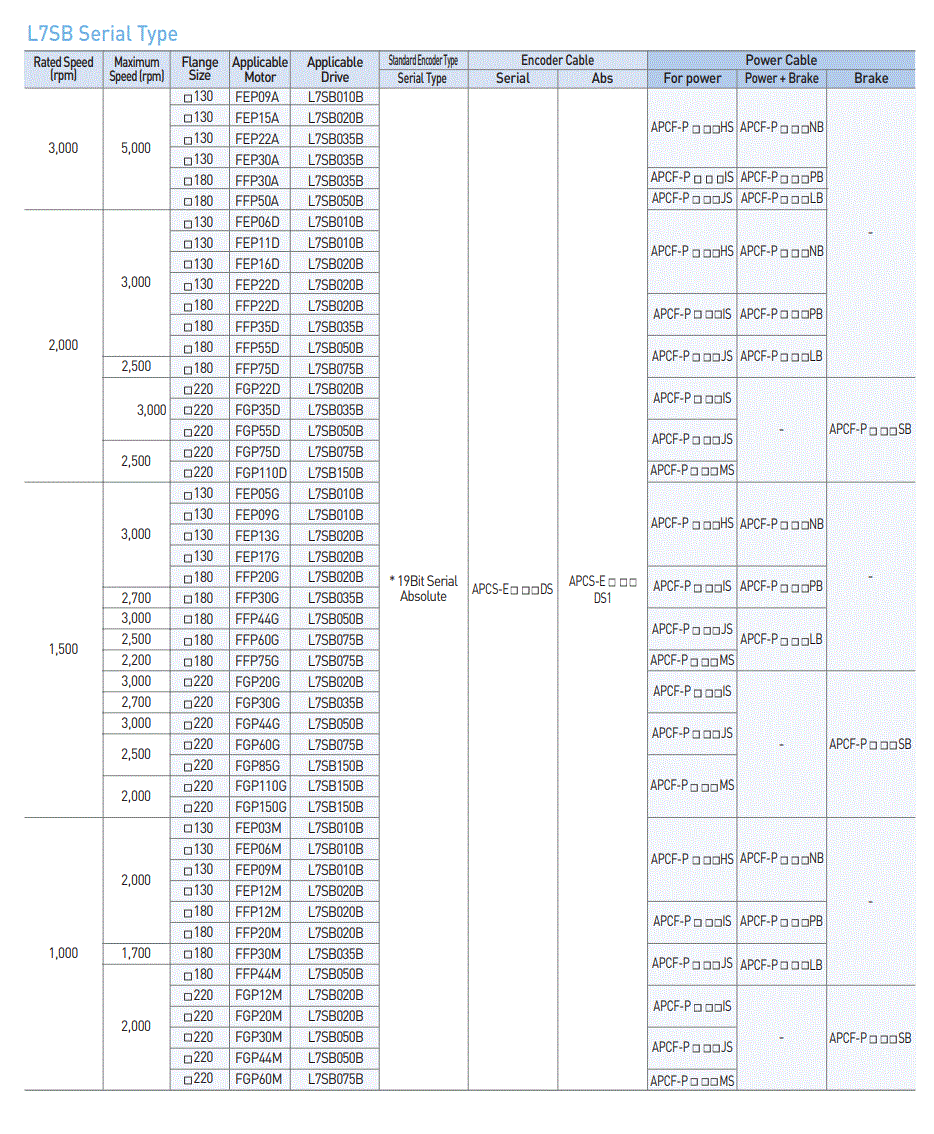

Motors Purchase link


Model Number/Code: L7SB010B, L7SB020B, L7SB035B, L7SB050B, L7SB075B, L7SB150B
