Panasonic: AC Servo Motors MINAS A6 Series MHMF092L1U2M - High Inertia, 1.0 kW
Panasonic: AC Servo Motors MINAS A6 Series MHMF092L1U2M - High Inertia, 1.0 kW



Alternate View
Price : $922.35

Quantity in Stock:25

Availability: New stock in oversea warehouse
Order #: MHMF092L1U2M
Qty:

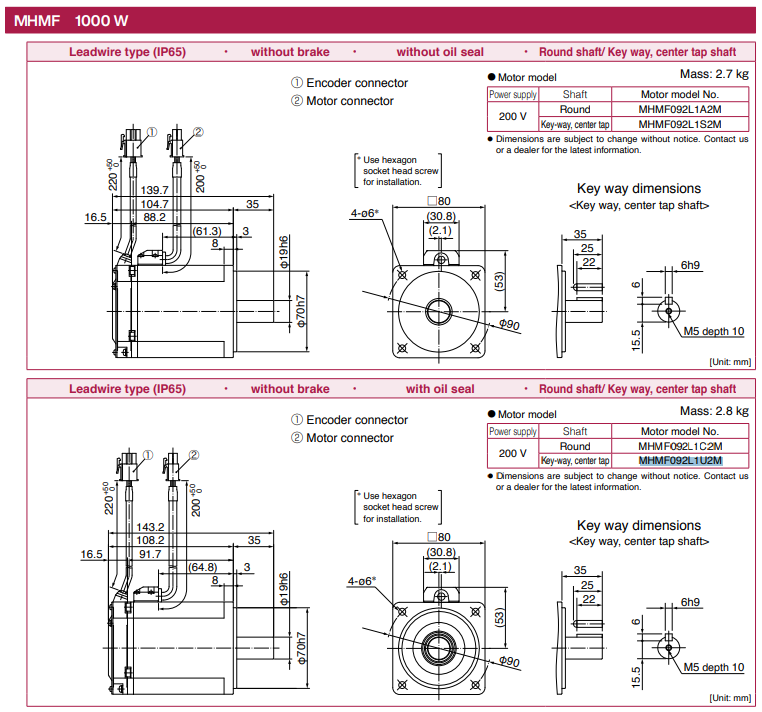

Description Ordering Information Specifications and Drawings


Panasonic: AC Servo Motors MINAS A6 Series MHMF092L1U2M - High Inertia, 1.0 kW


Motor Specifications:


Max. speed: 6000 r/min

Rated speed: 3000 r/min

Rated output: 1000 W

Rated torque: 3.18 Nm

Max. current: 28.2 A

Rated current: 5.7 A

Encoder: 23-bit absolute (8388608 pulse)
Holding brake: without

IP65: Leadwire type


Applicable Driver:

1) Multifunction Type: MDDLT55SF

2) Basic Type: MDDLN55SE

3) RS485 communication type: MDDLN55SG
