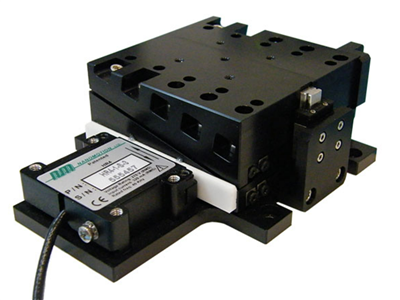

Nanomotion: Vertical Stages (FZS085 Series)

Nanomotion’s FZ Series Wedge Stages redefine precision motion control. Using a unique Z-wedge configuration, these stages deliver pure vertical movement via crossed roller bearings on an incline, driving a center wedge between a top and bottom plate. This design allows for unimpeded access over the entire surface and from all angles, delivering unparalleled control and versatility in a variety of applications.
