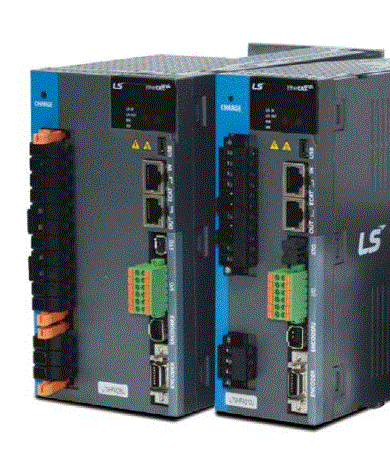

LS Electric:L7NHFA Series full loop Servo Drive
LS Electric:L7NHFA Series full loop Servo Drive




Price with Selected Options: $0.00


Availability: Usually Ships in 6 to 8 Weeks
Order #: L7NHFA-


Model Number/Code*:

Qty:

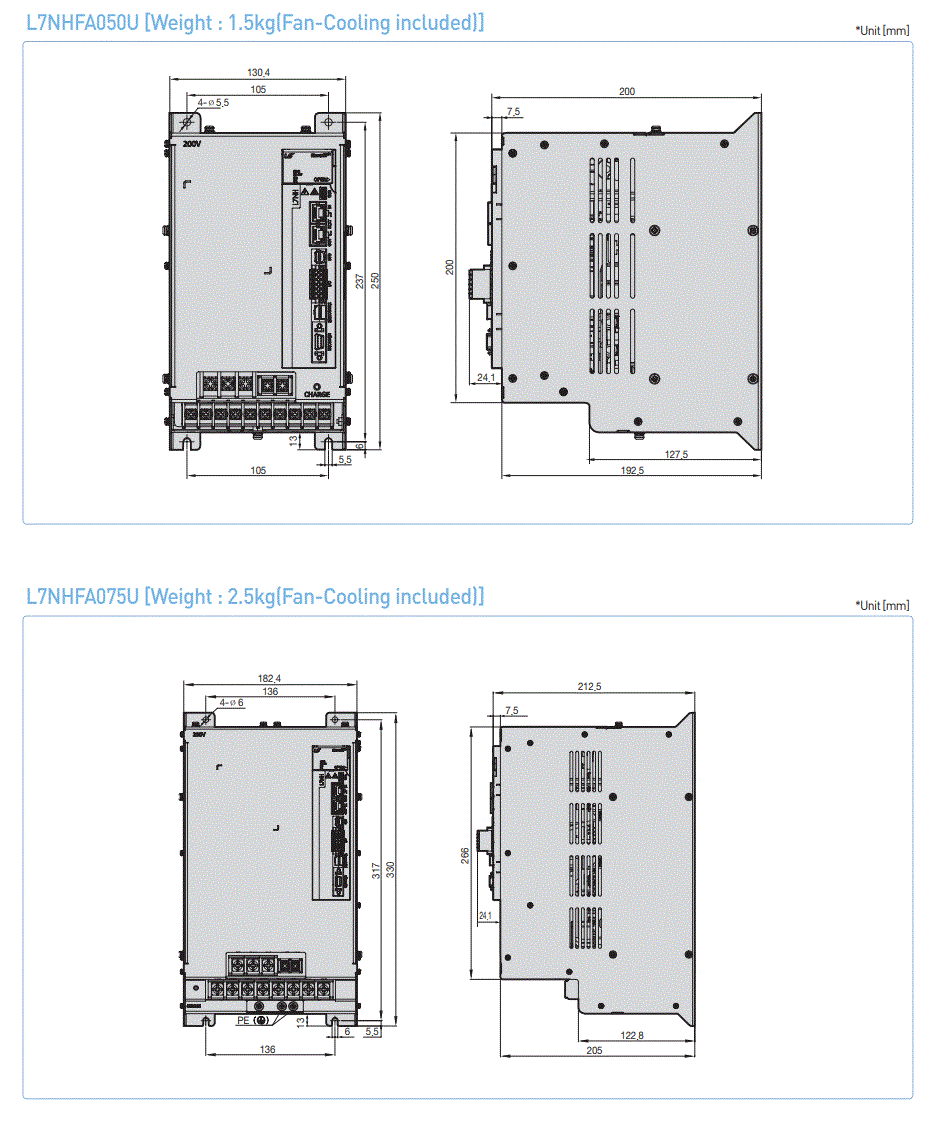

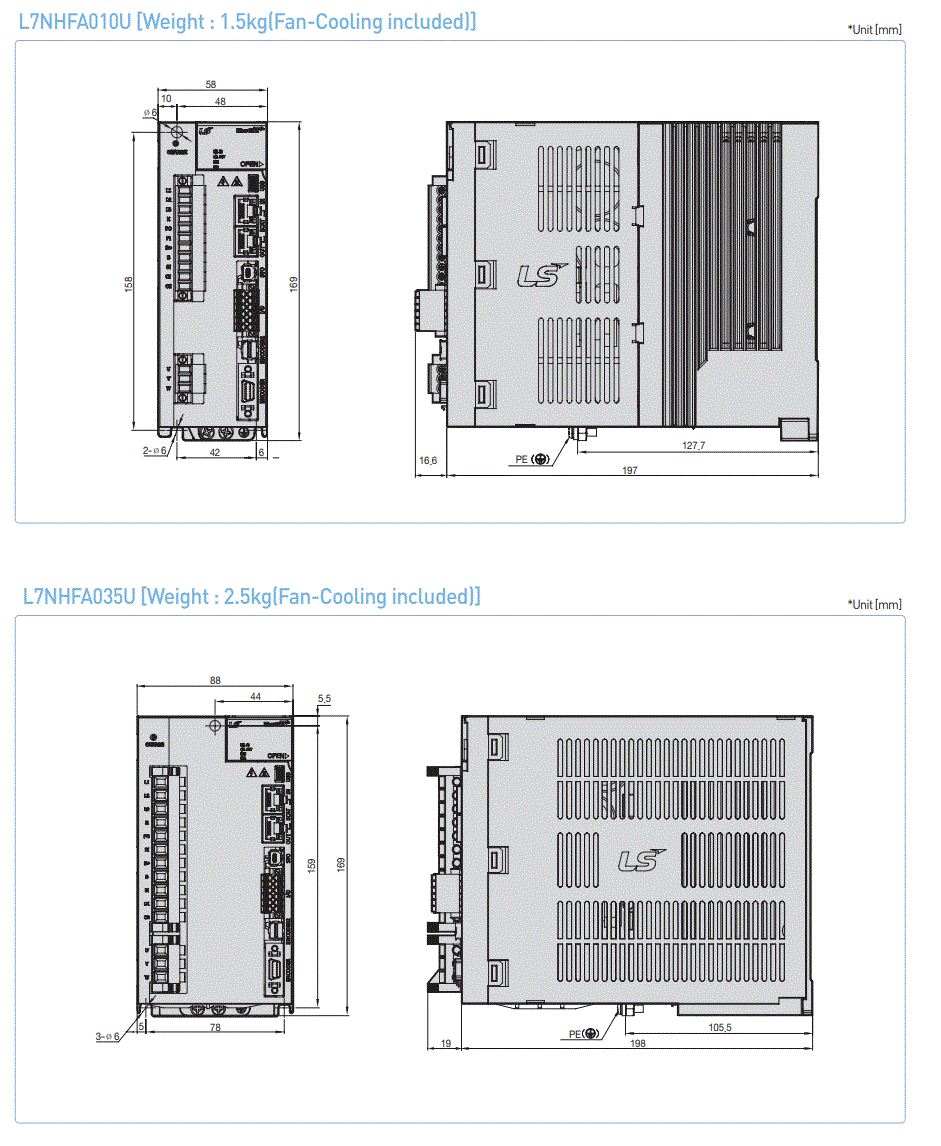

Description Ordering Information Specifications and Drawings

LS Electric:L7NHFA Series full loop Servo Drive

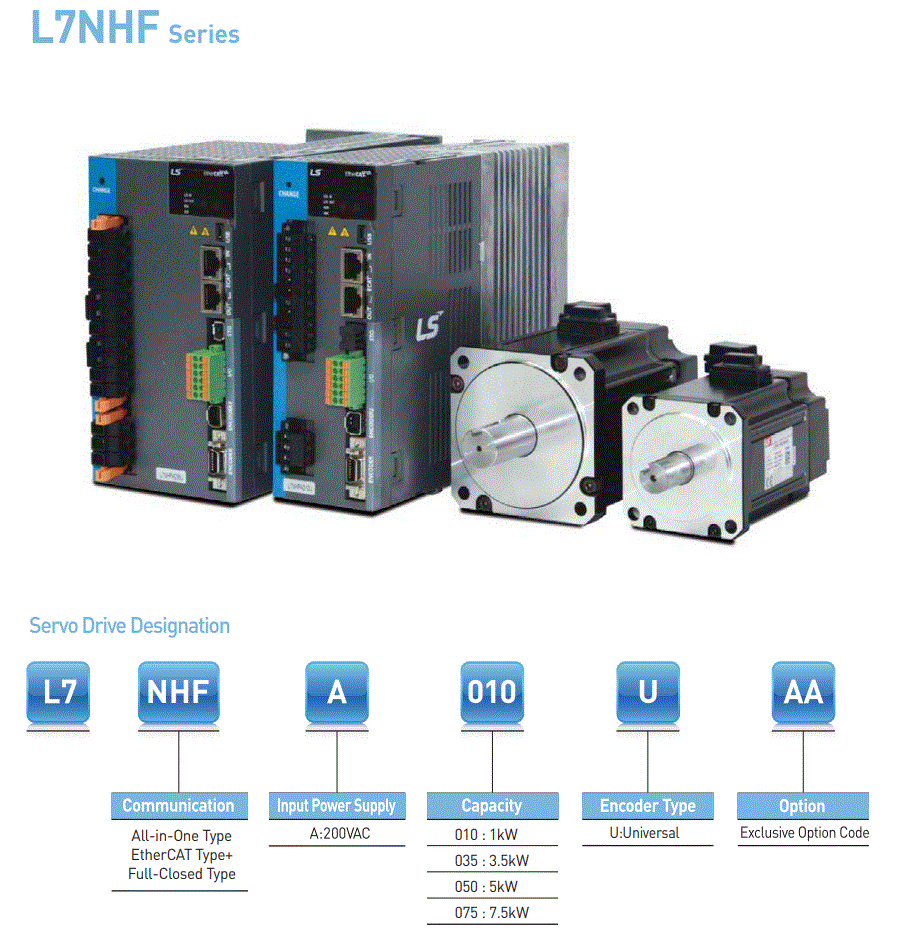

L7NHFA series is All-in-One Type, EtherCAT Type and Full-Closed Type.

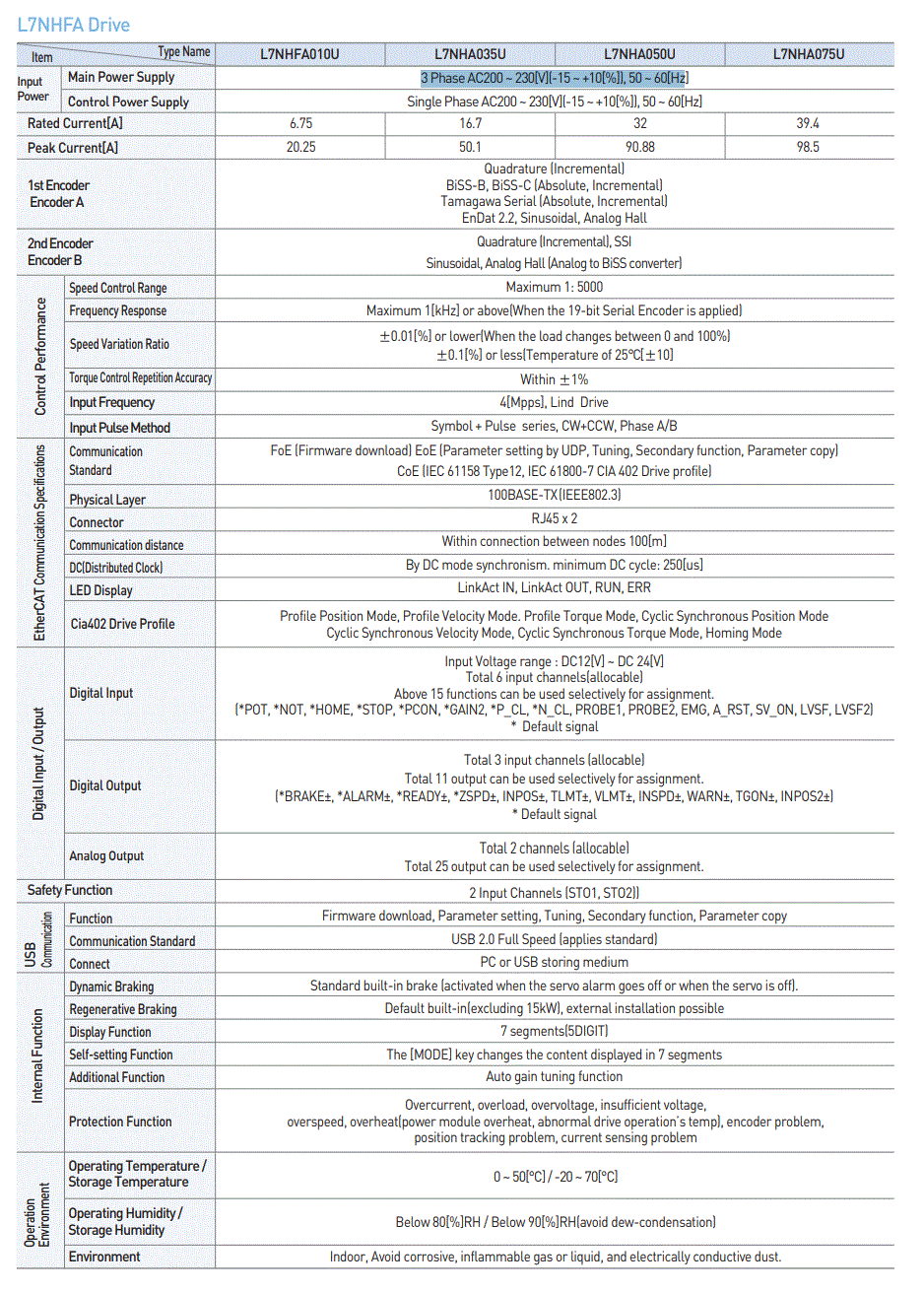

  • Input Power: 3 Phase AC220 ~230[V](-15 ~ +10[%]), 50 ~ 60[Hz]

  • Capacity: 1000[W]~7.5[kW]

  • Rated Current: 6.75[A]~39.4[A]

  • Encoder: Quadrature(Incremental) , BiSS-B and BiSS-C(Absolute, Incremental), Tamagawa Serial(Absolute, Incremental), EnDat 2.2, Sinusoidal, Analog Hall

  • Communication Type:FoE (Firmware download) , EoE (Parameter setting by UDP, Tuning, Secondary function, Parameter copy), CoE (IEC 61158 Type12, IEC 61800-7 CIA 402 Drive profile)

  • Cia402 Drive Profile: Profile Position Mode Profile Velocity Mode Profile Torque Mode Cyclic Synchronous Position Mode Cyclic Synchronous Velocity Mode Cyclic Synchronous Torque Mode Homing Mode.


    L7NHFA Series price list

    Model Description Unit Price(USD)
    L7NHFA010U

    3P-400V, 1.0KW,3.7A

    $892.50

    L7NHFA020U

    3P-400V, 2.0KW,8.0A

    $1220.50

    L7NHFA035U

    3P-400V, 3.5KW,10.1A

    $1367.50

    L7NHFA050U

    3P-400V, 15.0KW,17.5A

    $1798.00

    L7NHFA075U

    3P-400V, 7.5KW,22.8A

    $2187.00

  • Cables and Connectors Accessory purchase link

    Motors Purchase link
