Heidenhain: Coupling for CT 6002 (ID: 206310-01)
Heidenhain: Coupling for CT 6002 (ID: 206310-01) ​

Alternate View
Heidenhain

833-9MOTION [email protected].
Price : $181.00


Availability: Manufacturer standard lead time
Order #: 206310-01
Qty:


Description Ordering Information Specifications and Drawings


Heidenhain: Coupling for CT 6002 (ID: 206310-01)


The Heidenhain Part ID 206310-01 is a specialized precision mechanical coupling designed explicitly to connect the plunger of the CT 6002 (and CT 2502) incremental length gauge to a moving machine element for external position measurement. Because the CT 6002 features a free-floating plunger that extends by gravity, this component ensures a rigid, ultra-precise transfer of movement without introducing backlash or alignment errors that would compromise the gauge's high sub-micron system accuracy.

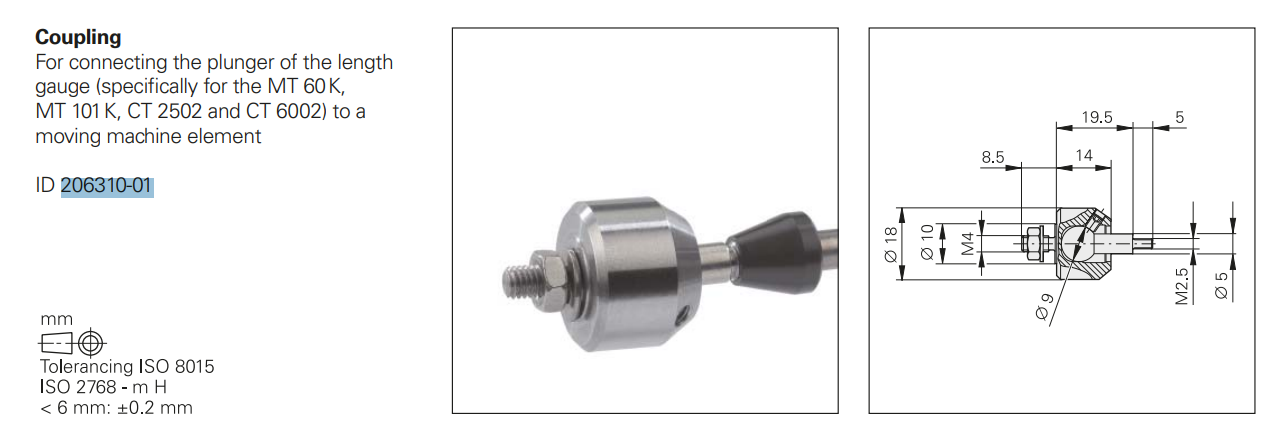

For connecting the plunger of the length gauge (specifi cally for the MT 60 K, MT 101 K, CT 2502 and CT 6002) to a moving machine element.
