CYCLONE: 100W Servo Motor (SEMA-01)
CYCLONE: 100W Servo Motor (SEMA-01)



Price : $313.60

Price with Selected Options: $313.60


Availability: Usually Ships in 1 to 2 Business Days
Order #: SEMA-01


Brake Option:

Encoder:

Shaft:

Qty:
Description Specifications and Drawings


Specifications:

  • Brand: CYCLONE
  • Model: SEMA-01
  • Rated Speed: 3000rpm
  • Maximum Speed: 5000rpm
  • Rated Power: 100W
  • Rated Torque: 0.3Nm
  • Peak Torque: 0.9Nm
  • Rated Current: 1.4A
  • Peak Current: 4.2A


Catalog

Buying Guide

SEMA Specs.

SEMA Torque Curves

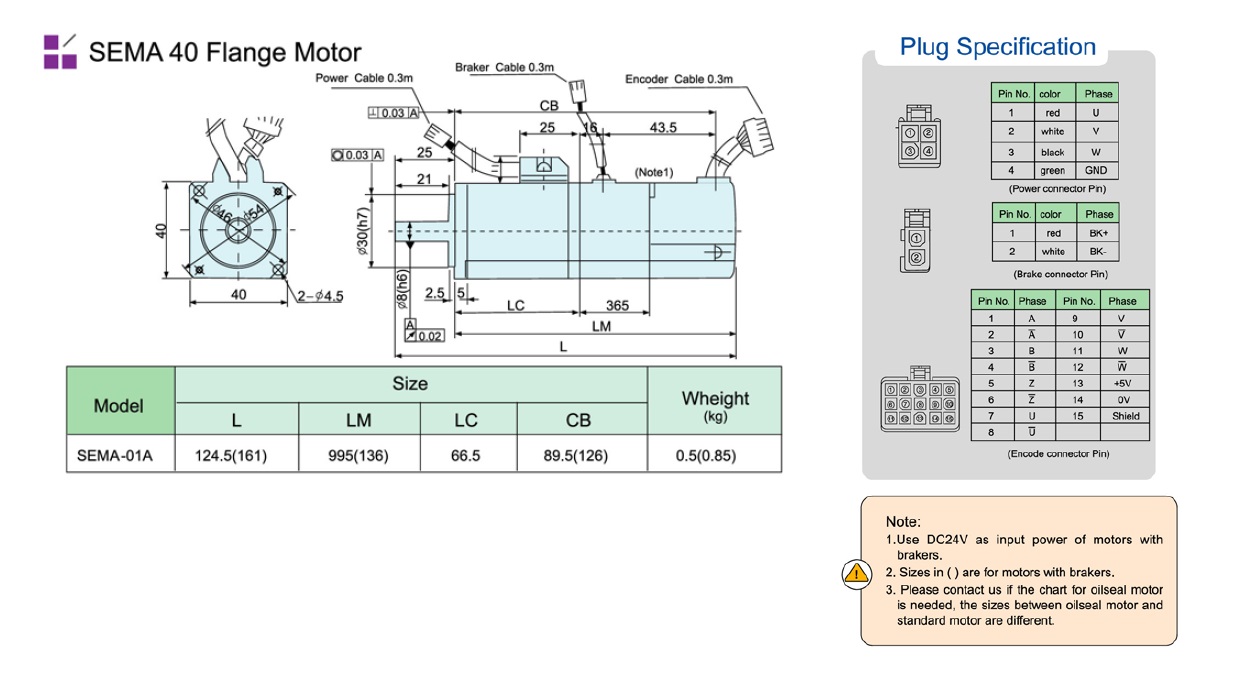

SEMA 40 CAD
