AllMotion: Stepper/Servo Accessories EZBUS9STN-RoHS

Daisy-Chaining Cards - EZBus Station 9 Way

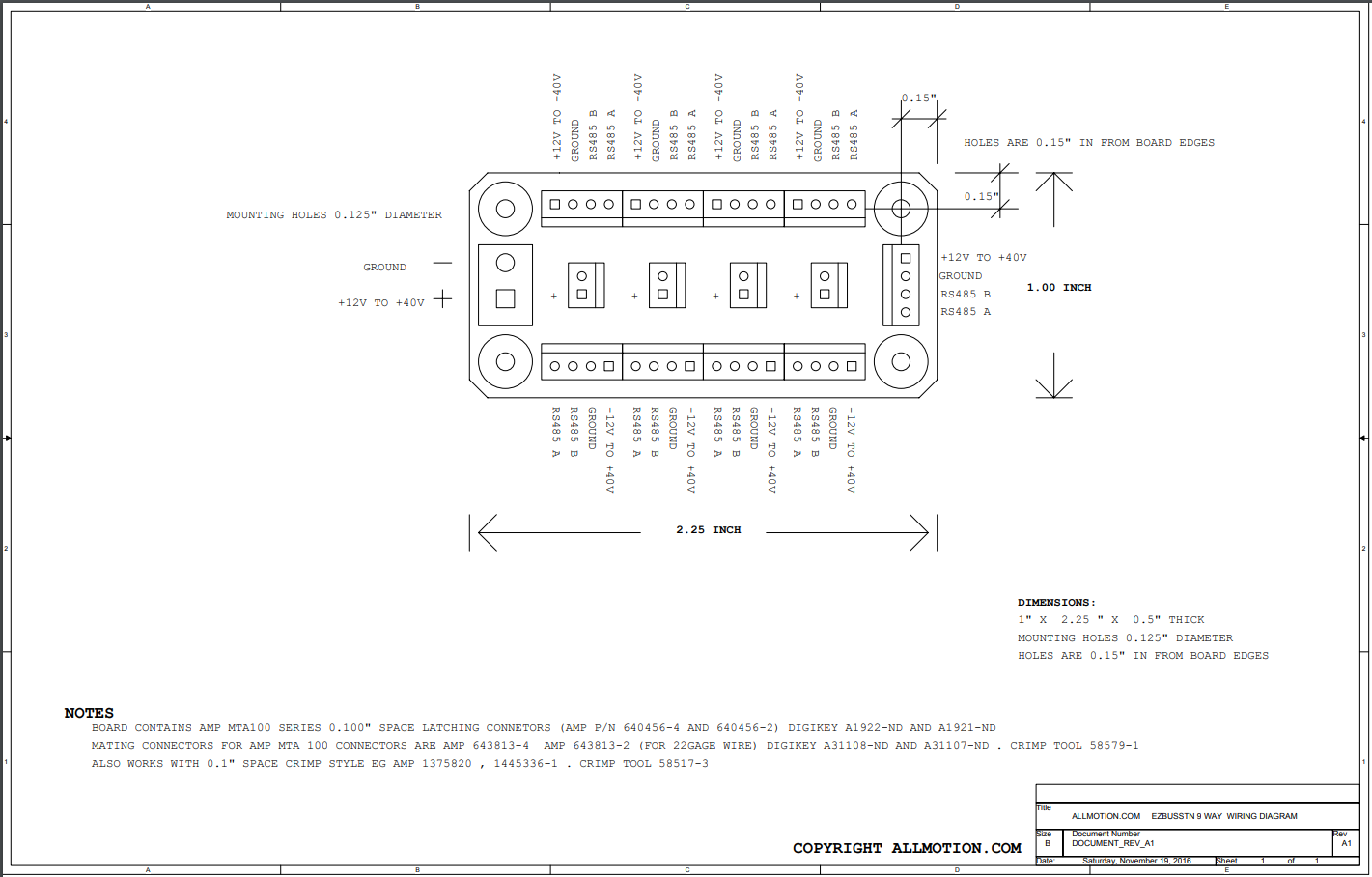

As the perfect companion to the EZQuad Servo, the EZ Bus Station allows easy daisy-chaining of the 4Wire (power + communication) connectors as well as having four power only connectors . Each EZ Bus Station 9 Way will allow eight Drives to be attached to one incoming 4 wire bus, or will allow 7 Drives to be attached plus one Bus cable to continue on to another Daisy-Chaining point.

The connections are one to one for the four wires.
