AllMotion: Stepper Motor Control Starter Kits INTELLI-INCHSK

INTELLI-INCH-JY Starter Kit

Stepper Motor Control Starter Kits

Everything to get your Motor running within half an hour!

The Intelli-Inch Starter Kit combines one INTELLI-INCH-JY Stepper Motor Controller + Driver and all cables required for the first time user to get their Stepper Motor moving in less than half an hour. The user needs to provide only a power supply, stepper motor, and a PC.

Measuring just 1" X 1" , the Intelli-INCH Stepper Driver + Controller was designed to allow users to create miniature motion control solutions with no programming.

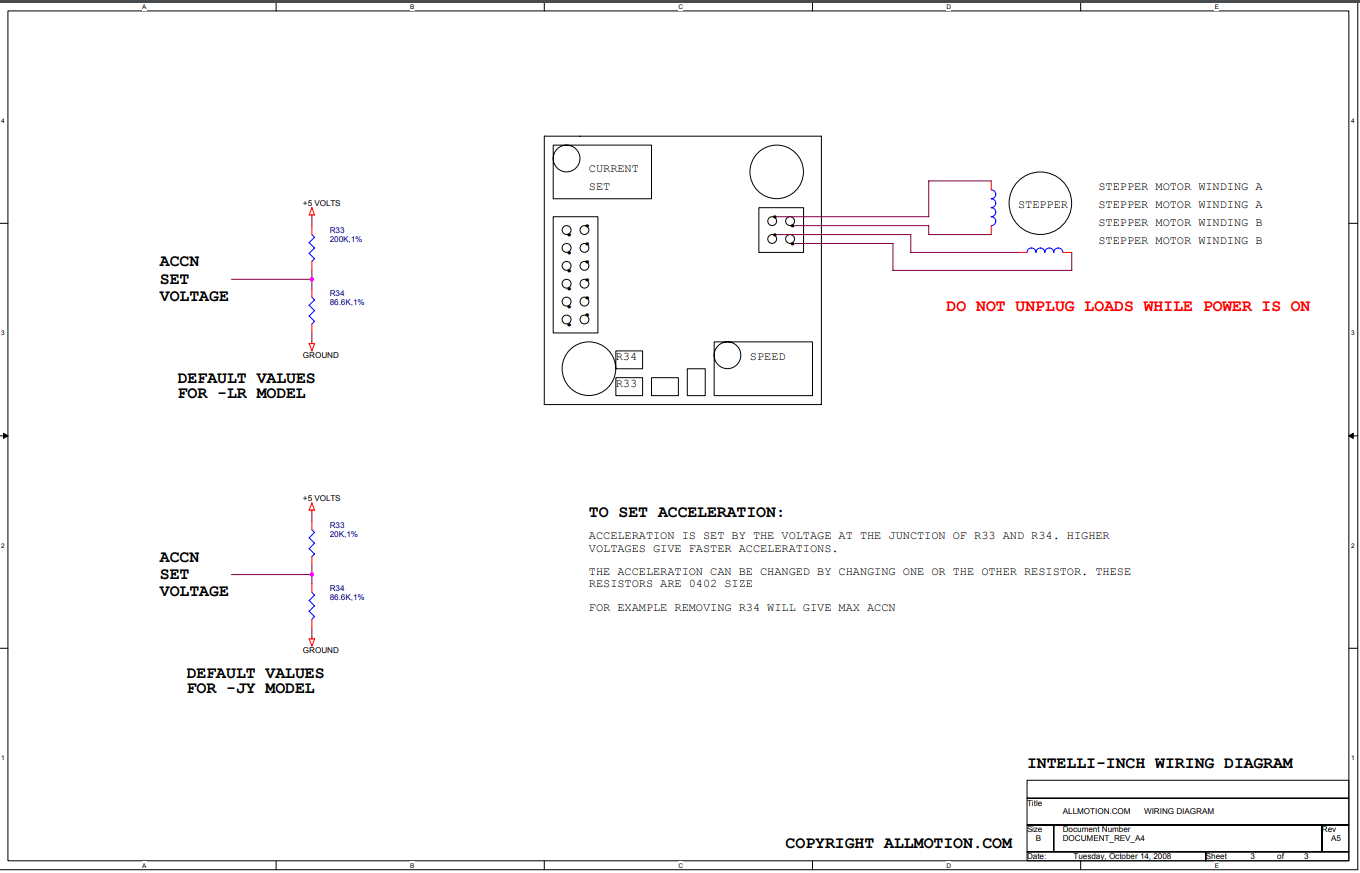

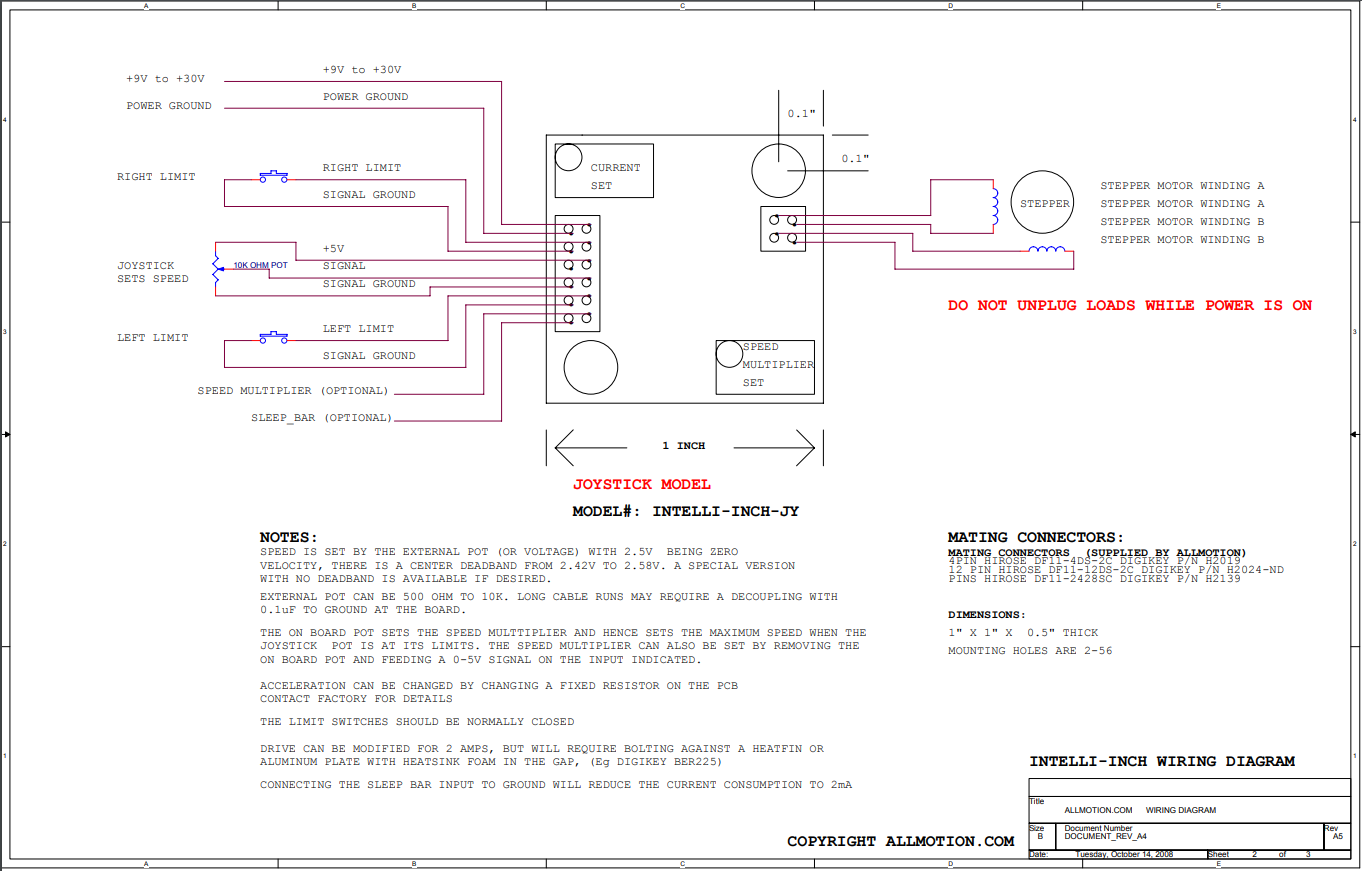

The inputs to this drive are JOYSTICK IN, LEFT LIMIT, RIGHT LIMIT, POWER (9V-30V) and GROUND. (There is no requirement for separate 5V power). The limit inputs accept 5V TTL level signals or can accept switch closures to ground. The Joystick is a 500 Ohm to 10K range Linear Taper Potentiometer.

Two on board potentiometers set the MOVE current and the SPEED Speed Multiplier. Current is automatically reduced to one quarter of the move current when not moving. A SLEEP_BAR Input when grounded reduces the current draw to less than 2mA, allowing the drive to be used in battery powered applications. The On board Speed Multiplier Pot sets the range of speeds allowed by the Joystick.

  • INTELLI-INCH-JY Stepper Control+Driver
  • SK-INT-JY Wire Kit

INTELLI-INCH-LR Starter Kit

Stepper Motor Control Starter Kits

Everything to get your Motor running within half an hour!

The Intelli-Inch Starter Kit combines one INTELLI-INCH-LR Stepper Motor Controller + Driver and all cables required for the first time user to get their Stepper Motor moving in less than half an hour. The user needs to provide only a power supply, stepper motor, and a PC.

Measuring just 1" X 1" , the Intelli-INCH Stepper Driver + Controller was designed to allow users to create miniature motion control solutions with no programming.

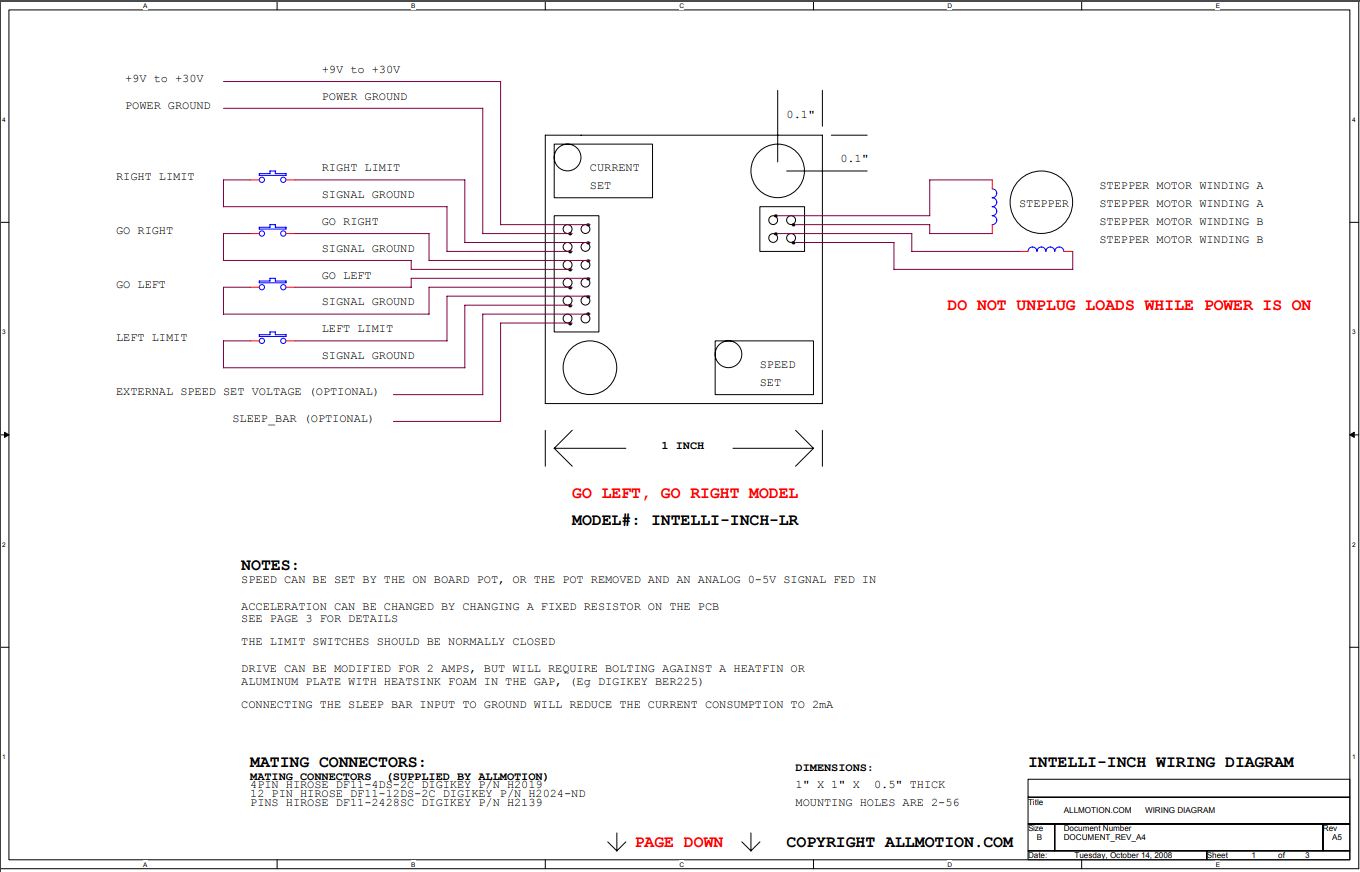

The inputs to this drive are GO LEFT, GO RIGHT, LEFT LIMIT, RIGHT LIMIT AND POWER (9V-30V) and GROUND. (There is no requirement for separate 5V power.) The inputs accept 5V TTL level signals, or can accept switch closures to ground.

Two on board potentiometers set the MOVE current and the SPEED. Current is automatically reduced to one third of the move current when not moving. A SLEEP_BAR Input when grounded reduces the current draw to less than 2mA, allowing the drive to be used in battery powered applications.

  • INTELLI-INCH-LR Stepper Control+Driver
  • SK-INT-LR Wire Kit
